Exterior Lighting System -- FX35/FX50
>>
System Description
>>
Active Adaptive Front-Lighting System
>>
System Diagram
System Diagram

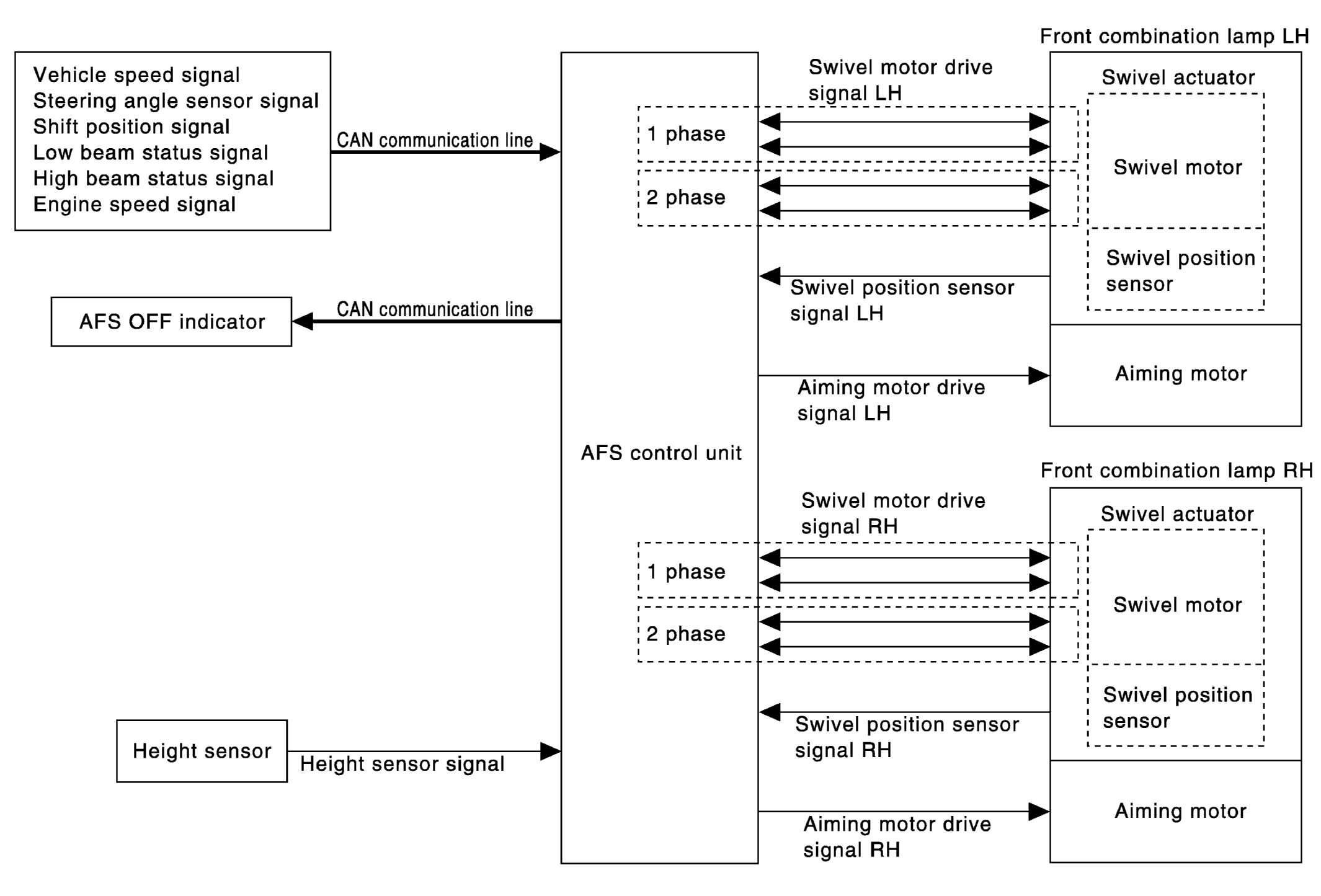

Fig 1: Active Adaptive Front-Lighting System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
