Aiming Adjustment Screw

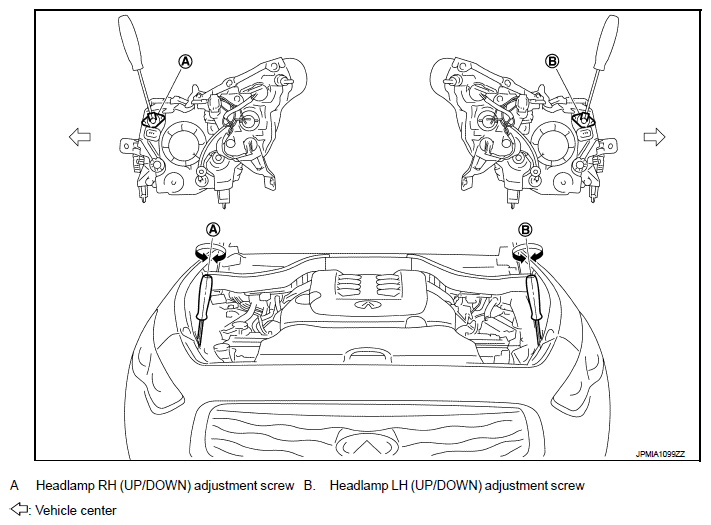

Fig 1: Identifying Aiming Adjustment Screw
G07229443Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: The figure is the vehicle without AFS. Each adjustment screw is applied to the vehicle with AFS.
SCREW DRIVER ROTATION CHART

Adjustment screw Screw driver rotation Facing direction
A Headlamp RH (UP/DOWN) Clockwise UP
Counterclockwise DOWN
B Headlamp LH (UP/DOWN) Clockwise UP
Counterclockwise DOWN
