Exterior Lighting System -- FX35/FX50
>>
Periodic Maintenance
>>
Front Fog Lamp Aiming Adjustment
>>
Description
>>
Aiming Adjustment Screw
Aiming Adjustment Screw
Turn the aiming adjusting screw for adjustment.

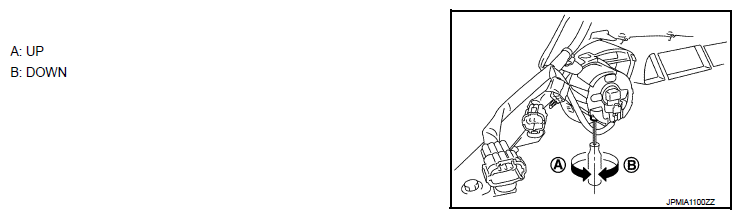

Fig 1: Turning Aiming Adjusting Screw
Courtesy of NISSAN MOTOR CO., U.S.A.
For the position and direction of the adjusting screw, refer to the figure.
NOTE:
A screwdriver or hexagonal wrench [6 mm (0.24 in)] can be used for adjustment.
