Wiring Diagram - HEADLAMP -

Without auto matic back door system

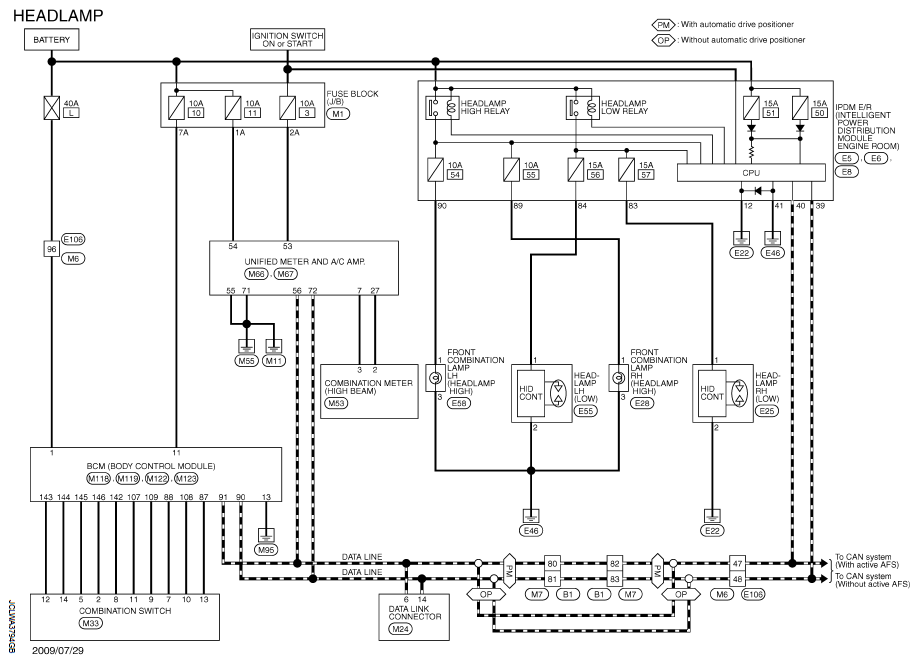

Fig 1: Headlamp (Without Auto Matic Back Door System) - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

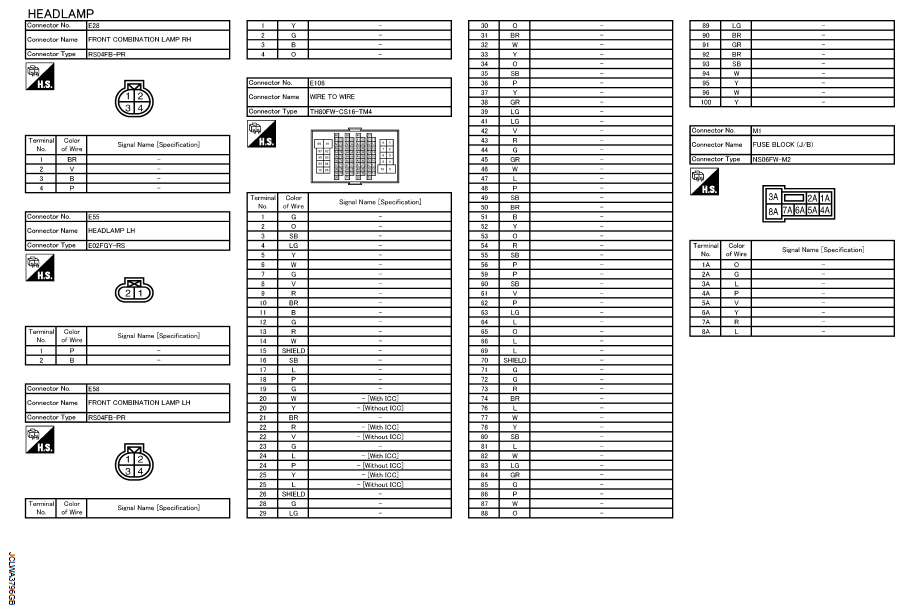

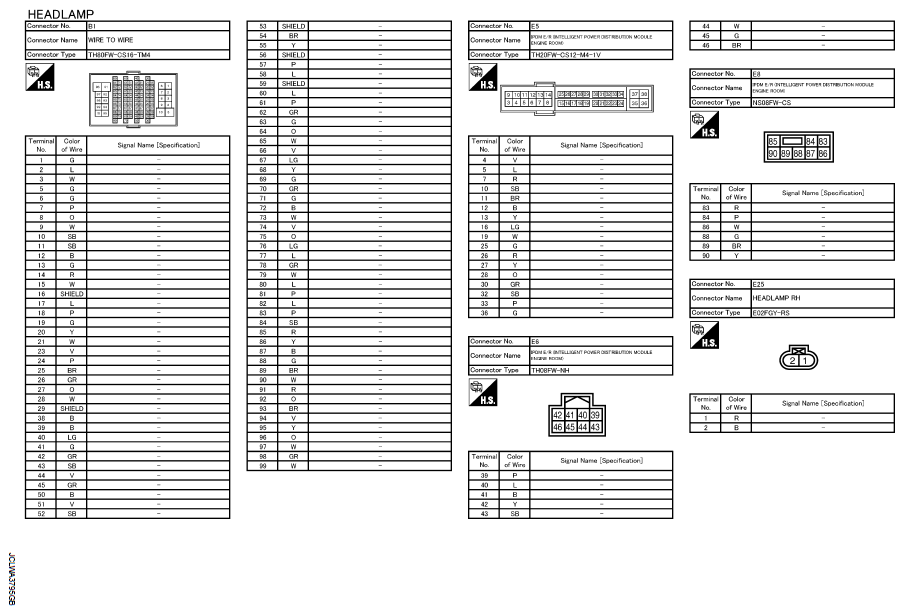

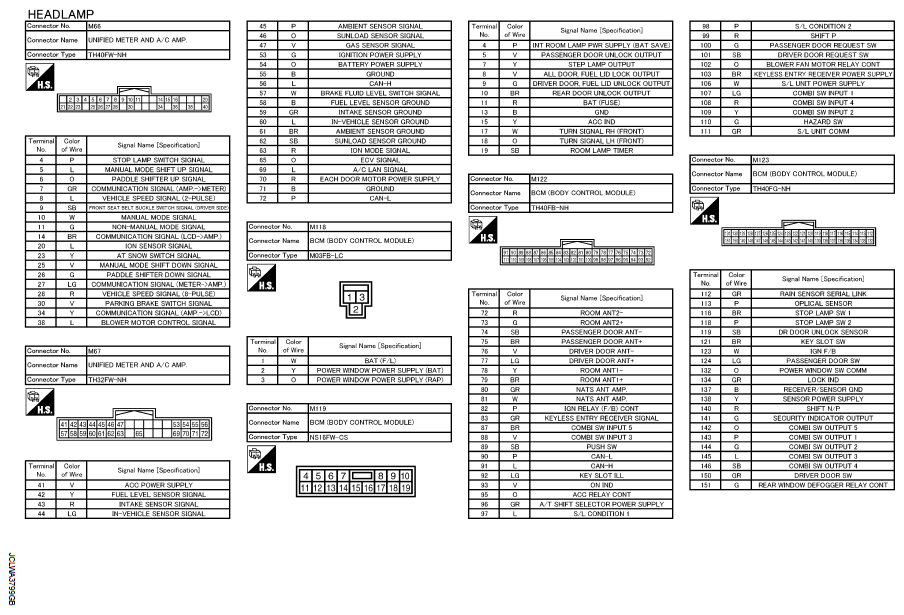

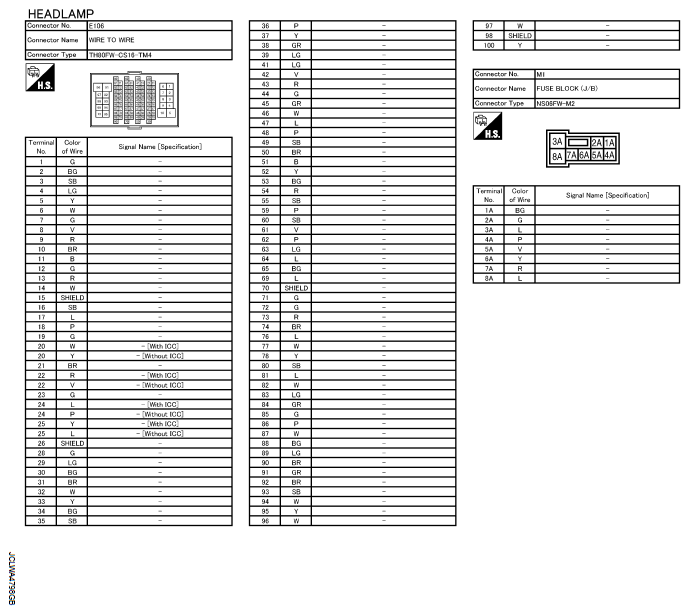

Fig 2: Identifying Headlamp Connectors Terminal Identification (Without Auto Matic Back Door System) (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

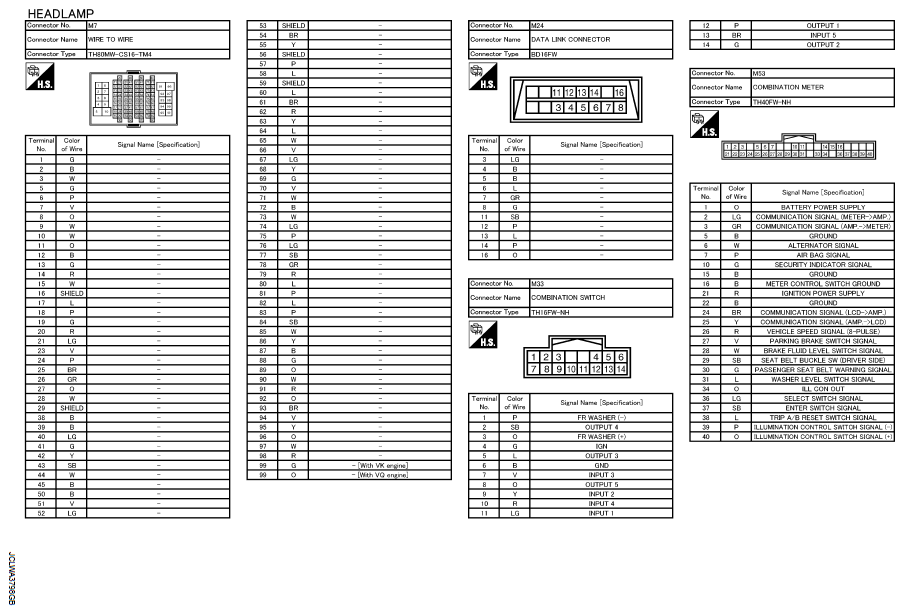

Fig 3: Identifying Headlamp Connectors Terminal Identification (Without Auto Matic Back Door System) (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

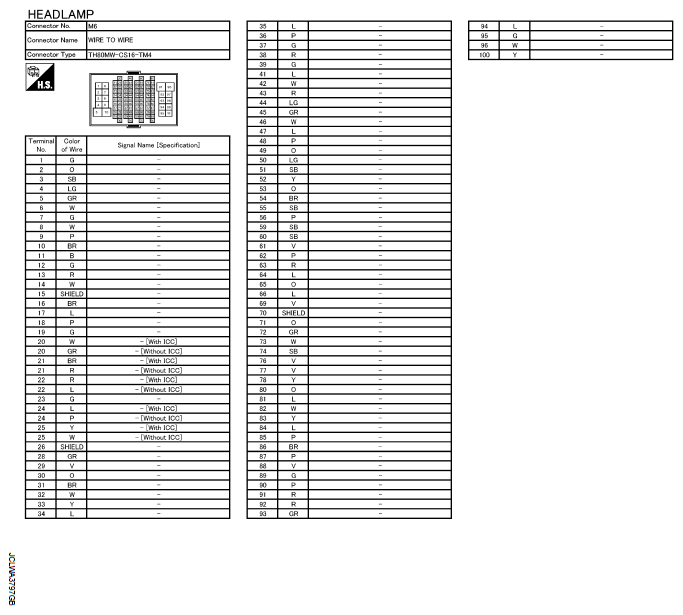

Fig 4: Identifying Headlamp Connectors Terminal Identification (Without Auto Matic Back Door System) (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 5: Identifying Headlamp Connectors Terminal Identification (Without Auto Matic Back Door System) (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Identifying Headlamp Connectors Terminal Identification (Without Auto Matic Back Door System) (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

With auto matic back door system

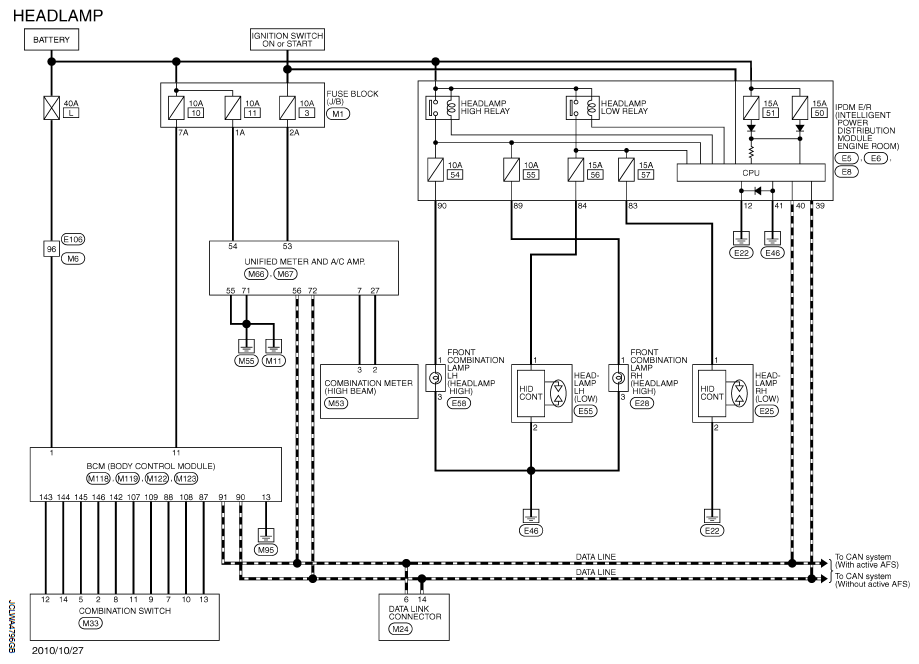

Fig 7: Headlamp (With Auto Matic Back Door System) - Wiring Diagram

Courtesy of NISSAN MOTOR CO., U.S.A.

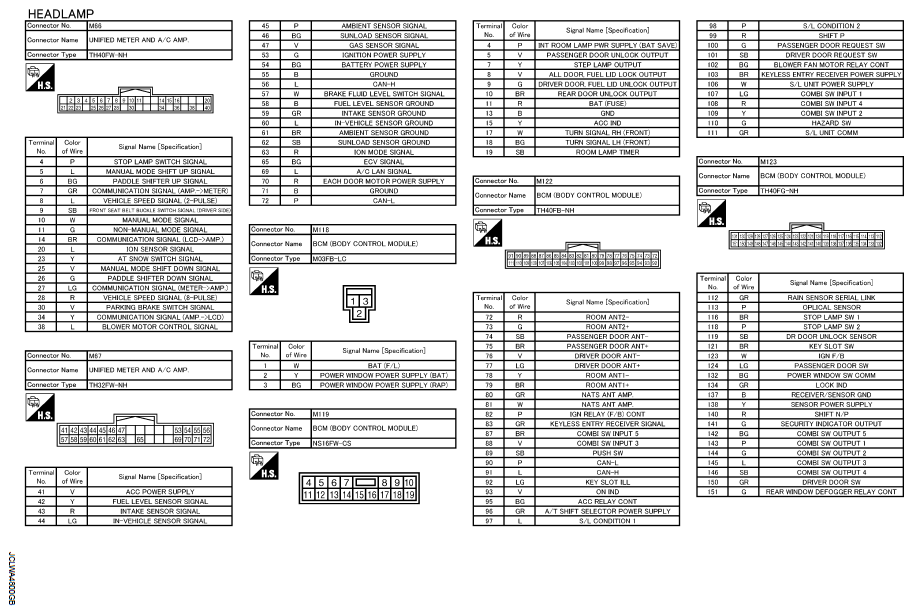

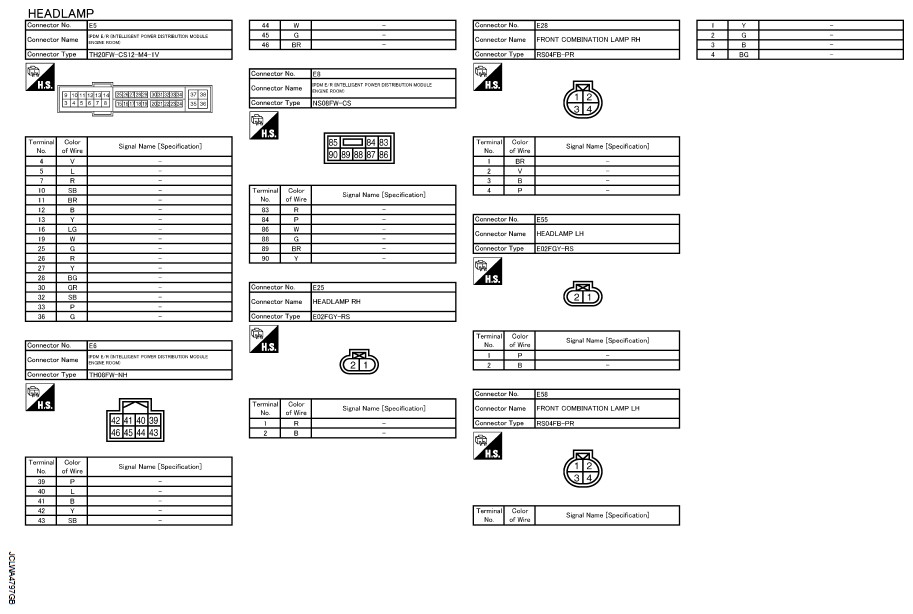

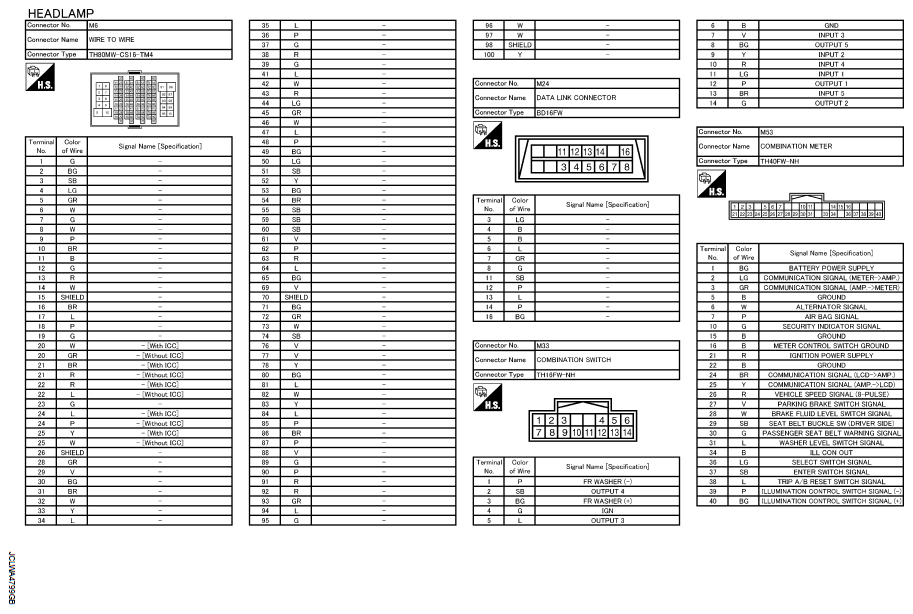

Fig 8: Identifying Headlamp Connectors Terminal Identification (With Auto Matic Back Door System) (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Headlamp Connectors Terminal Identification (With Auto Matic Back Door System) (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Identifying Headlamp Connectors Terminal Identification (With Auto Matic Back Door System) (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Identifying Headlamp Connectors Terminal Identification (With Auto Matic Back Door System) (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
