METER ILLUMINATION CONTROL : Component Parts Location

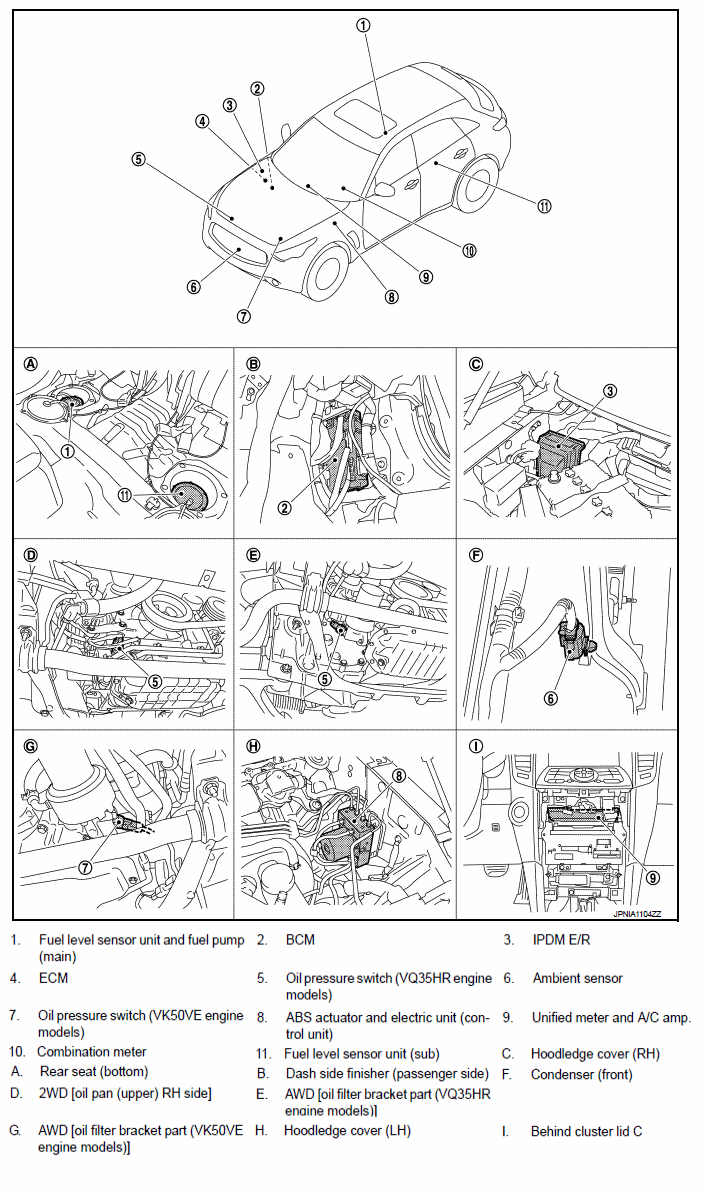

Fig 1: Identifying Meter Illumination Control Component Parts Location

G07232454

Courtesy of NISSAN MOTOR CO., U.S.A.
