METER EFFECT FUNCTION : Component Parts Location

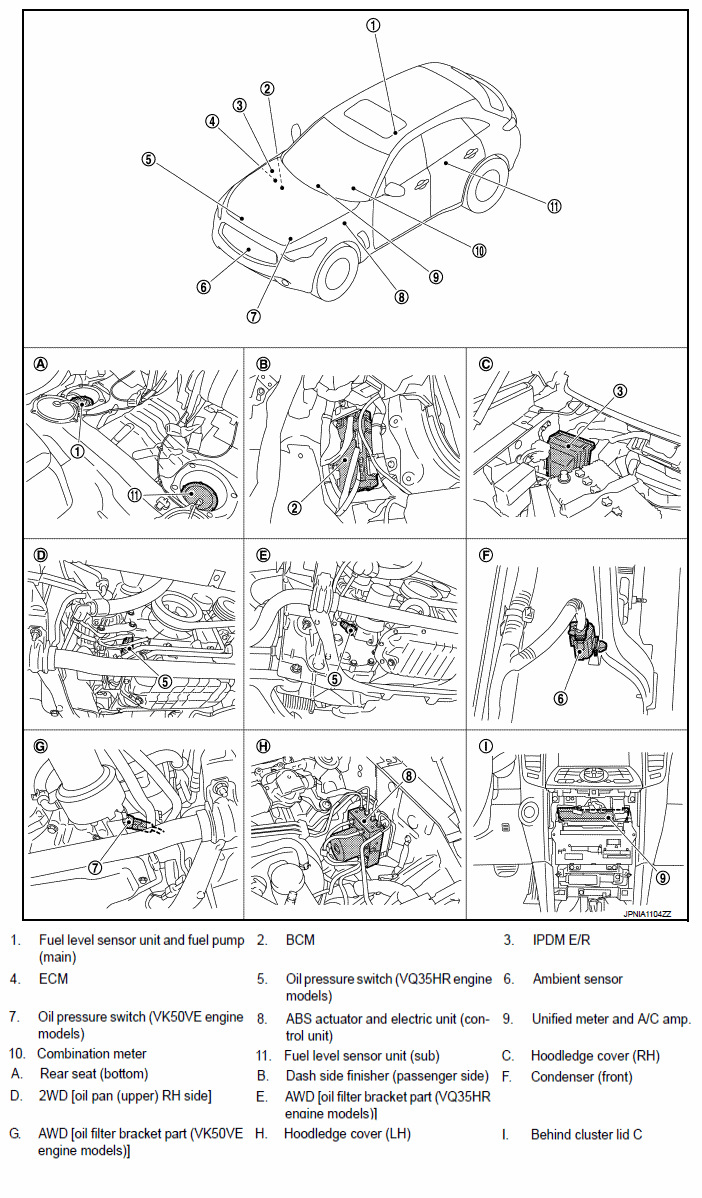

Fig 1: Identifying Meter Effect Function Component Parts Location

G07232456

Courtesy of NISSAN MOTOR CO., U.S.A.
