Removal and Installation: Removal

1. Remove selector lever knob. Refer to "REMOVAL AND INSTALLATION ".
2. Remove console upper finisher.
   1. Open the console lid.
   2. Remove console upper finisher (1) fixing pawls with remover tool (A).
   3. Pull back console upper finisher.

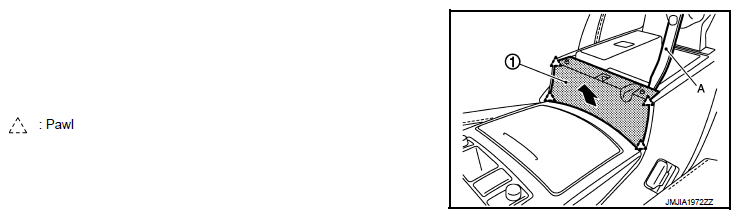

   Fig 1: Removing Console Upper Finisher Fixing Pawls Using Remover Tool

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Remove console finisher assembly.
   1. Remove console finisher assembly (1) fixing clips with remover tool (A).
   2. Pull up console finisher assembly.
   3. Disconnect harness connector.

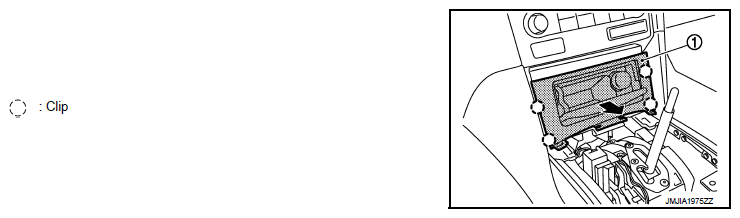

   Fig 2: Removing Console Finisher Assembly Fixing Clips Using Remover Tool

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Remove console switch finisher.
   1. Remove console switch finisher (1) fixing screws (A).
   2. Pull up console switch finisher.
   3. Disconnect harness connectors.

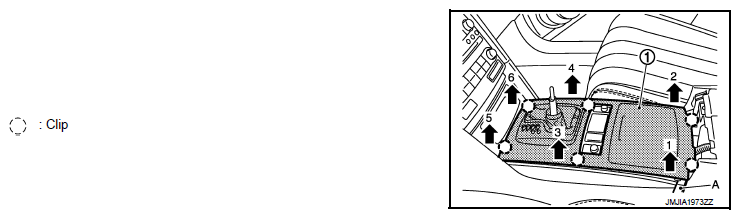

   Fig 3: Pulling Up Console Switch Finisher

   Courtesy of NISSAN MOTOR CO., U.S.A.
5. Remove console pocket assembly.
   1. Pull back console pocket assembly (1), and disengage clips.
   2. Disconnect harness connector.
   Fig 4: Pulling Console Pocket Assembly

   Courtesy of NISSAN MOTOR CO., U.S.A.
6. Disconnect USB connector harness connector. Refer to "CONSOLE POWER SOCKET : REMOVAL AND INSTALLATION ".
7. Disconnect auxiliary input jacks harness connector. Refer to "REMOVAL AND INSTALLATION ".
8. Disconnect console power socket harness connector. Refer to "REMOVAL AND INSTALLATION ".
9. Remove center console assembly fixing screws (A).
   Fig 5: Identifying Center Console Assembly Fixing Screws

   Courtesy of NISSAN MOTOR CO., U.S.A.
10. Put front seat to front must position.
11. Remove console rear finisher.
    1. Pull back the console rear finisher (1) with remover tool (A).
    2. Disconnect harness connectors.

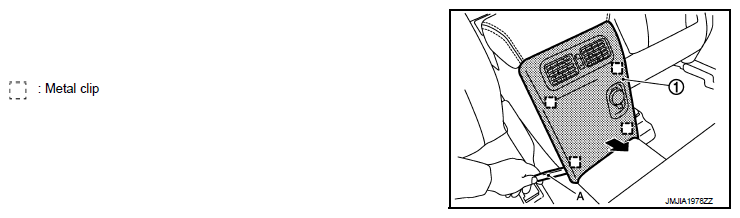

    Fig 6: Pulling Console Rear Finisher Using Remover Tool

    Courtesy of NISSAN MOTOR CO., U.S.A.
12. Remove rear ventilator duct (1).

    Refer to "REAR VENTILATOR DUCT 1 : REMOVAL AND INSTALLATION ".

13. Remove center console fixing screws (A).
    Fig 7: Identifying Rear Ventilator Duct And Console Fixing Screws

    Courtesy of NISSAN MOTOR CO., U.S.A.
14. Remove center console assembly.

Pull back and lift up center console assembly (1).

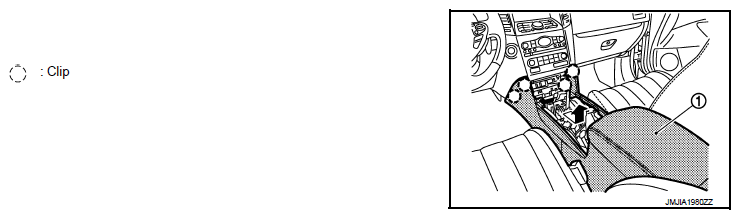

Fig 8: Lifting Center Console Assembly
