Instrument Panel System -- FX35/FX50
>>
Removal And Installation
>>
Center Console Assembly
>>
Exploded View
Exploded View

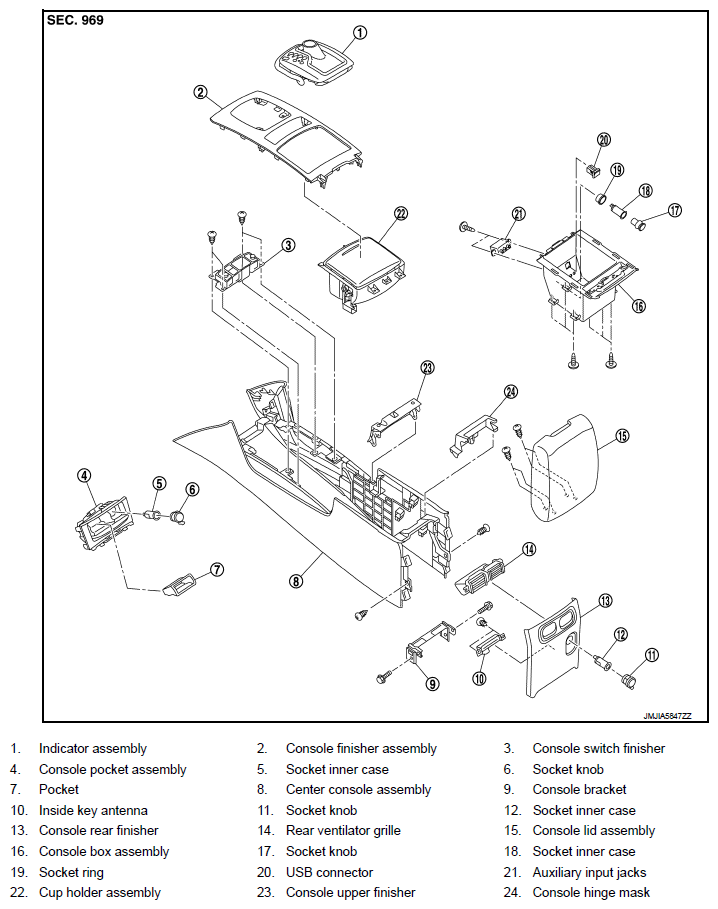

Fig 1: Exploded View Of Center Console Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
