Disassembly and Assembly: Disassembly

  1. Remove center console assembly. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove console lid assembly.
    1. Open the console lid.
    2. Remove console hinge mask (1) fixing pawls with remover tool (A).

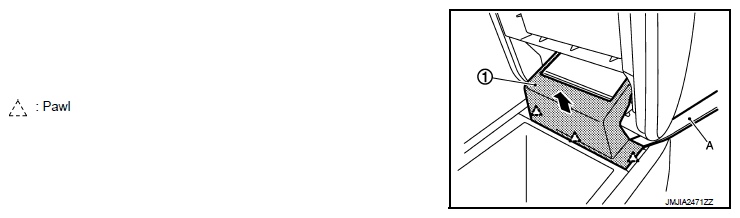

      Fig 1: Removing Console Hinge Mask Fixing Pawls Using Remover Tool
      G07234115Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Remove console lid assembly (1) fixing screws (A), and then remove console lid assembly.
    Fig 2: Identifying Console Lid Assembly And Fixing Screws
    G07234116Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove console box assembly.
    1. Remove console pad LH.
      • Remove console pad LH (1) fixing screws (A).
      • Pull toward the arrow direction.
      Fig 3: Identifying Console Pad And Fixing Screws
      G05984843Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Remove console pad RH.
      • Remove console pad RH (1) fixing screws (A).
      • Pull toward the arrow direction.
      • Remove console rear bracket (2).
      • Remove console box assembly (3).
Fig 4: Identifying Console Pad Fixing Screws, Console Rear Bracket And Box Assembly
G05984844Courtesy of NISSAN MOTOR CO., U.S.A.
