Wiring Diagram - METER -

Fig 1: Meter - Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Meter - Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Meter - Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

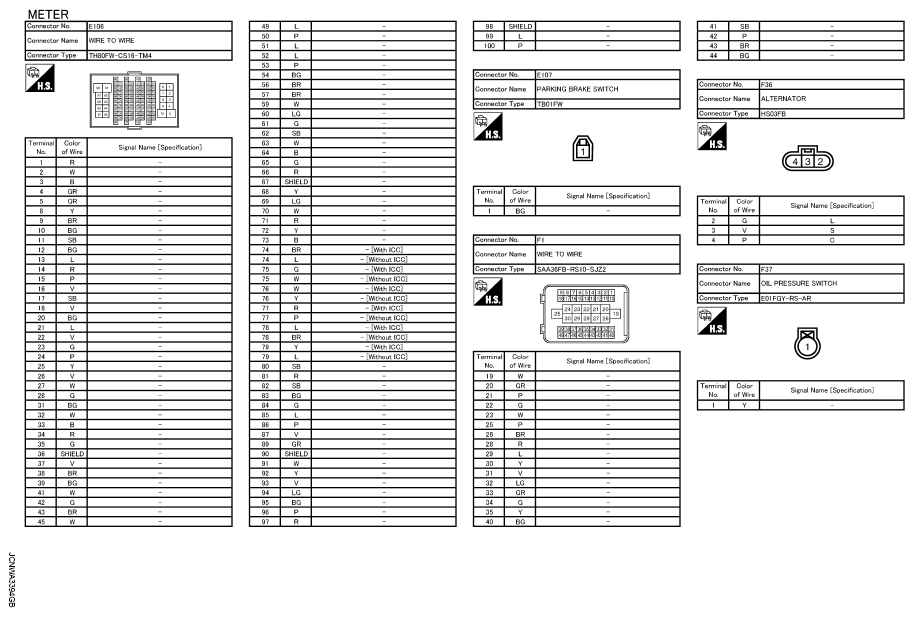

Fig 4: Identifying Meter Connectors Terminal Identification (1 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

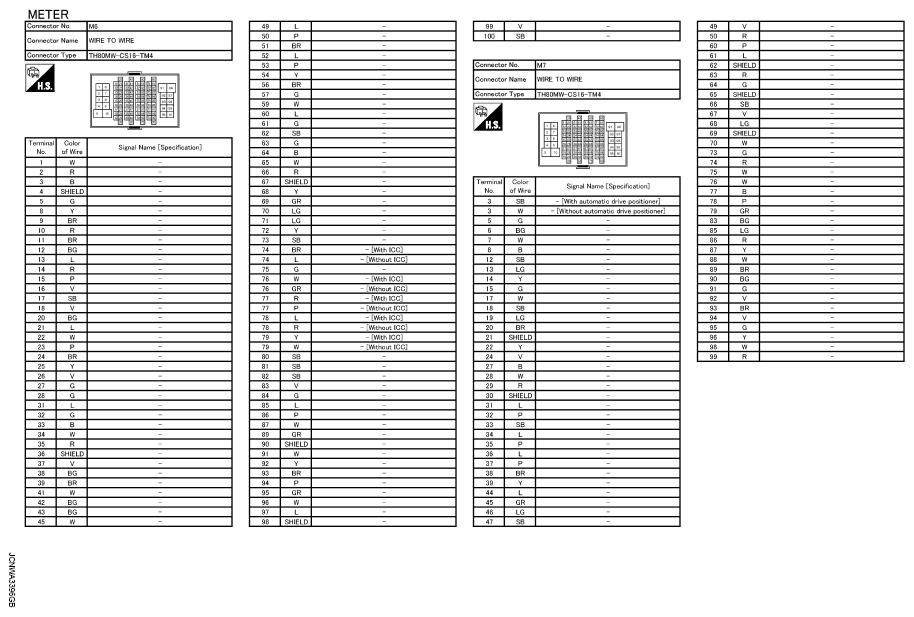

Fig 5: Identifying Meter Connectors Terminal Identification (2 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

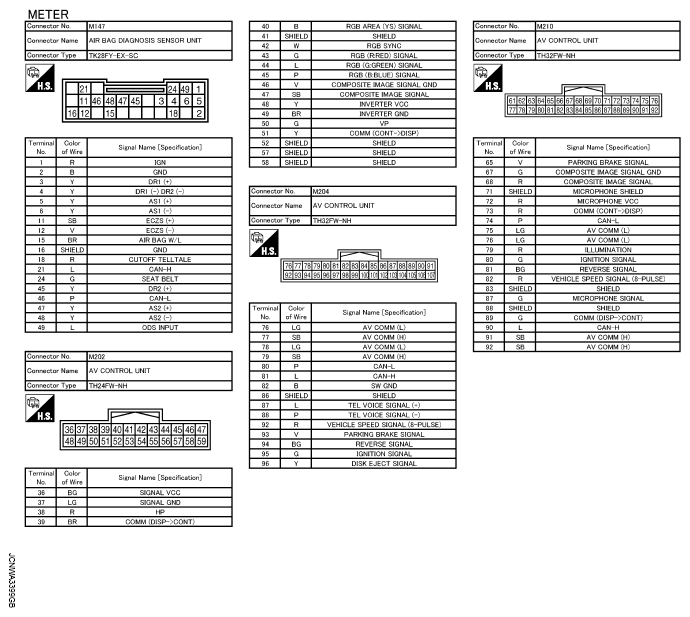

Fig 6: Identifying Meter Connectors Terminal Identification (3 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

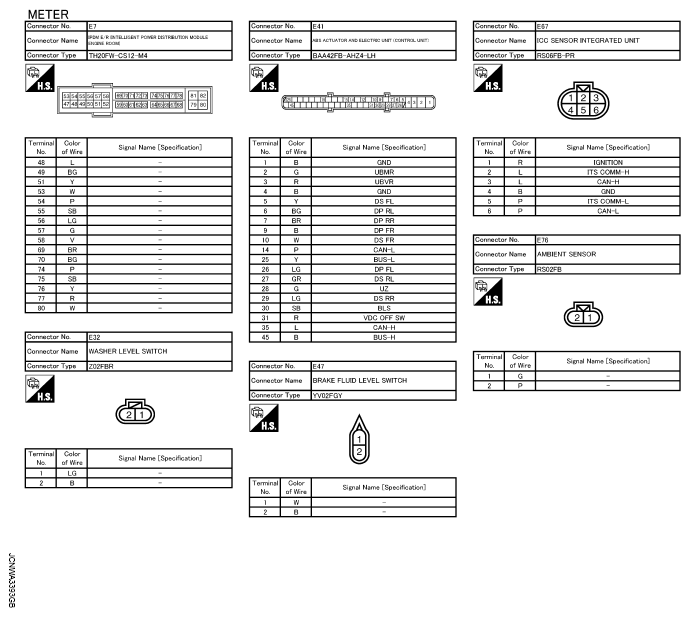

Fig 7: Identifying Meter Connectors Terminal Identification (4 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

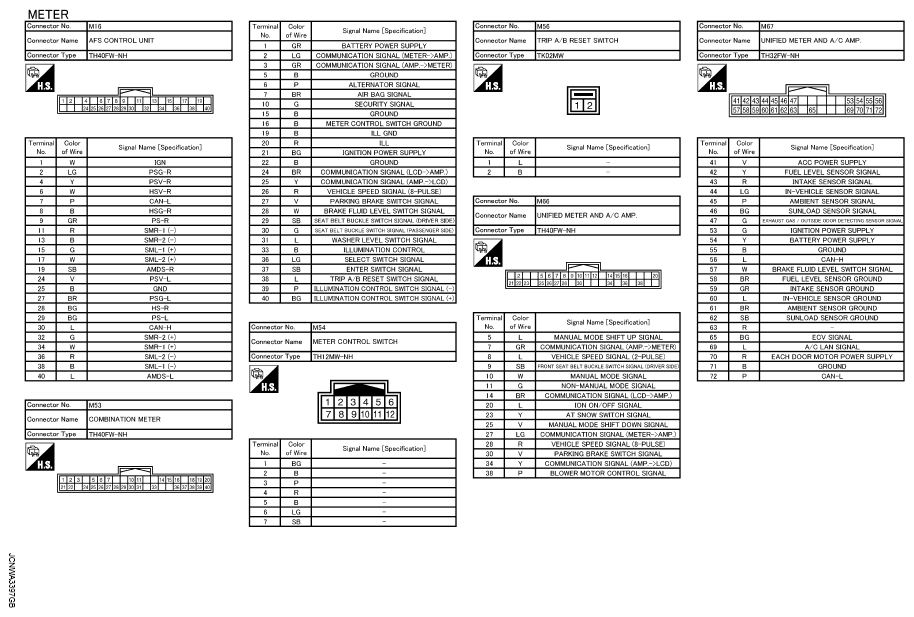

Fig 8: Identifying Meter Connectors Terminal Identification (5 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

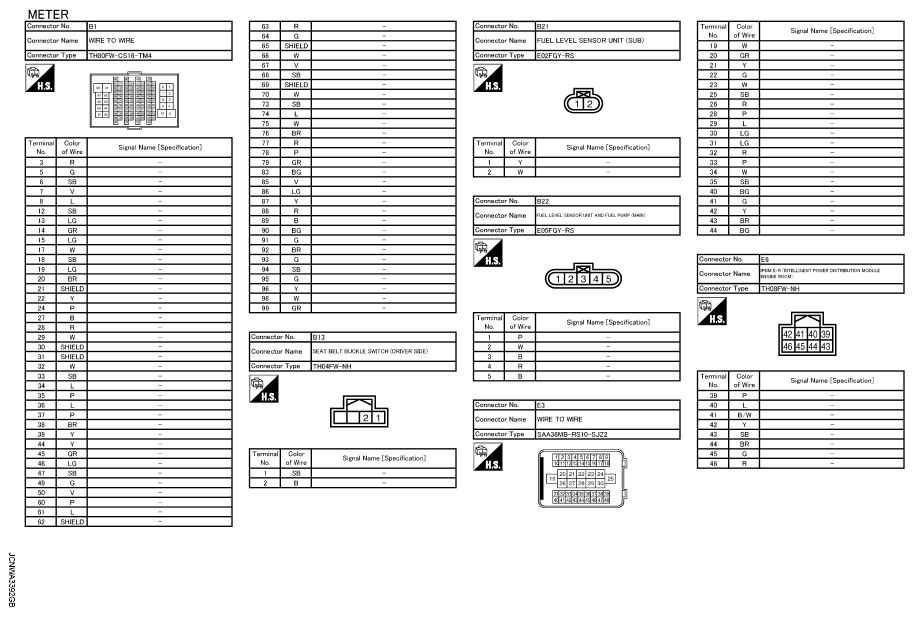

Fig 9: Identifying Meter Connectors Terminal Identification (6 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

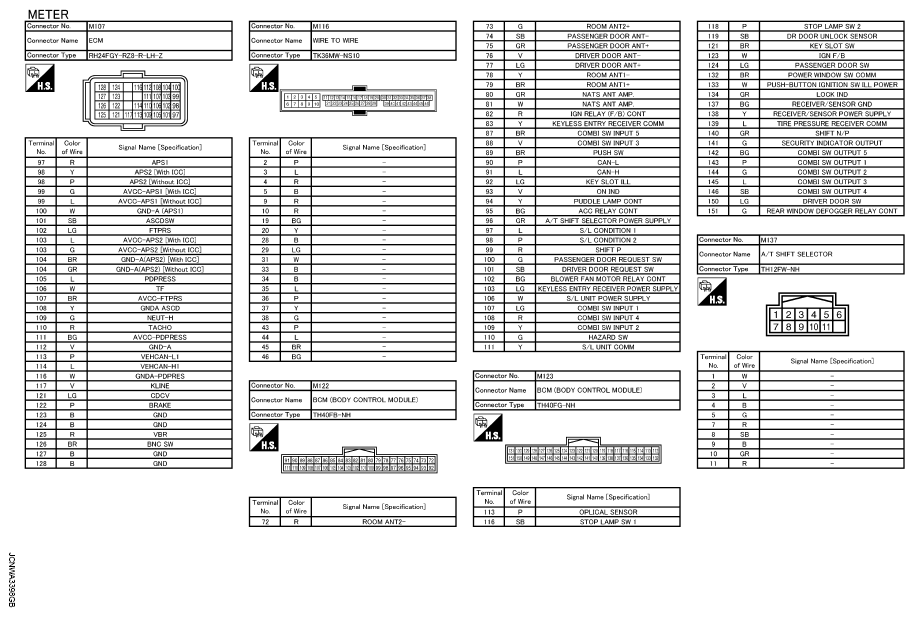

Fig 10: Identifying Meter Connectors Terminal Identification (7 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.

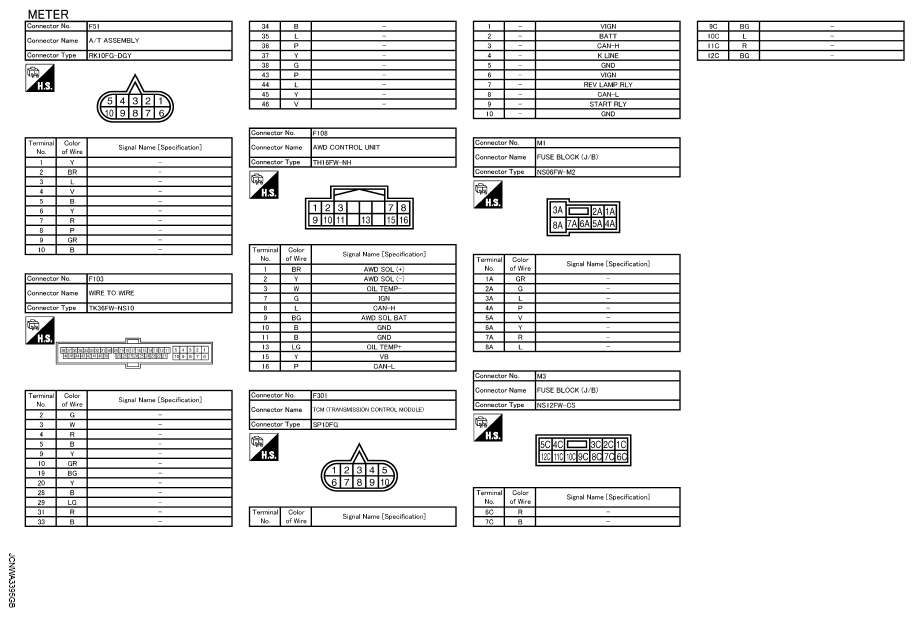

Fig 11: Identifying Meter Connectors Terminal Identification (8 Of 8)

Courtesy of NISSAN MOTOR CO., U.S.A.
