Infiniti
>>
2011
>>
EX35 Base, RWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Meter, Warning Lamp & Indicator
>>
DTC/Circuit Diagnosis
>>
Compass
>>
Wiring Diagram - COMPASS -
Wiring Diagram - COMPASS -

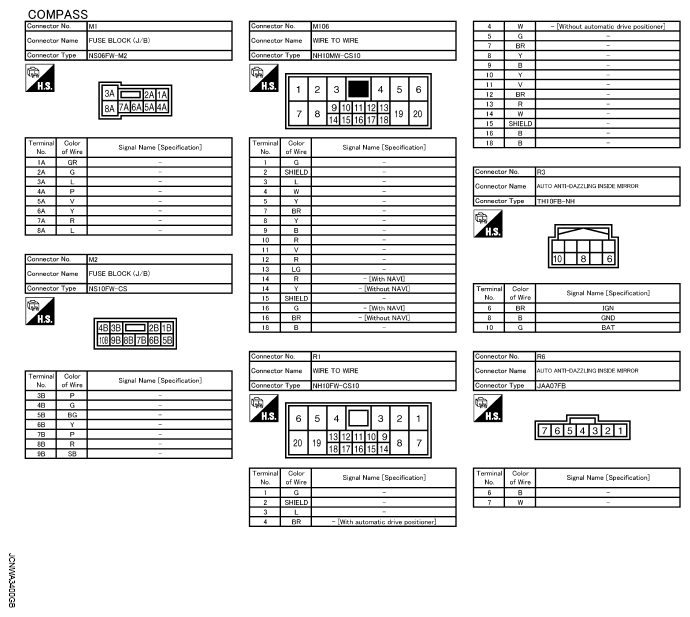

Fig 1: Compass - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Compass Connectors Terminal Identification
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
