Exploded View: Disassembly

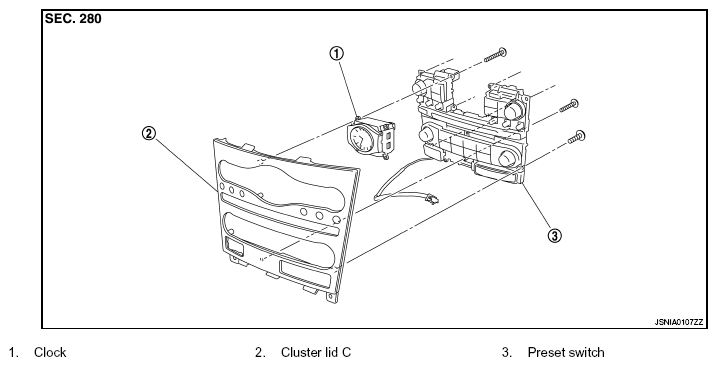

Fig 1: Identifying Clock, Cluster Lid C And Preset Switch

G06296193

Courtesy of NISSAN MOTOR CO., U.S.A.
