Wiring Diagram - IPDM E/R -

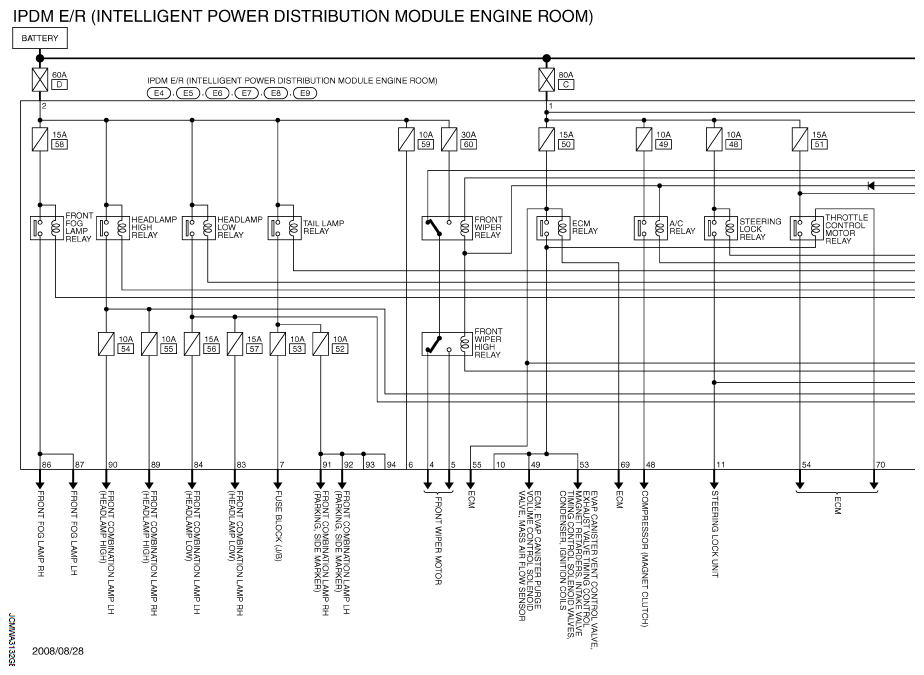

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room) - Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

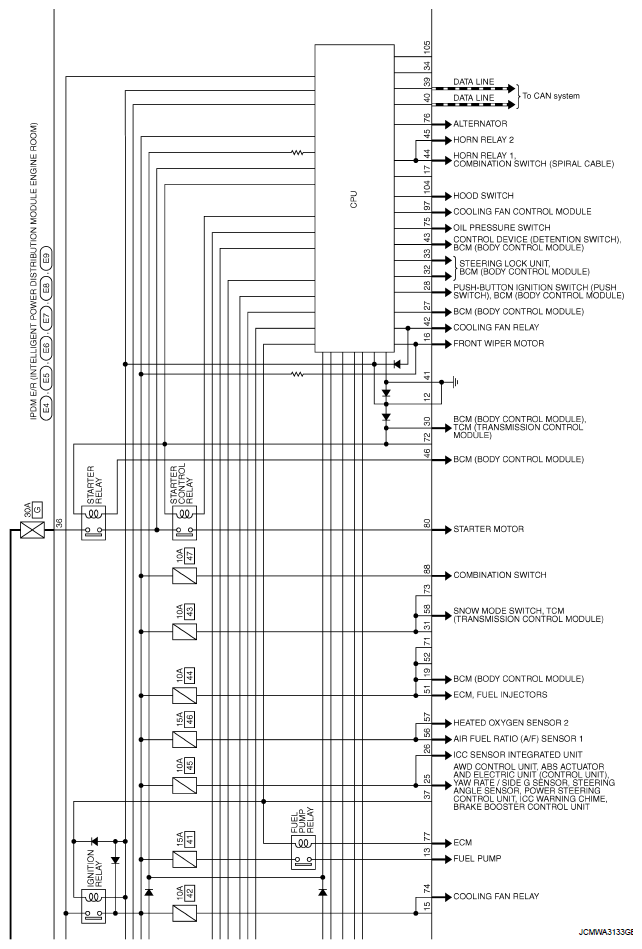

Fig 2: IPDM E/R (Intelligent Power Distribution Module Engine Room) - Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: IPDM E/R (Intelligent Power Distribution Module Engine Room) - Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

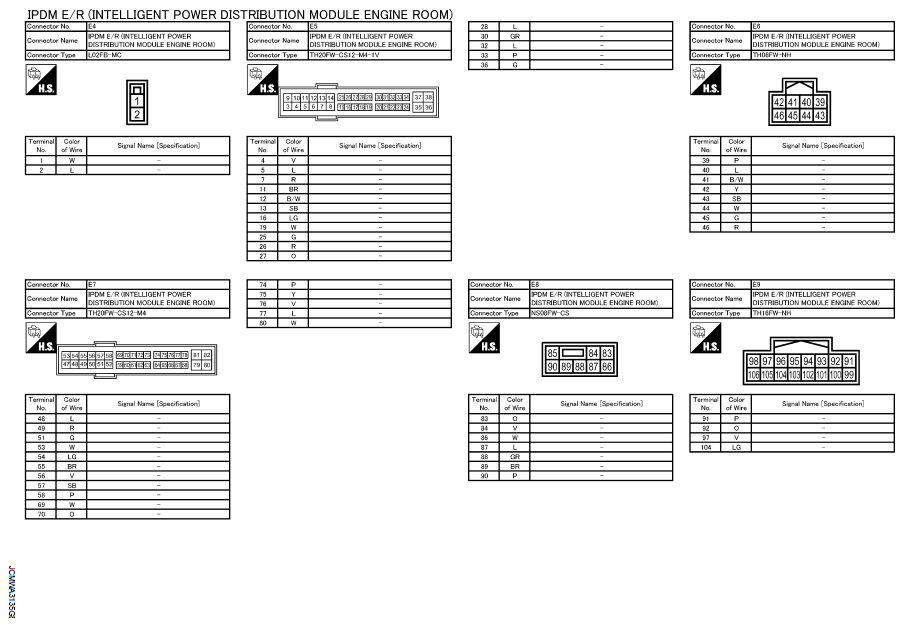

Fig 4: Identifying IPDM E/R (Intelligent Power Distribution Module Engine Room) Connectors

Courtesy of NISSAN MOTOR CO., U.S.A.
