Wiring Diagram - METER -

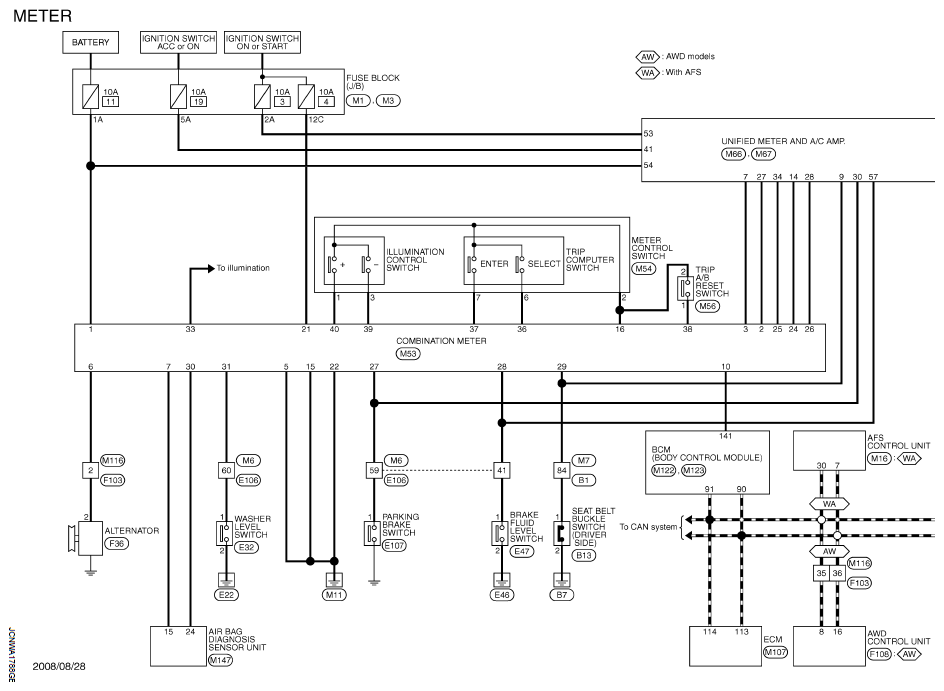

Fig 1: Meter - Wiring Diagram (1 Of 3)

G06296152

Courtesy of NISSAN MOTOR CO., U.S.A.

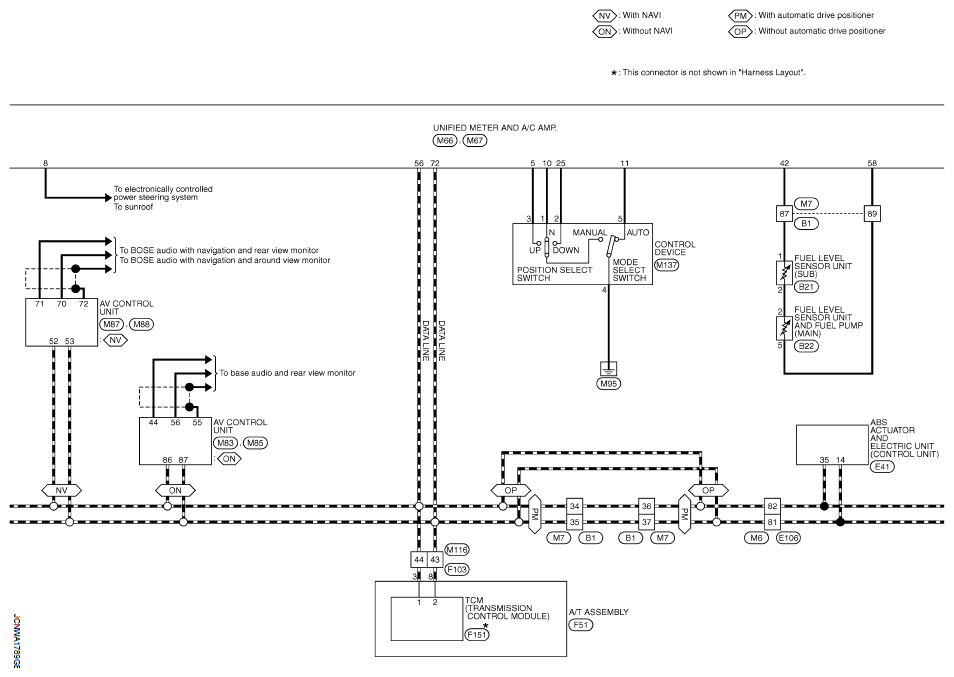

Fig 2: Meter - Wiring Diagram (2 Of 3)

G06296153

Courtesy of NISSAN MOTOR CO., U.S.A.

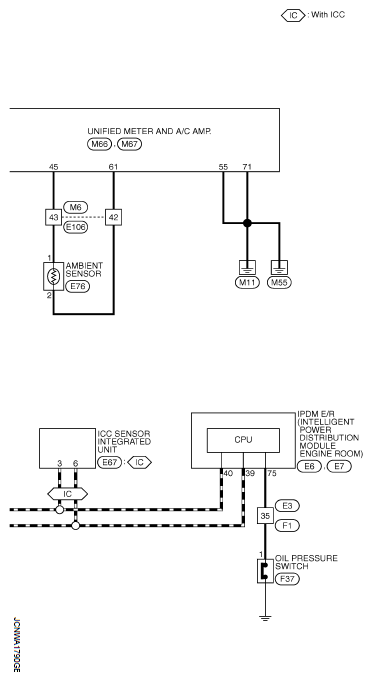

Fig 3: Meter - Wiring Diagram (3 Of 3)

G06296154

Courtesy of NISSAN MOTOR CO., U.S.A.

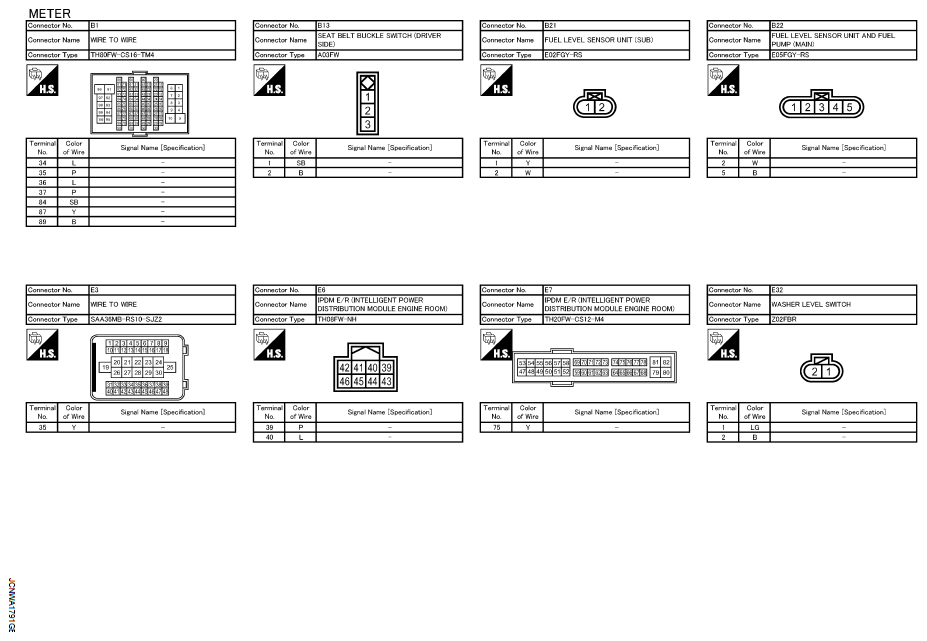

Fig 4: Identifying Meter Connectors (1 Of 6)

G06296155

Courtesy of NISSAN MOTOR CO., U.S.A.

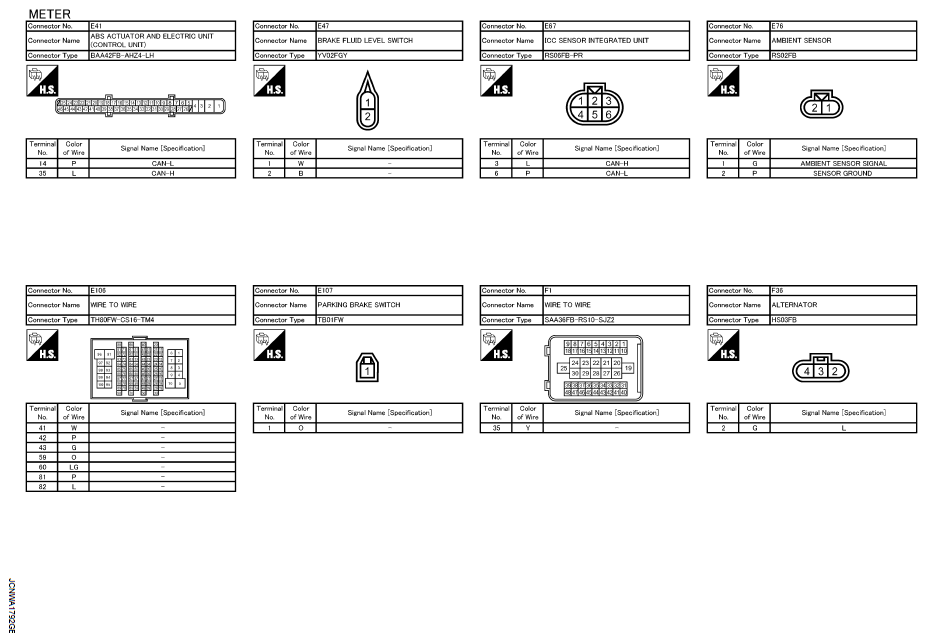

Fig 5: Identifying Meter Connectors (2 Of 6)

G06296156

Courtesy of NISSAN MOTOR CO., U.S.A.

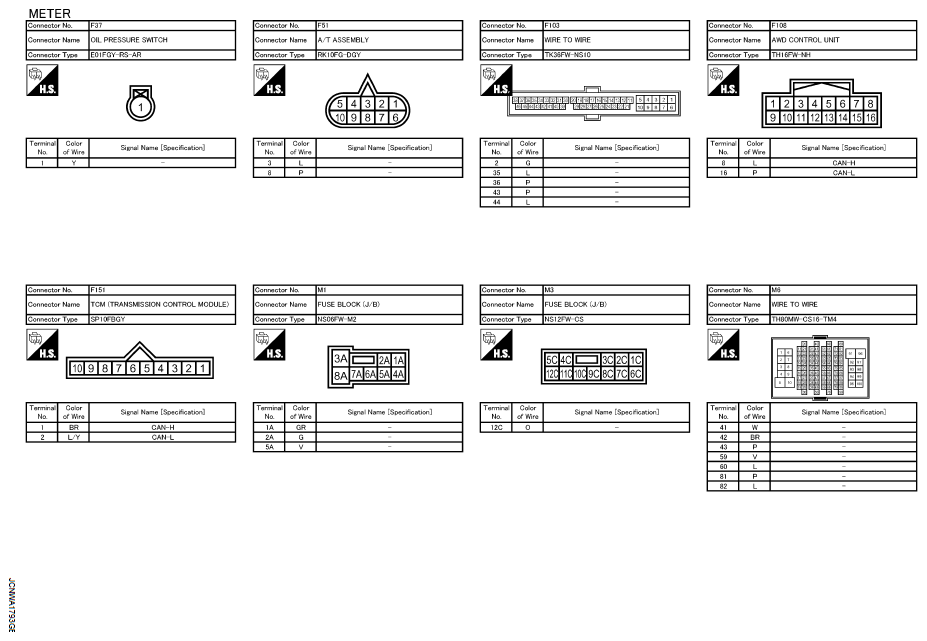

Fig 6: Identifying Meter Connectors (3 Of 6)

G06296157

Courtesy of NISSAN MOTOR CO., U.S.A.

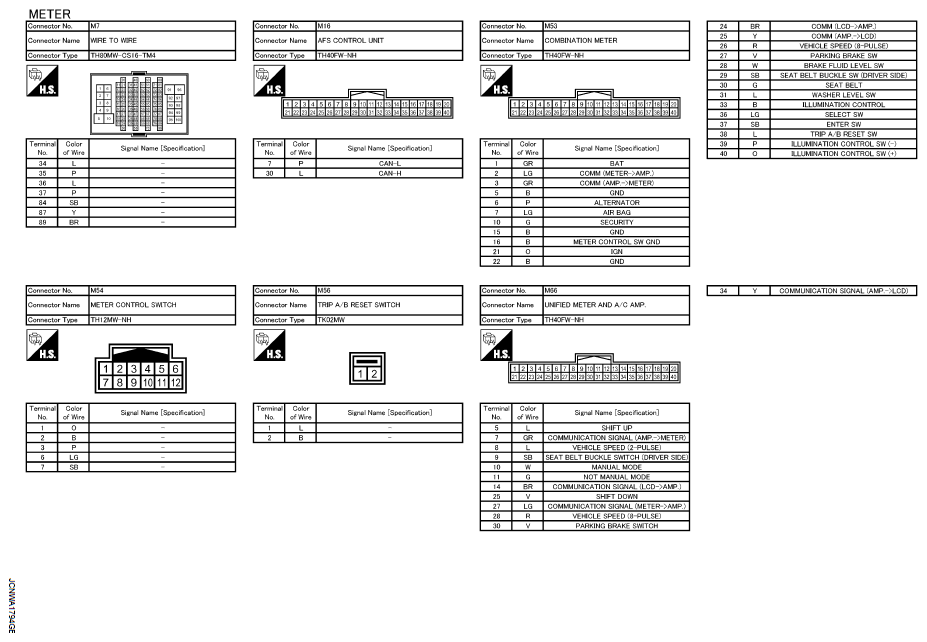

Fig 7: Identifying Meter Connectors (4 Of 6)

G06296158

Courtesy of NISSAN MOTOR CO., U.S.A.

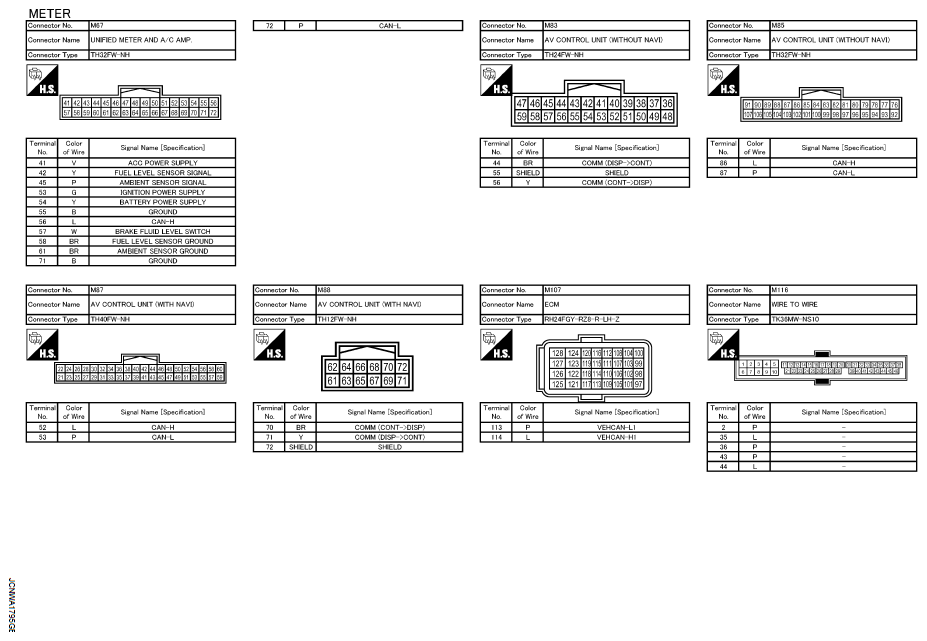

Fig 8: Identifying Meter Connectors (5 Of 6)

G06296159

Courtesy of NISSAN MOTOR CO., U.S.A.

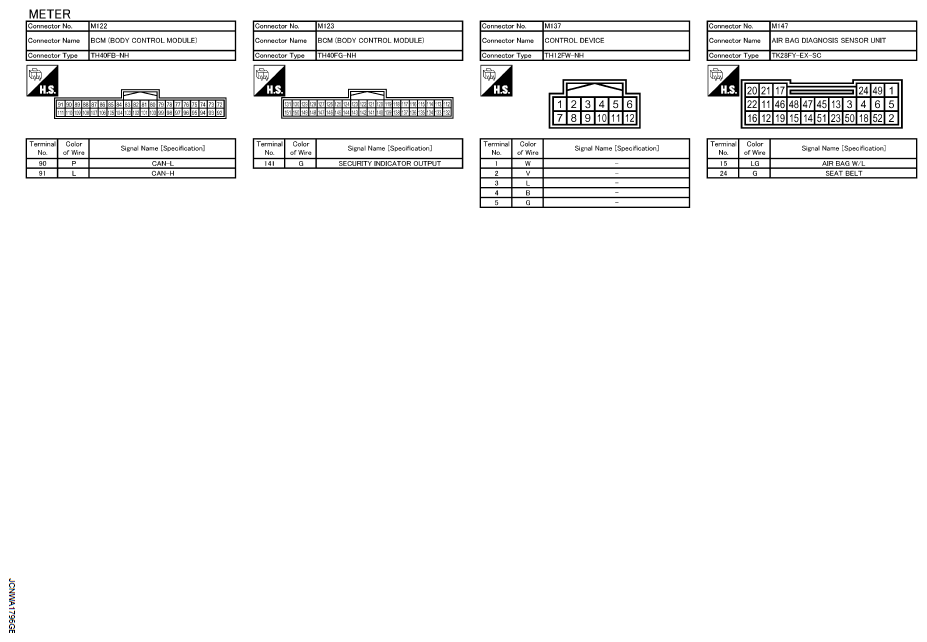

Fig 9: Identifying Meter Connectors (6 Of 6)

G06296160

Courtesy of NISSAN MOTOR CO., U.S.A.
