Compass
>>
Wiring Diagram - COMPASS -
Wiring Diagram - COMPASS -

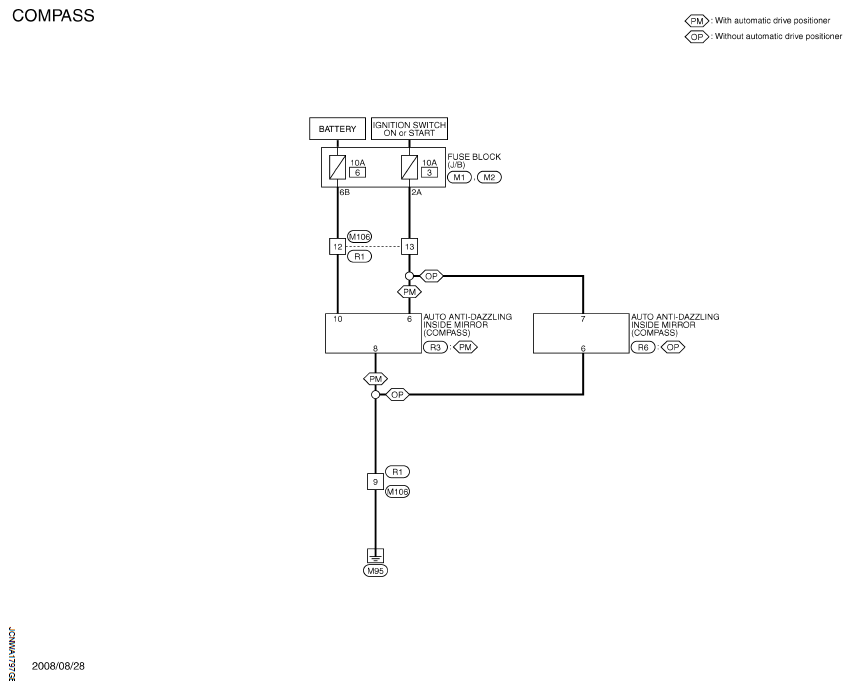

Fig 1: Compass - Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.

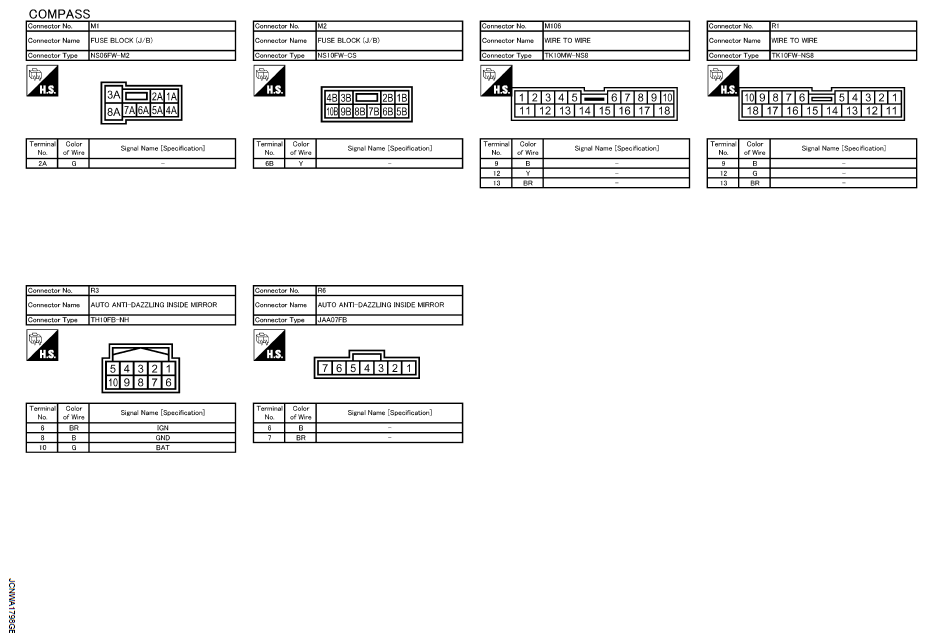

Fig 2: Identifying Compass Connectors
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
