Antenna Feeder
>>
Harness Layout
Harness Layout

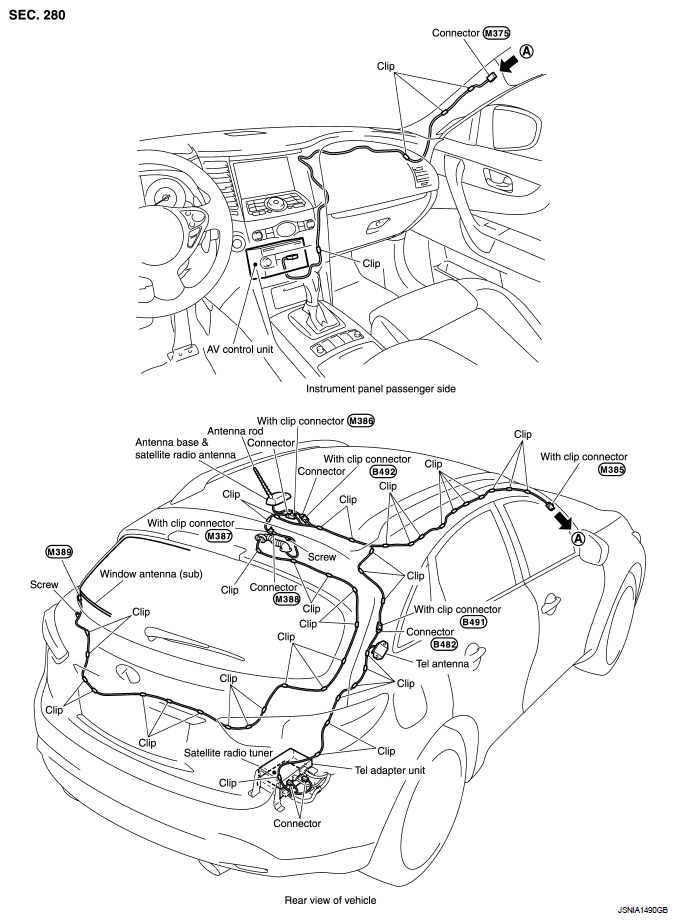

Fig 1: Identifying Antenna Feeder Harness Layout
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
