Wiring Diagram - IPDM E/R -

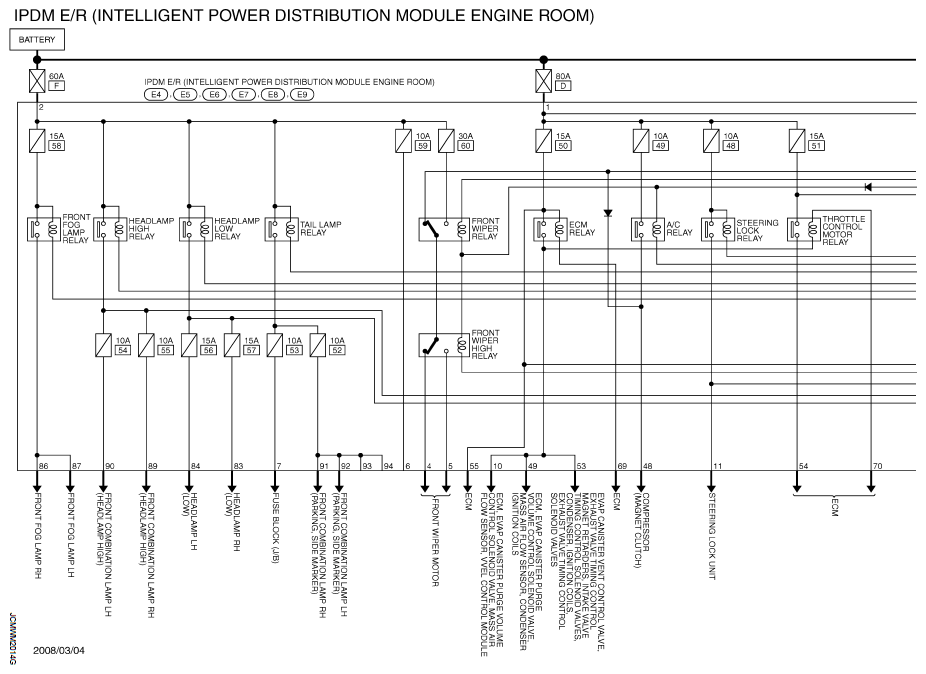

Fig 1: IPDM E/R (Intelligent Power Distribution Module Engine Room) - Wiring Diagram (1 Of 3)
G05976349Courtesy of NISSAN DIESEL MOTOR CO., LTD.

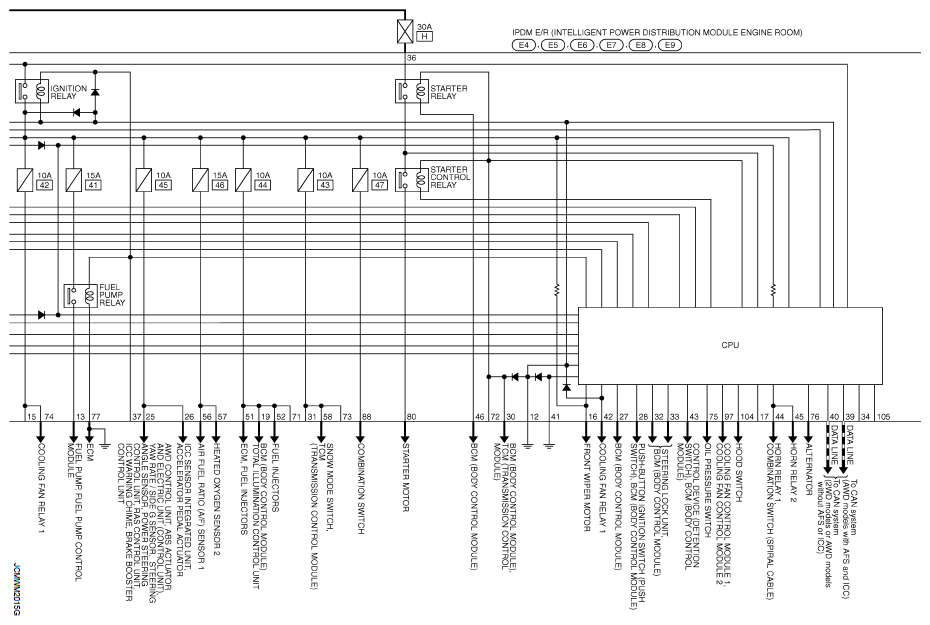

Fig 2: IPDM E/R (Intelligent Power Distribution Module Engine Room) - Wiring Diagram (2 Of 3)
G05976350Courtesy of NISSAN DIESEL MOTOR CO., LTD.
Fig 3: IPDM E/R (Intelligent Power Distribution Module Engine Room) - Wiring Diagram (3 Of 3)
G05976351Courtesy of NISSAN DIESEL MOTOR CO., LTD.

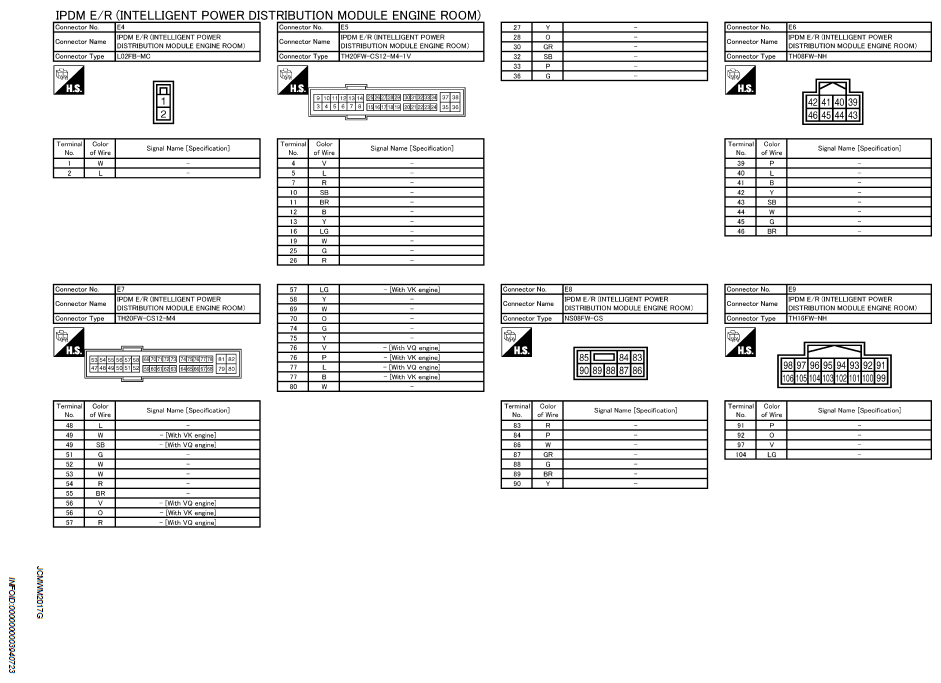

Fig 4: Identifying IPDM E/R (Intelligent Power Distribution Module Engine Room) Connectors
G05976352Courtesy of NISSAN DIESEL MOTOR CO., LTD.
