Wiring Diagram - METER -

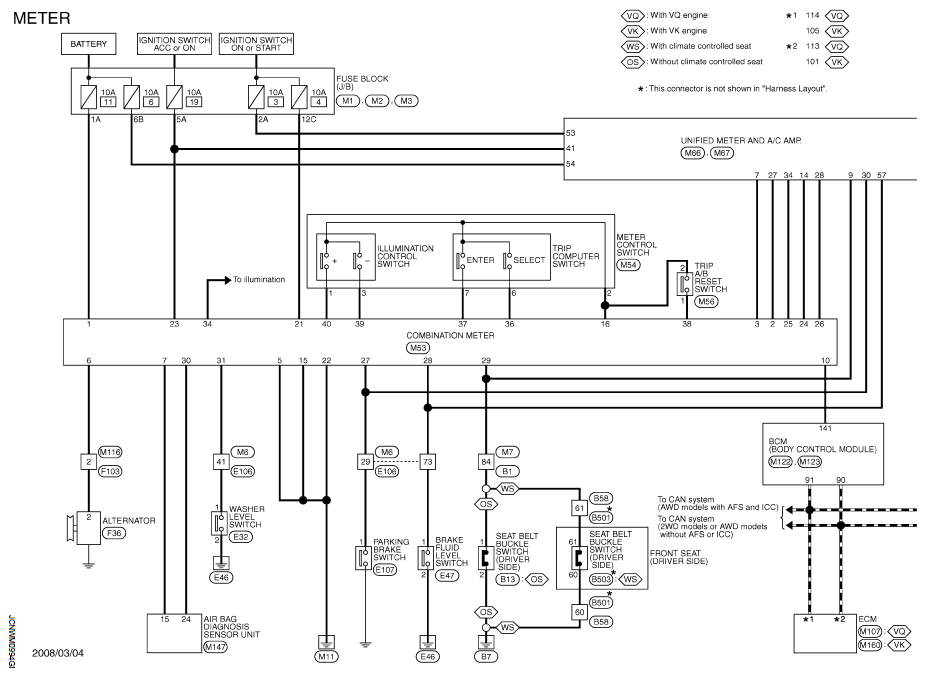

Fig 1: Meter - Wiring Diagram (1 Of 3)

G05978061

Courtesy of NISSAN DIESEL MOTOR CO., LTD.

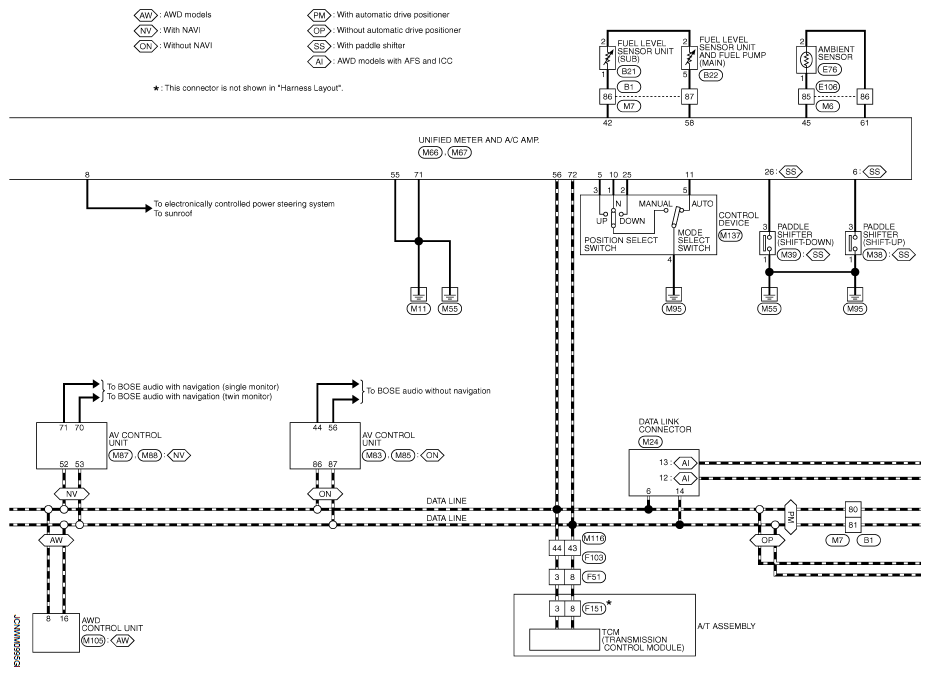

Fig 2: Meter - Wiring Diagram (2 Of 3)

G05978062

Courtesy of NISSAN DIESEL MOTOR CO., LTD.

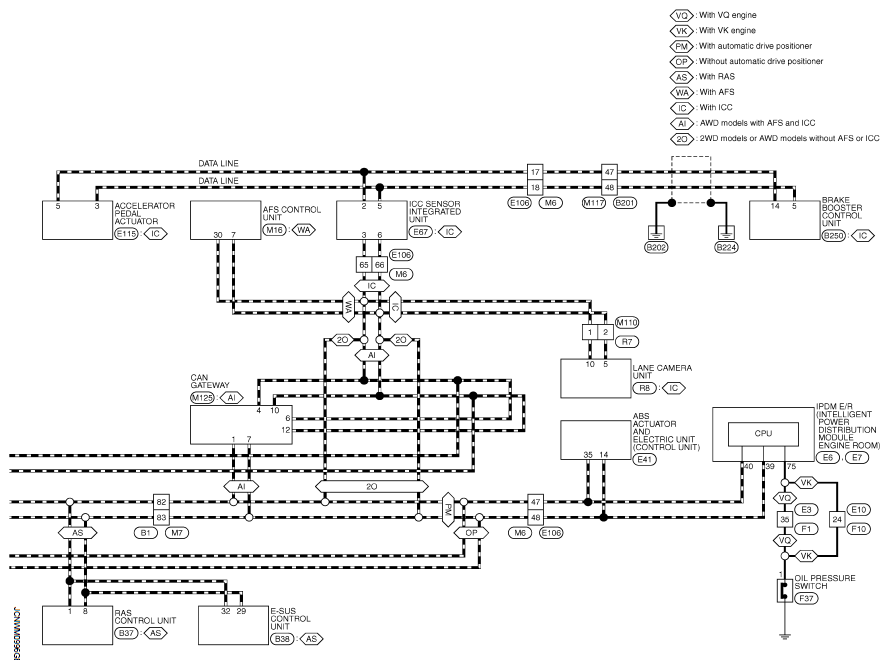

Fig 3: Meter - Wiring Diagram (3 Of 3)

G05978063

Courtesy of NISSAN DIESEL MOTOR CO., LTD.

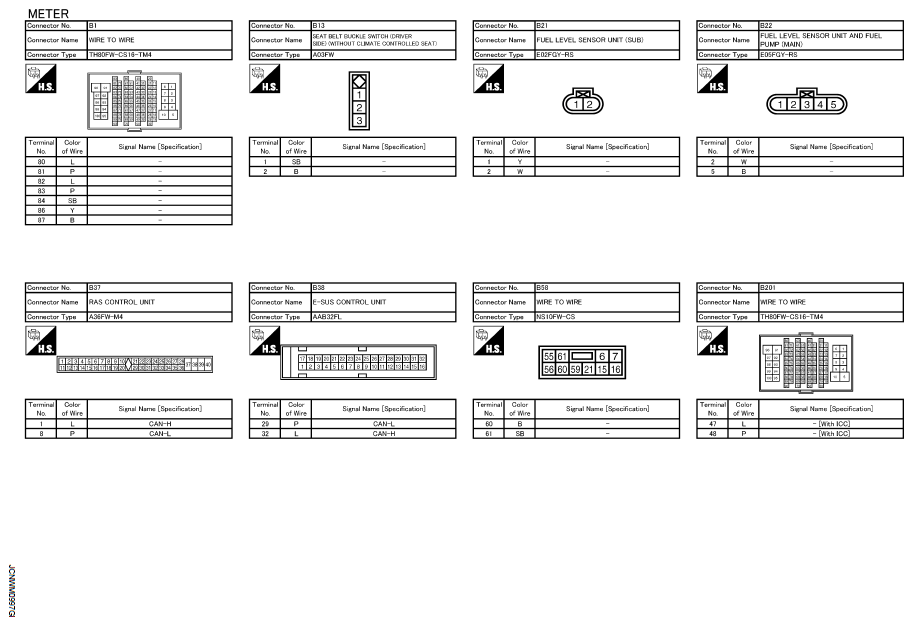

Fig 4: Identifying Meter Connectors (1 Of 9)

G05978064

Courtesy of NISSAN DIESEL MOTOR CO., LTD.

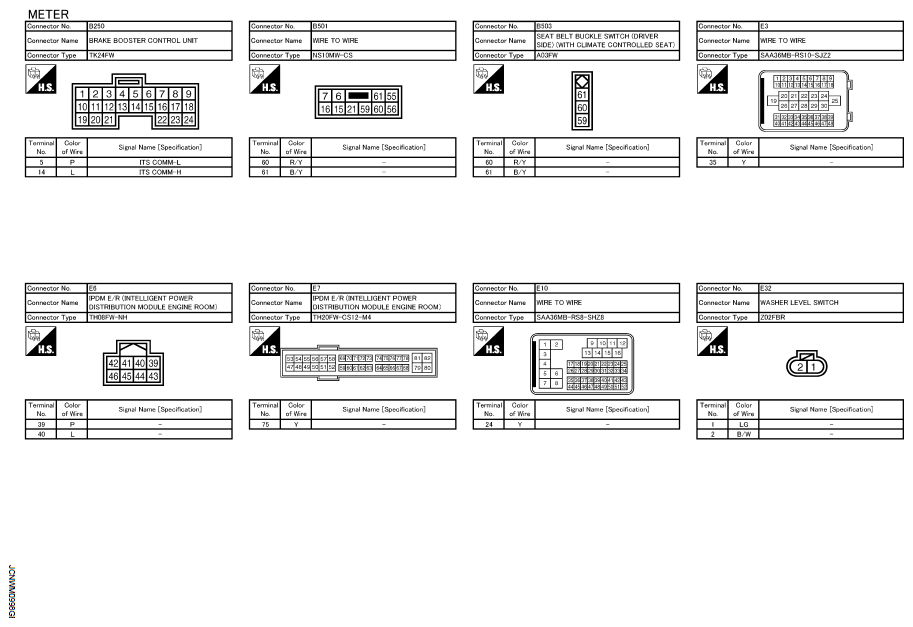

Fig 5: Identifying Meter Connectors (2 Of 9)

G05978065

Courtesy of NISSAN DIESEL MOTOR CO., LTD.

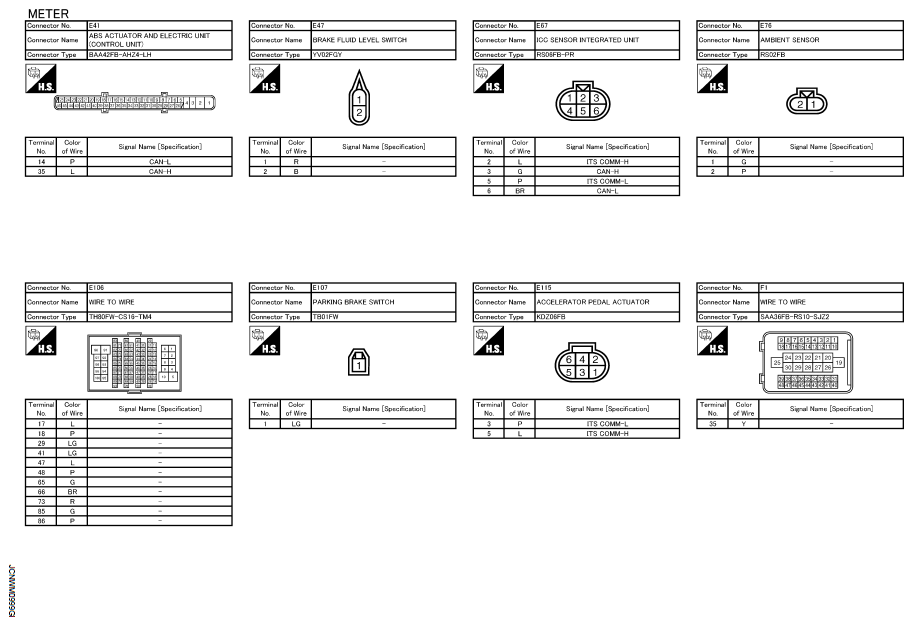

Fig 6: Identifying Meter Connectors (3 Of 9)

G05978066

Courtesy of NISSAN DIESEL MOTOR CO., LTD.

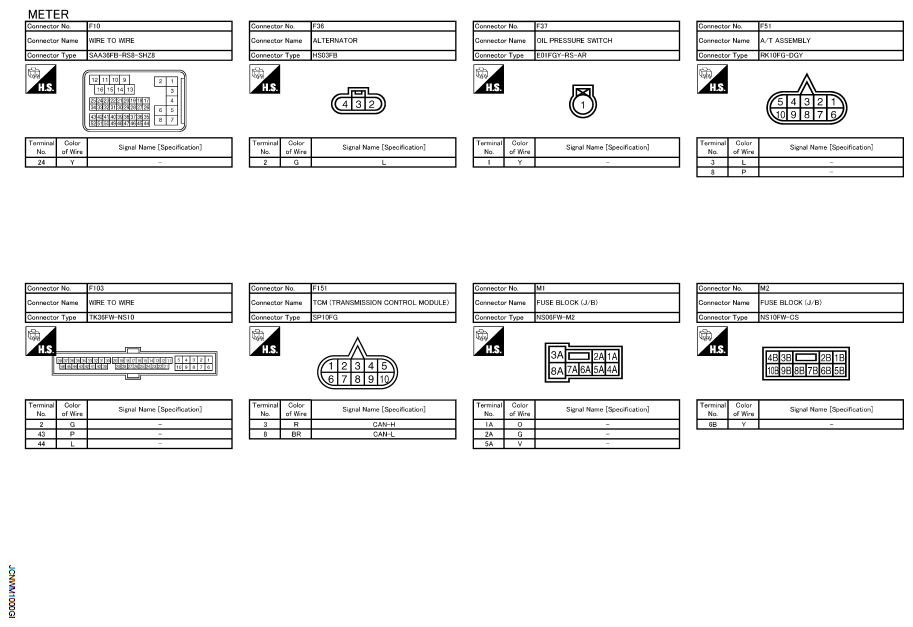

Fig 7: Identifying Meter Connectors (4 Of 9)

G05978067

Courtesy of NISSAN DIESEL MOTOR CO., LTD.

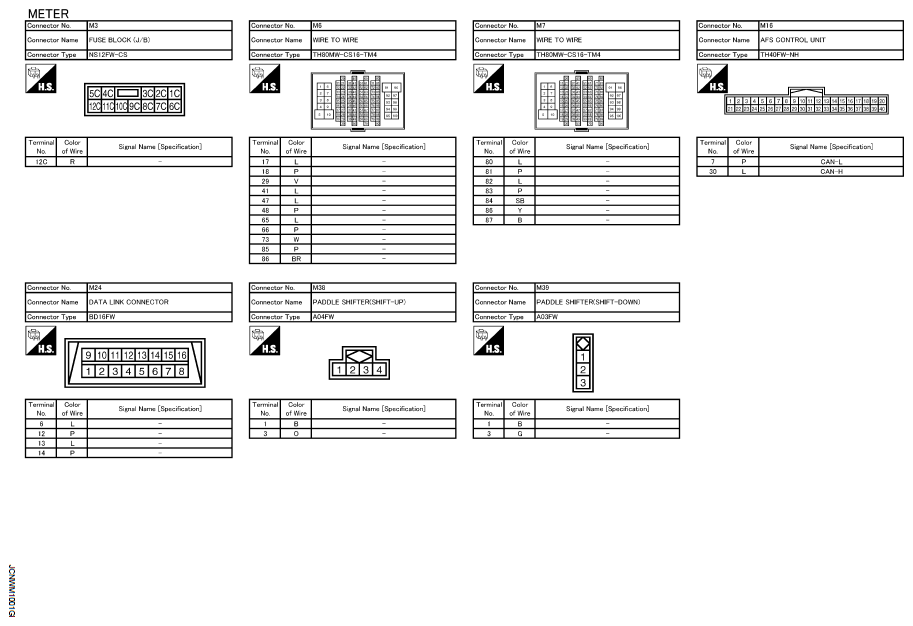

Fig 8: Identifying Meter Connectors (5 Of 9)

G05978068

Courtesy of NISSAN DIESEL MOTOR CO., LTD.

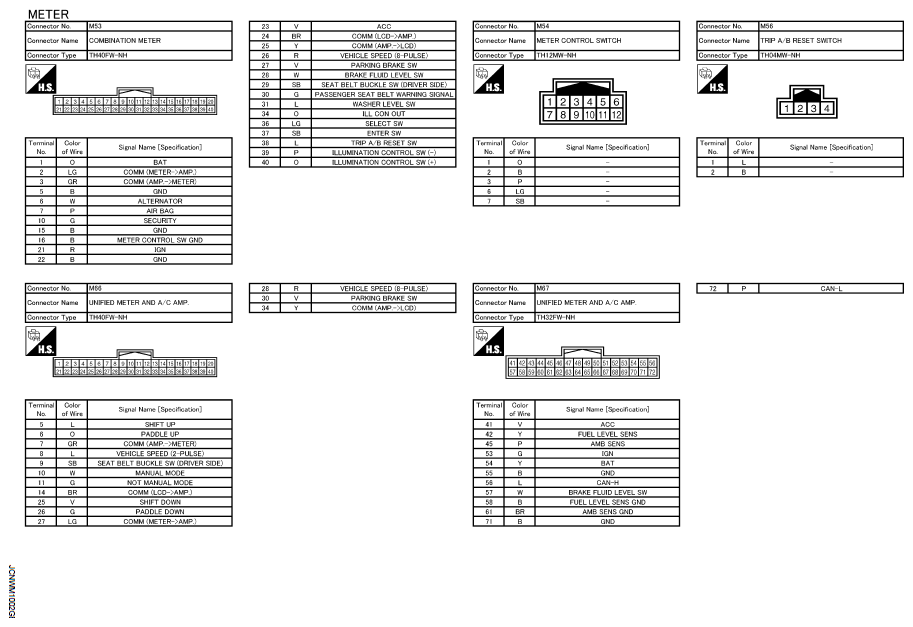

Fig 9: Identifying Meter Connectors (6 Of 9)

G05978069

Courtesy of NISSAN DIESEL MOTOR CO., LTD.

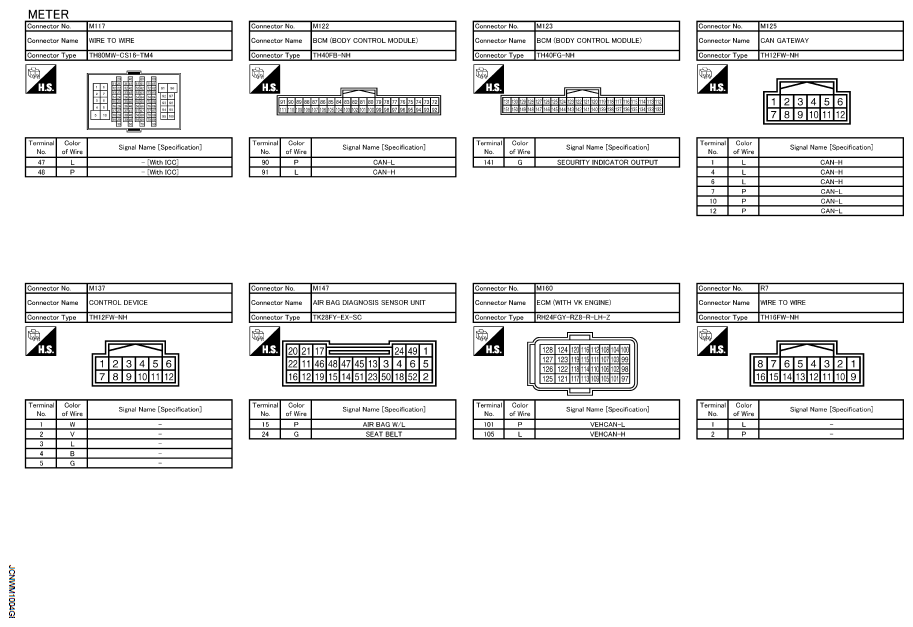

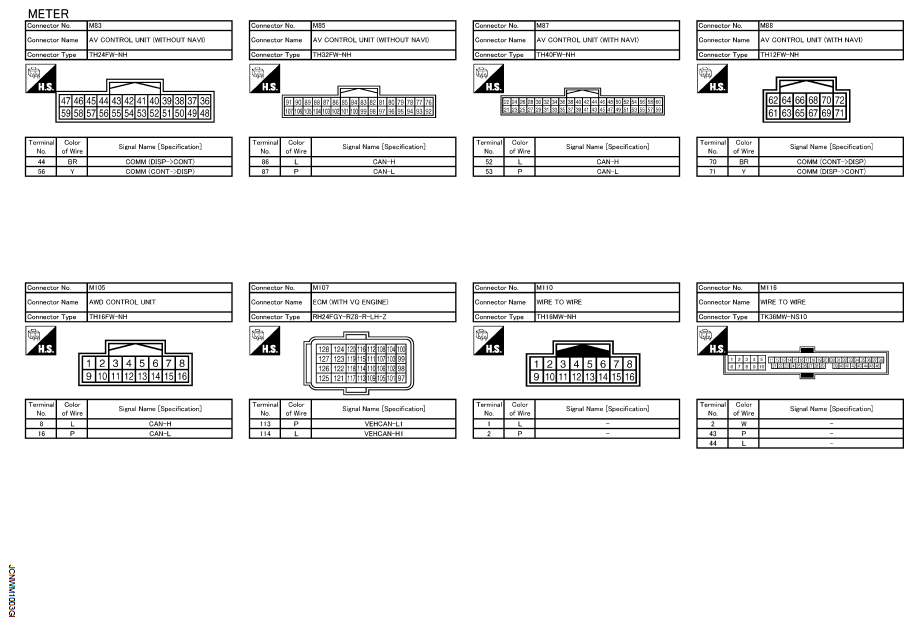

Fig 10: Identifying Meter Connectors (7 Of 9)

G05978070

Courtesy of NISSAN DIESEL MOTOR CO., LTD.

Fig 11: Identifying Meter Connectors (8 Of 9)

G05978071

Courtesy of NISSAN DIESEL MOTOR CO., LTD.

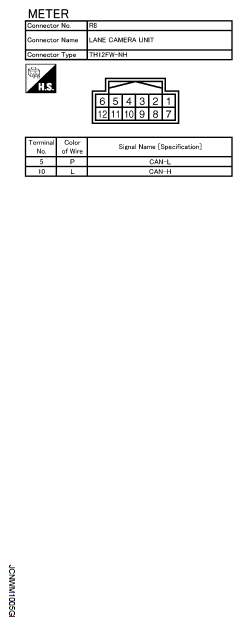

Fig 12: Identifying Meter Connectors (9 Of 9)

G05978072

Courtesy of NISSAN DIESEL MOTOR CO., LTD.
