Wiring Diagram - BCM -

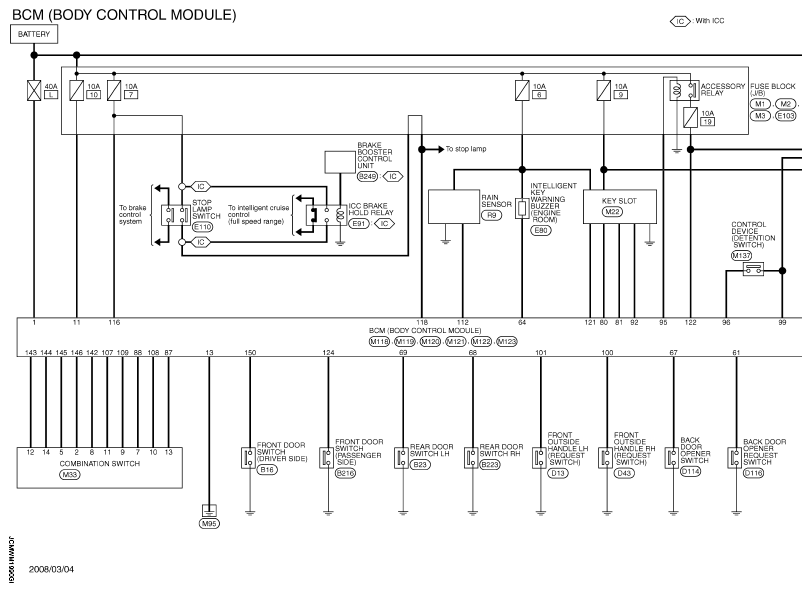

Fig 1: BCM (Body Control Module) - Wiring Diagram (1 Of 5)

Courtesy of NISSAN DIESEL MOTOR CO., LTD.

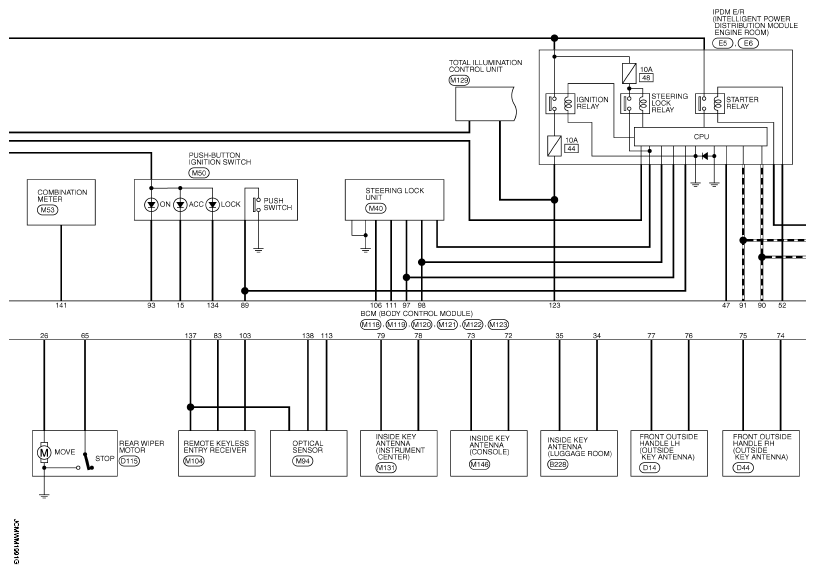

Fig 2: BCM (Body Control Module) - Wiring Diagram (2 Of 5)

Courtesy of NISSAN DIESEL MOTOR CO., LTD.

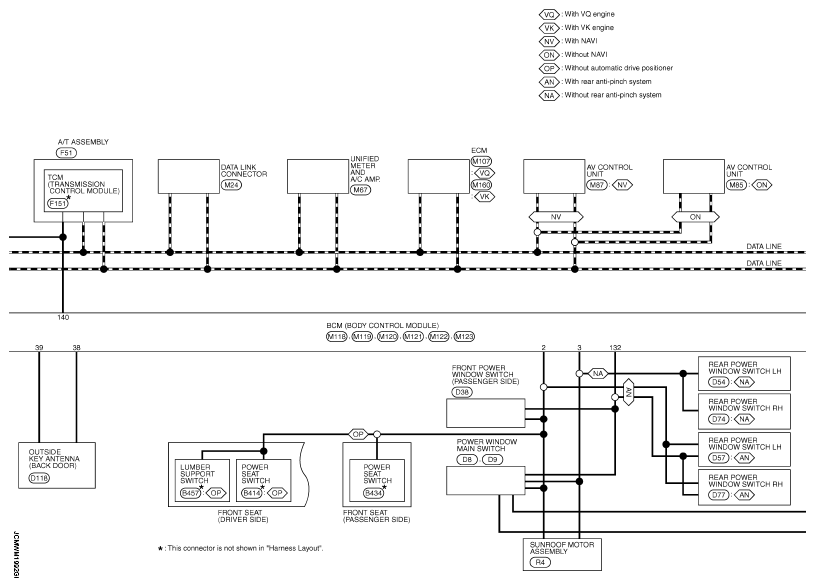

Fig 3: BCM (Body Control Module) - Wiring Diagram (3 Of 5)

Courtesy of NISSAN DIESEL MOTOR CO., LTD.

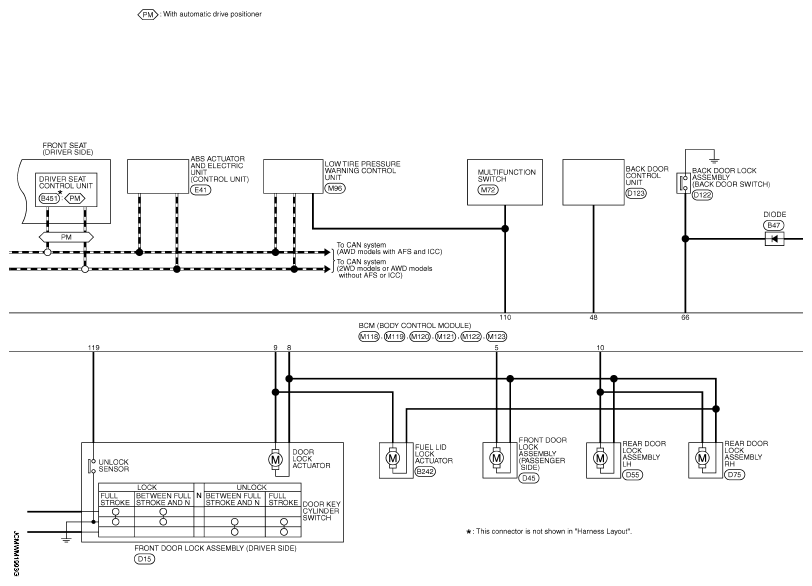

Fig 4: BCM (Body Control Module) - Wiring Diagram (4 Of 5)

Courtesy of NISSAN DIESEL MOTOR CO., LTD.

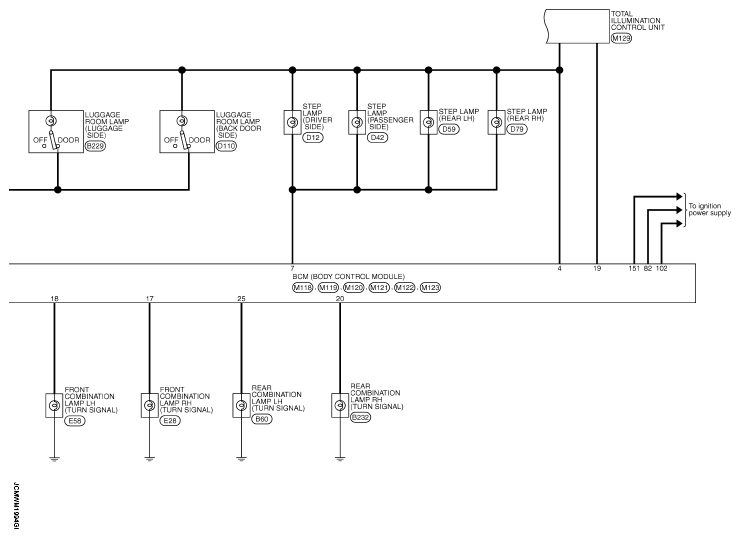

Fig 5: BCM (Body Control Module) - Wiring Diagram (5 Of 5)

Courtesy of NISSAN DIESEL MOTOR CO., LTD.

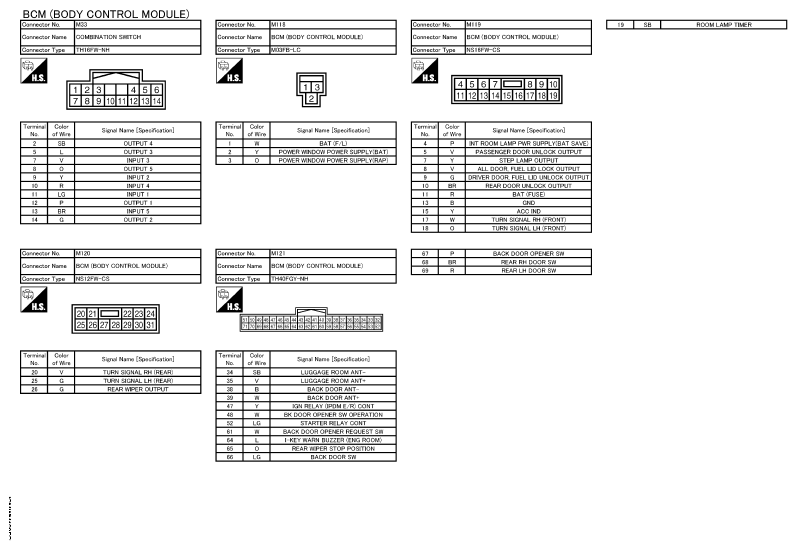

Fig 6: Identifying BCM (Body Control Module) Connectors (1 Of 2)

Courtesy of NISSAN DIESEL MOTOR CO., LTD.

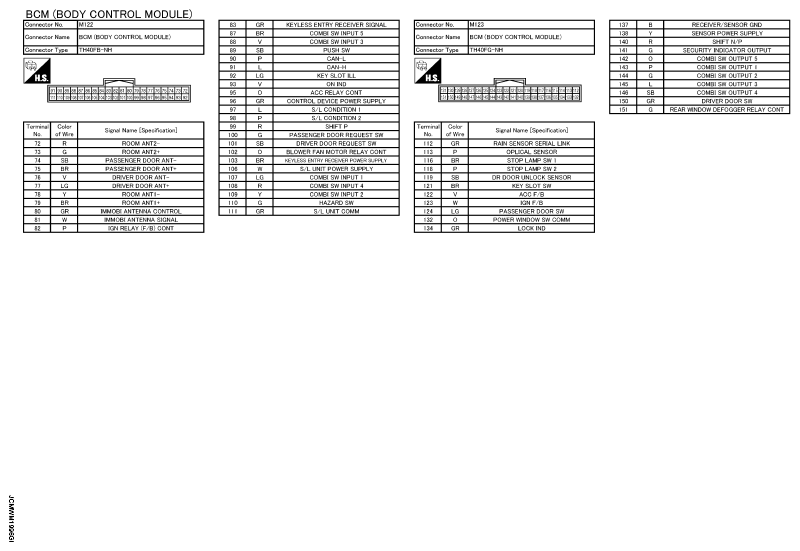

Fig 7: Identifying BCM (Body Control Module) Connectors (2 Of 2)

Courtesy of NISSAN DIESEL MOTOR CO., LTD.
