Removal and Installation: Removal

  1. Remove selector lever knob. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove console upper finisher.
    • Open the console lid.
    • Remove console upper finisher (1) fixing pawls with remover tool (A).
    • Pull back console upper finisher.

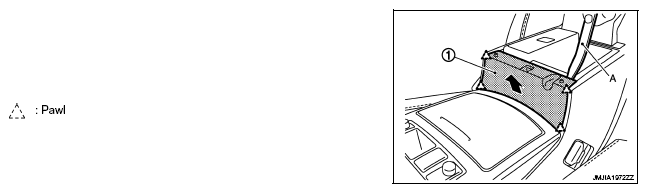

      Fig 1: Removing Console Upper Finisher
      G05984830Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove console finisher assembly.
    • Remove console finisher assembly (1) fixing clips with remover tool (A).
    • Pull up console finisher assembly.
    • Disconnect harness connector.

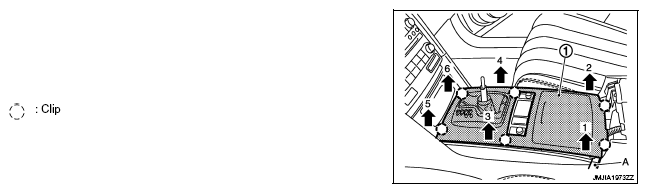

      Fig 2: Removing Console Finisher Assembly And Fixing Clips
      G05984831Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Remove console switch finisher.
    • Remove console switch finisher (1) fixing screws (A).
    • Pull up console switch finisher.
    • Disconnect harness connectors.

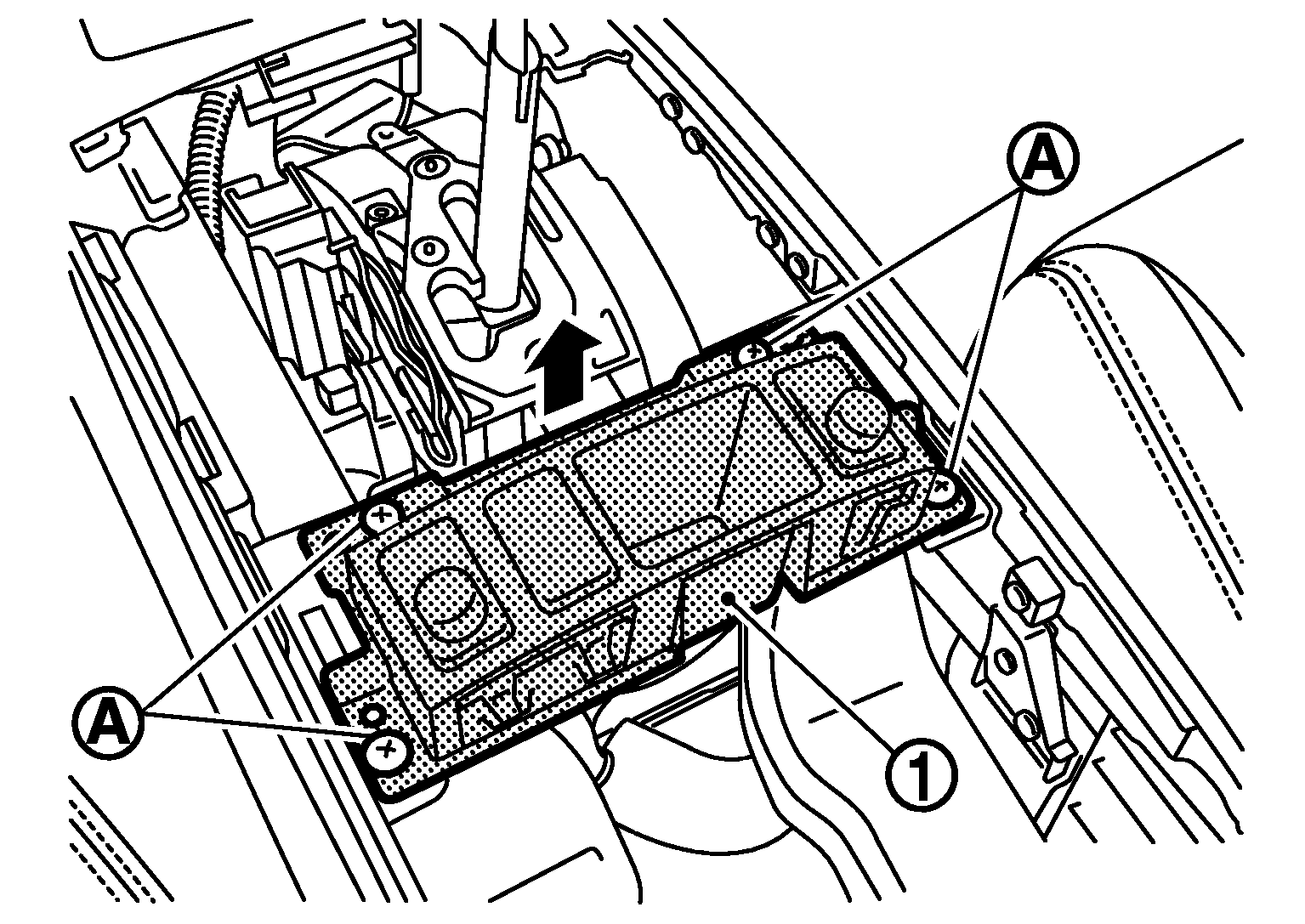

      Fig 3: Identifying Console Switch Finisher And Fixing Screws
      G05984799Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Remove console pocket assembly.
    • Pull back console pocket assembly (1), and disengage clips.
    • Disconnect harness connector.

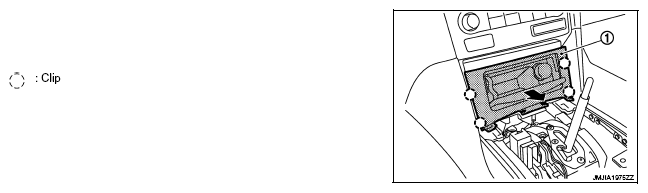

      Fig 4: Identifying Console Pocket Assembly
      G05984833Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Disconnect iPod adapter harness connector (A).
  7. Disconnect auxiliary input jacks harness connector (B).
  8. Disconnect console power socket harness connector (C).
  9. Disconnect DVD player harness connector (D).
    Fig 5: Identifying DVD Player Harness Connector
    G05984801Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove center console assembly fixing screws (A).

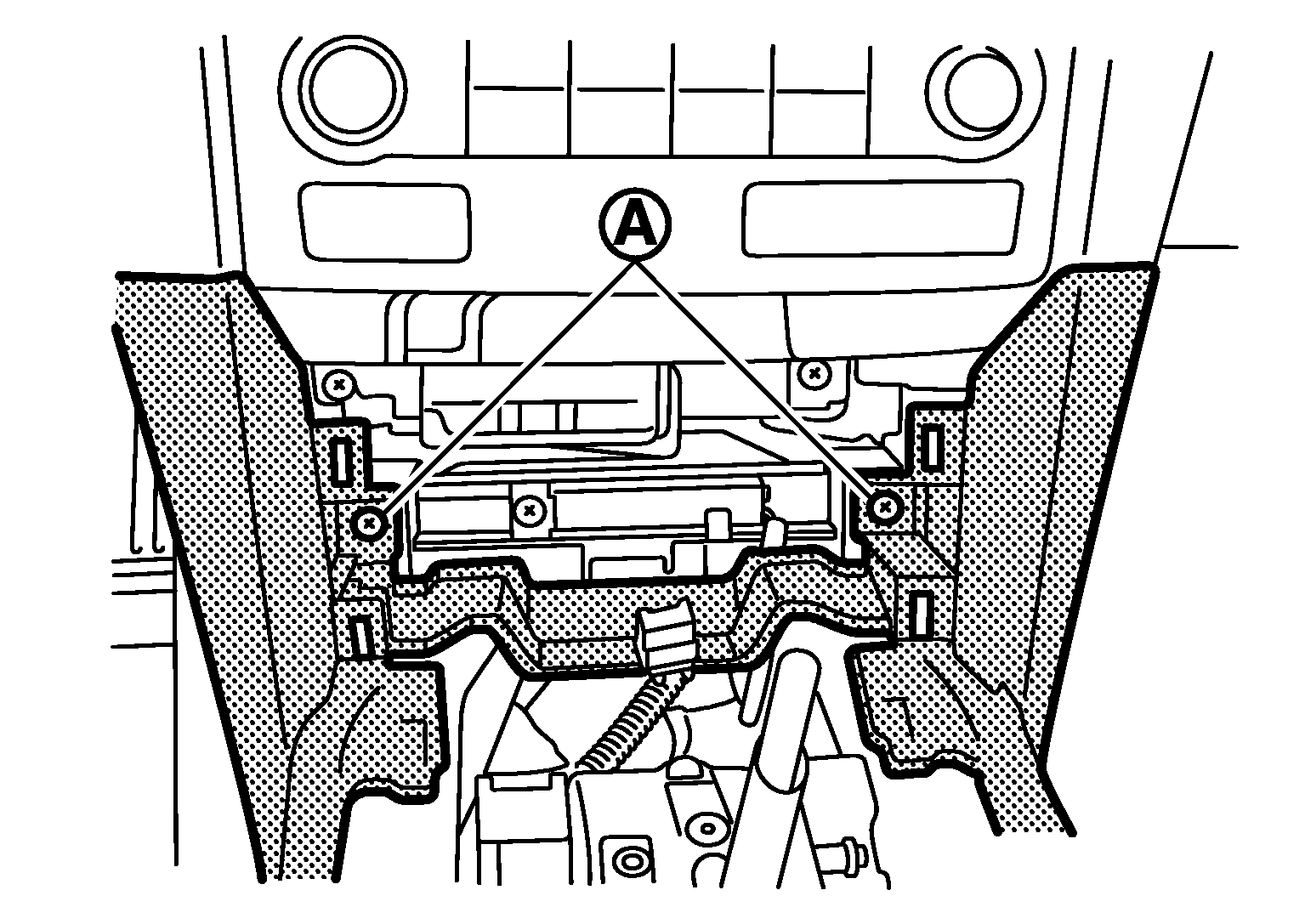

    Fig 6: Removing Center Console Assembly Fixing Screws
    G05984802Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Put front seat to front must position.
  12. Remove console rear finisher.
    • Pull back the console rear finisher (1) with remover tool (A).
    • Disconnect harness connectors.

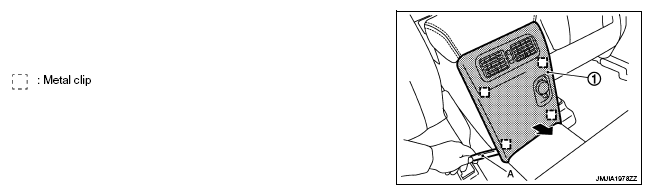

      Fig 7: Identifying Console Rear Finisher
      G05984836Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove rear ventilator duct (1).

    Refer to "REAR VENTILATOR DUCT 1 : REMOVAL AND INSTALLATION ".

  14. Remove center console fixing screws (A).
    Fig 8: Identifying Rear Ventilator Duct And Center Console Fixing Screws
    G05984804Courtesy of NISSAN MOTOR CO., U.S.A.
  15. Remove center console assembly.

    Pull back and lift up center console assembly (1).

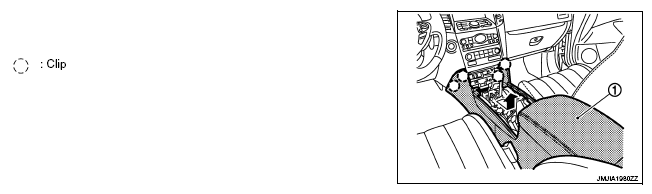

    Fig 9: Identifying Center Console Assembly
    G05984838Courtesy of NISSAN MOTOR CO., U.S.A.
