Removal and Installation: Removal

  1. Put selector lever in drive position.
  2. Remove selector lever knob.
  3. Remove console finisher assembly.
    • Pull console finisher (1), upward to disengage from center console.
    • Disconnect harness connectors.

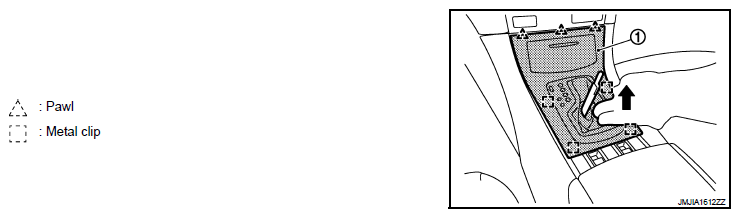

      Fig 1: Pulling Console Finisher
      G06301362Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Disconnect console sub harness connectors (A).
  5. Remove center console fixing screws (B).
    Fig 2: Identifying Console Sub Harness Connector And Screws
    G05729890Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Put front seat to front must position.
  7. Remove console rear finisher.
    • Pull back the console rear finisher (1) with remover tool (A).
    • Disconnect inside key antenna connector.

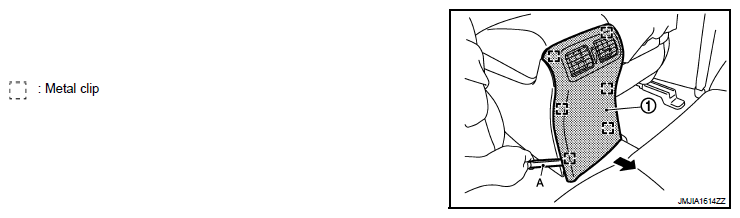

      Fig 3: Pulling Back Console Rear Finisher
      G06301364Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Remove rear ventilator duct (1).

    Refer to "Rear Ventilator Duct 2 : Removal And Installation ".

  9. Remove center console fixing screws (A).
    Fig 4: Identifying Rear Ventilator Duct And Screws
    G05729892Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Remove center console assembly.
    • Lift up center console assembly back side.
    • Disconnect harness connectors.
  11. Put front seat to rear most position.
  12. Remove instrument side finisher LH.
    • Insert a remover tool into lower space.
    • Pull the instrument side finisher LH (1) crosswise.

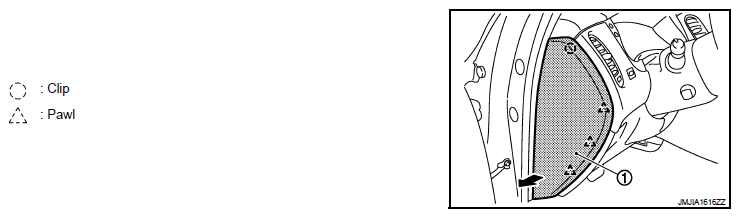

      Fig 5: Pulling LH Instrument Side Finisher
      G06301366Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove instrument lower panel LH.
    • Remove hood opener lever fixing bolts (A).
    • Pull back instrument lower panel LH (1).
    • Remove skirt clips of steering column lower cover (2).
    • Release data link connector (pawl) then remove it from instrument lower panel LH.
    • Disconnect harness connectors and aspirator duct.

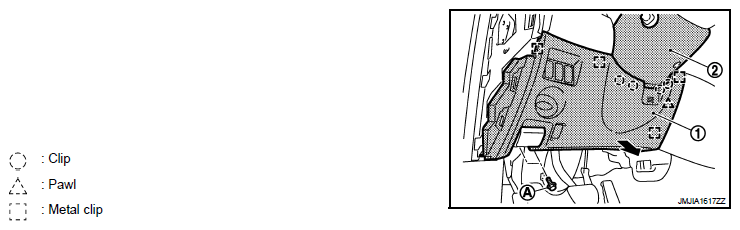

      Fig 6: Pulling Back Lower LH Instrument Panel
      G06301367Courtesy of NISSAN MOTOR CO., U.S.A.
  14. Remove steering wheel. Refer to "Removal And Installation ".
  15. Remove steering column covers.
    • Remove steering column mask (1).
    • Remove steering column cover fixing screws (A).
    • Pull up steering column upper cover (2).
    • Remove cluster lid A (4) fixing clips and pawls, and then remove steering column upper cover.
    • Pull down steering column lower cover (3), and then remove steering column lower cover.
    • Disconnect ADP steering switch connector. (with ADP)

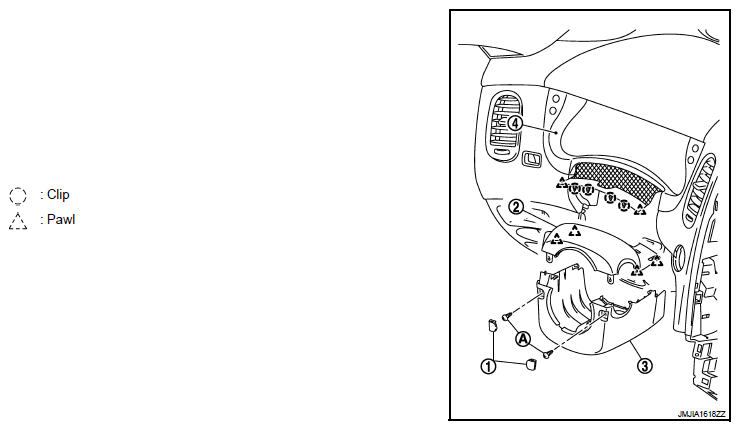

      Fig 7: Identifying Down Steering Column Lower Cover
      G06301368Courtesy of NISSAN MOTOR CO., U.S.A.
  16. Remove combination switch. Refer to "Removal And Installation ".
  17. Remove cluster lid A (upper).
    • Pull back cluster lid A (upper) (1), and disengage pawls and metal clips.
    • Remove cluster lid A (upper).

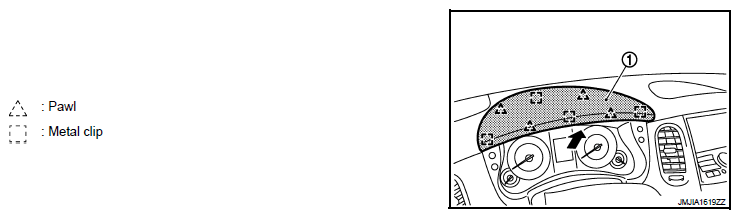

      Fig 8: Identifying Back Cluster Lid
      G06301369Courtesy of NISSAN MOTOR CO., U.S.A.
  18. Remove cluster lid A.
    • Remove cluster lid A (1) fixing screws (A).
    • Pull back cluster lid A, and disengage metal clips.
    • Remove cluster lid A.

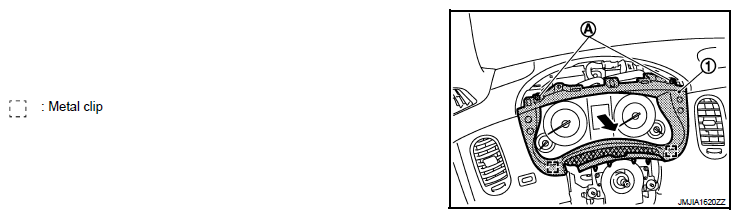

      Fig 9: Removing Cluster Lid
      G06301370Courtesy of NISSAN MOTOR CO., U.S.A.
  19. Remove combination meter. Refer to "Removal And Installation ".
  20. Remove instrument harness (1) fixing clips (A).

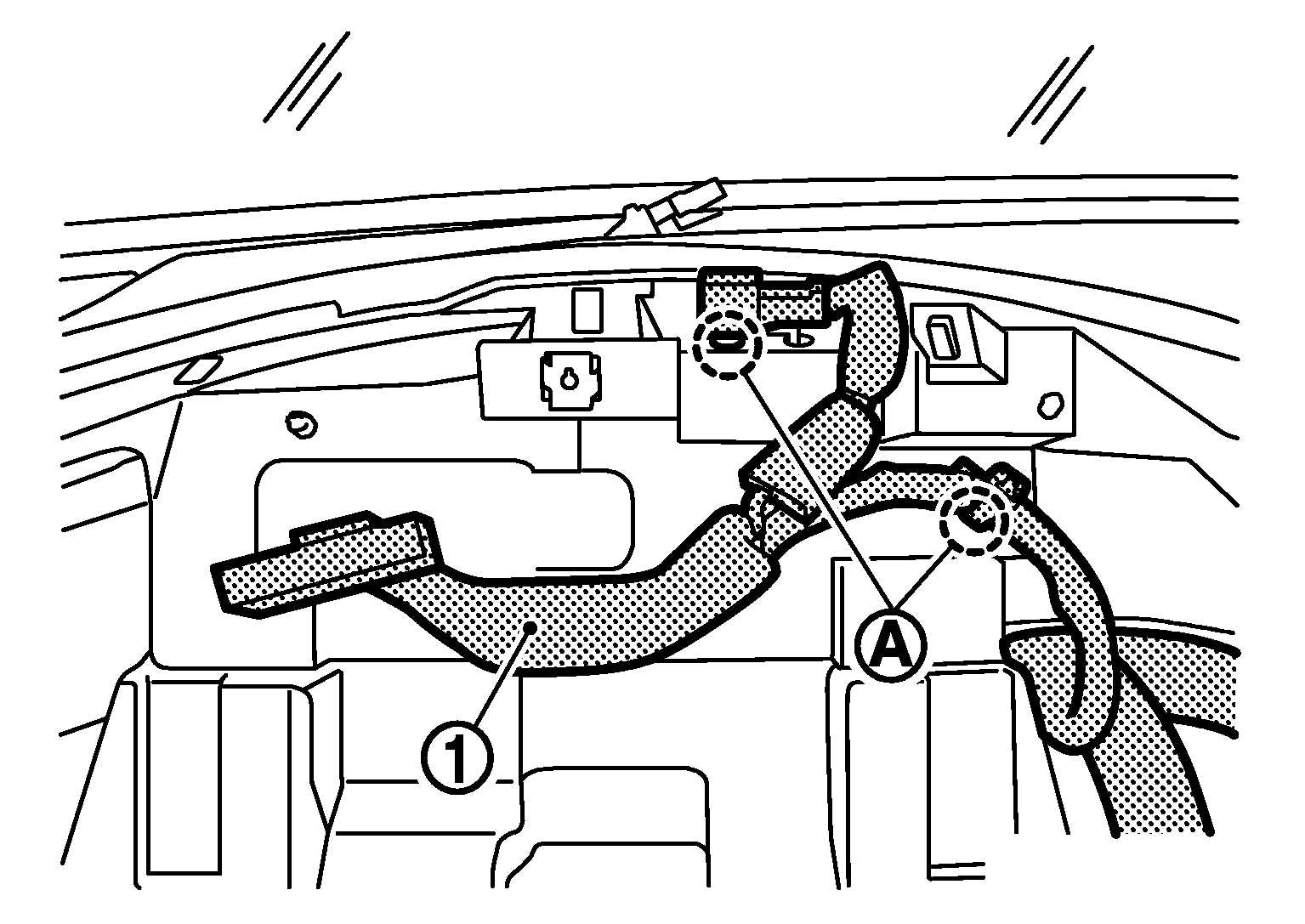

    Fig 10: Identifying Instrument Harness And Fixing Clips
    G05729898Courtesy of NISSAN MOTOR CO., U.S.A.
  21. Disconnect trip A/B reset switch (1) harness connector (A).

    Refer to "Exploded View ".

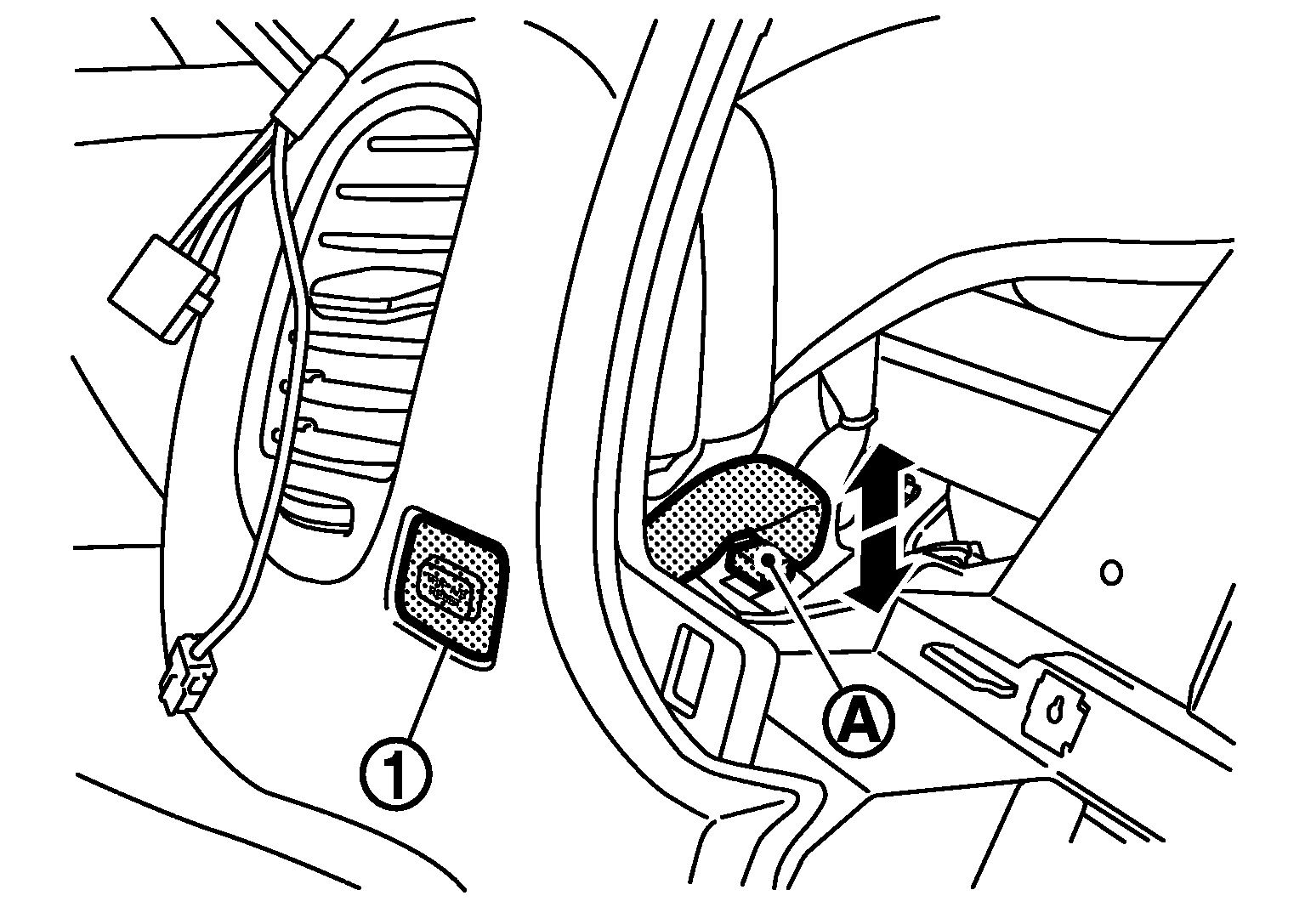

    Fig 11: Disconnecting Trip A/B Reset Switch Harness Connector
    G05729899Courtesy of NISSAN MOTOR CO., U.S.A.
  22. Remove front body side welt LH. Refer to "Removal And Installation ".
  23. Remove front pillar garnish LH. Refer to "Removal And Installation ".

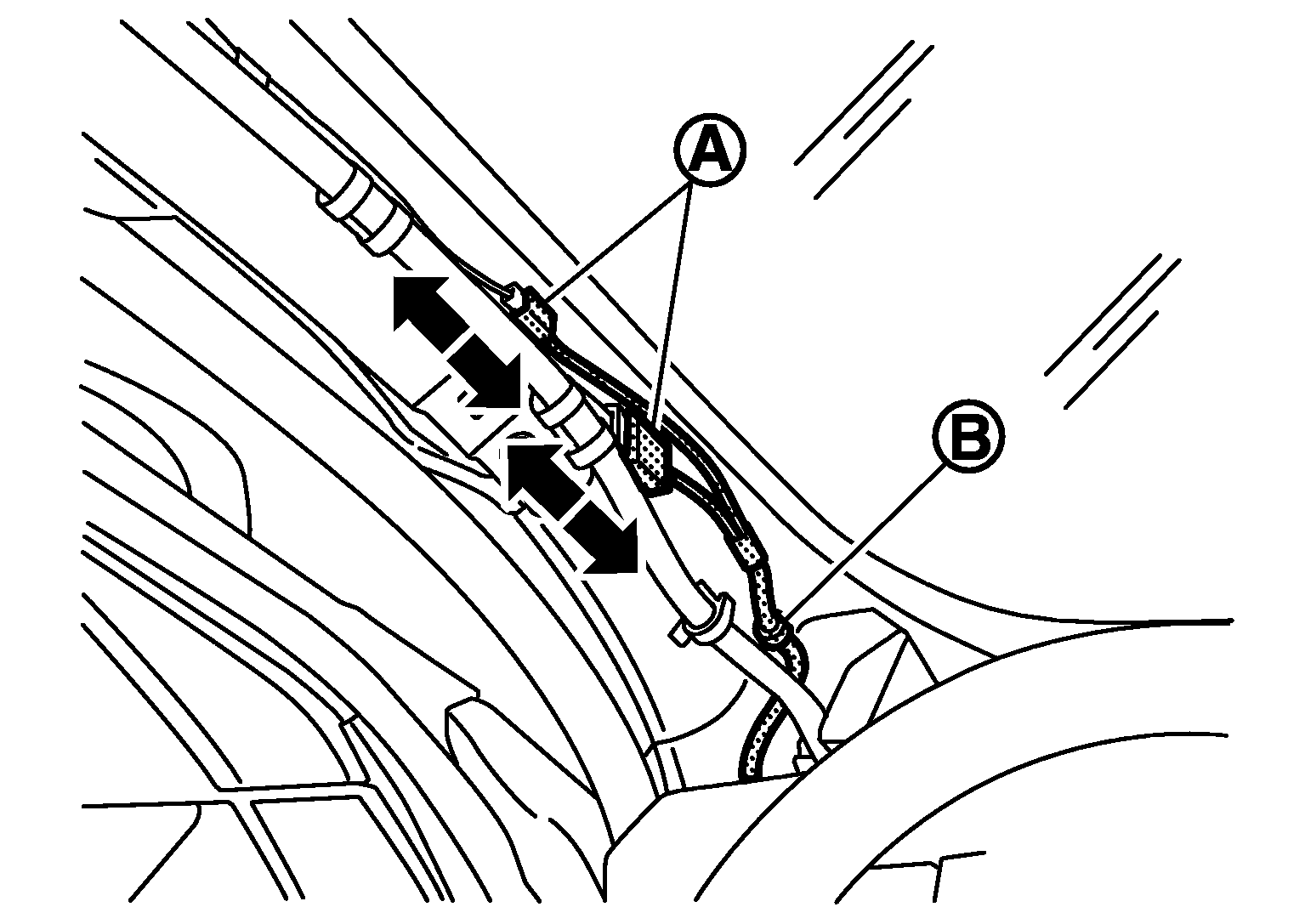

  24. Disconnect antenna connectors (A).
  25. Remove harness clip (B).
    Fig 12: Disconnecting Antenna Connectors
    G05729900Courtesy of NISSAN MOTOR CO., U.S.A.
  26. Remove speaker grille LH.
    • Pull up and back speaker grille LH (1).
    • Disconnect front squawker harness connector.
      Fig 13: Pulling Up And Back Speaker Grille LH
      G06301374Courtesy of NISSAN MOTOR CO., U.S.A.
  27. Remove center speaker grille.
    • Disengage center speaker grille (1) fixing clips and pawls with remover tool (A).
    • Pull up center speaker grille.
      Fig 14: Pulling Up Center Speaker Grille
      G06301375Courtesy of NISSAN MOTOR CO., U.S.A.
  28. Remove center speaker. (with BOSE AUDIO) Refer to "Exploded View ".

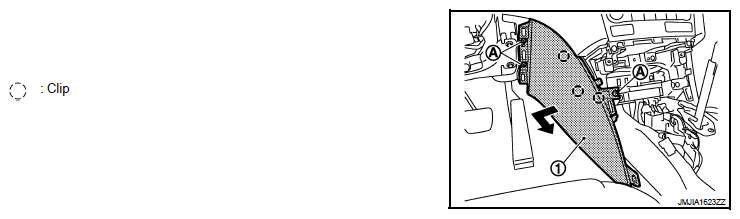

  29. Remove instrument side panel LH.
    • Remove instrument side panel LH (1) fixing screws (A).
    • Pull toward the arrow direction.
      Fig 15: Removing LH Instrument Side Panel
      G06301376Courtesy of NISSAN MOTOR CO., U.S.A.
  30. Remove inside key antenna. Refer to "Instrument Center : Removal And Installation ".
  31. Remove harness connector bracket (1) fixing screw (A).

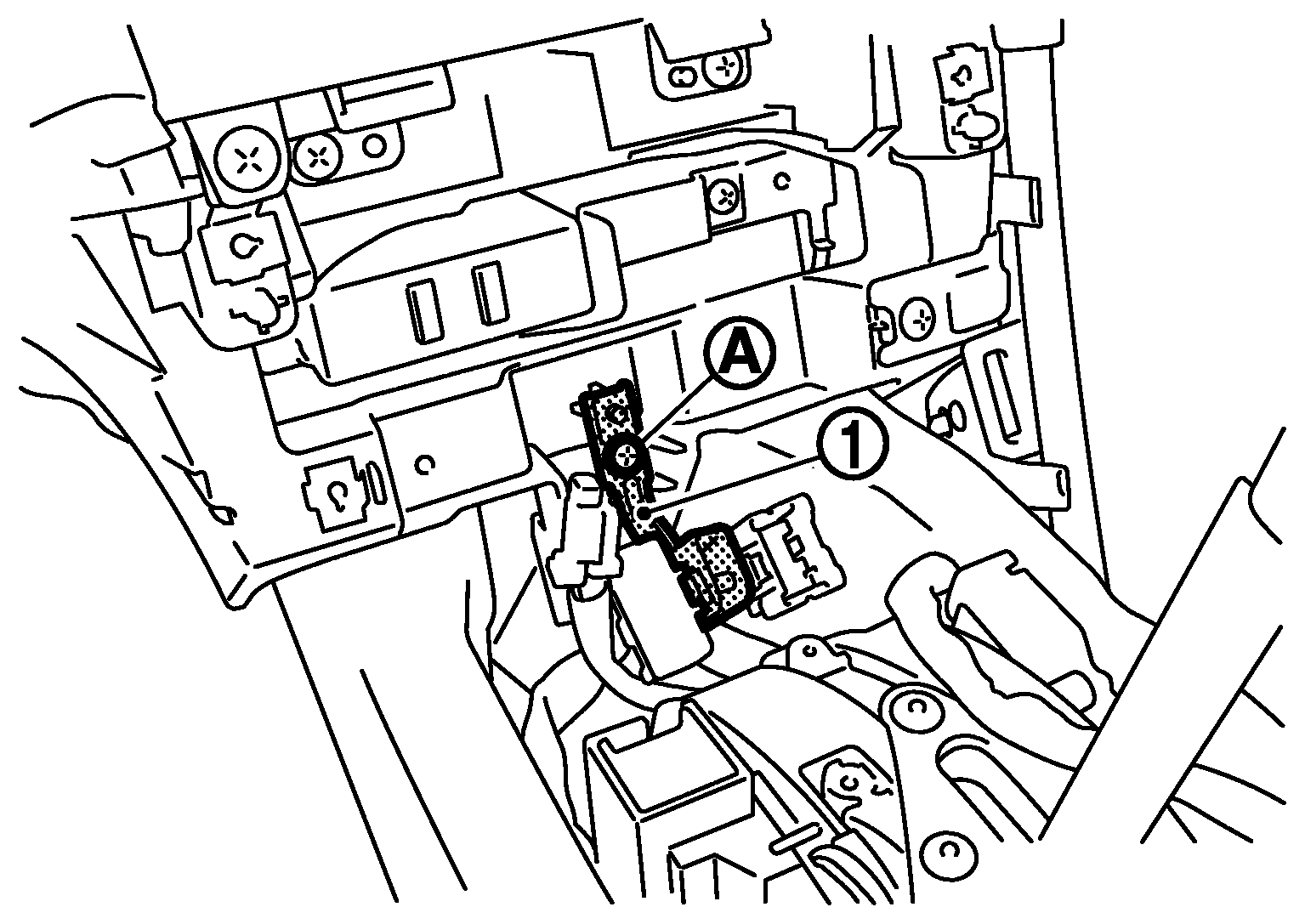

    Fig 16: Identifying Harness Connector Bracket With Fixing Screw
    G05729904Courtesy of NISSAN MOTOR CO., U.S.A.
  32. Remove cluster lid C.
    • Remove cluster lid C (1) fixing screws (A).
    • Pull down and back cluster lid C.
    • Disconnect harness connectors.

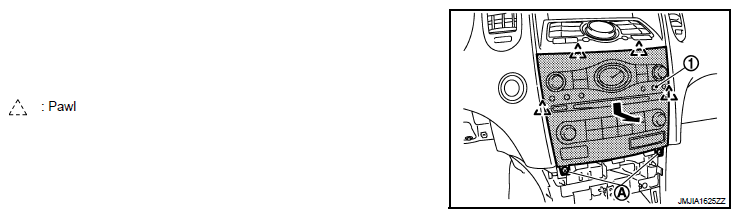

      Fig 17: Removing Cluster Lid C
      G06301378Courtesy of NISSAN MOTOR CO., U.S.A.
  33. Remove cluster lid D.
    • Remove cluster lid D (1) fixing screws (A).
    • Pull back cluster lid D.
    • Disconnect harness connectors.

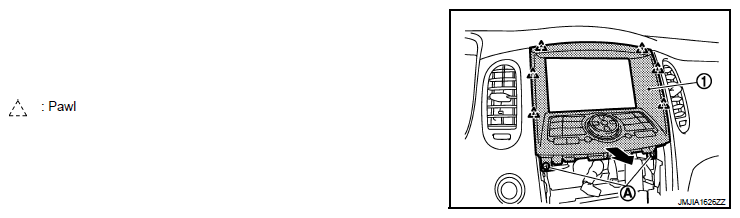

      Fig 18: Removing Cluster Lid D
      G06301379Courtesy of NISSAN MOTOR CO., U.S.A.
  34. Remove display unit.
    • Remove display unit (1) fixing screws (A).
    • Pull toward the arrow direction.
    • Disconnect harness connectors.
      Fig 19: Removing Display Unit
      G05729907Courtesy of NISSAN MOTOR CO., U.S.A.
  35. Remove AV control unit.

    Refer to "Removal And Installation ".

    • Remove AV control unit (1) fixing screws (A).
    • Pull back AV control unit.
    • Disconnect harness connectors.
      Fig 20: Removing AV Control Unit
      G05729908Courtesy of NISSAN MOTOR CO., U.S.A.
  36. Remove push button ignition switch. Refer to "Removal And Installation ".
  37. Remove front defroster grille LH. Refer to "Front Defroster Grille : Removal And Installation ".
  38. Remove front defroster grille RH. Refer to "Front Defroster Grille : Removal And Installation ".

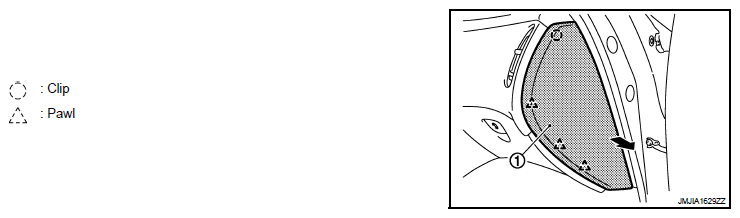

  39. Remove instrument side finisher RH.
    • Insert a remover tool into lower space.
    • Pull the instrument side finisher RH (1) crosswise.
      Fig 21: Pulling Instrument Side Finisher RH
      G06301382Courtesy of NISSAN MOTOR CO., U.S.A.
  40. Remove glove box assembly.
    • Open the glove box.
    • Pull back glove box assembly (1).

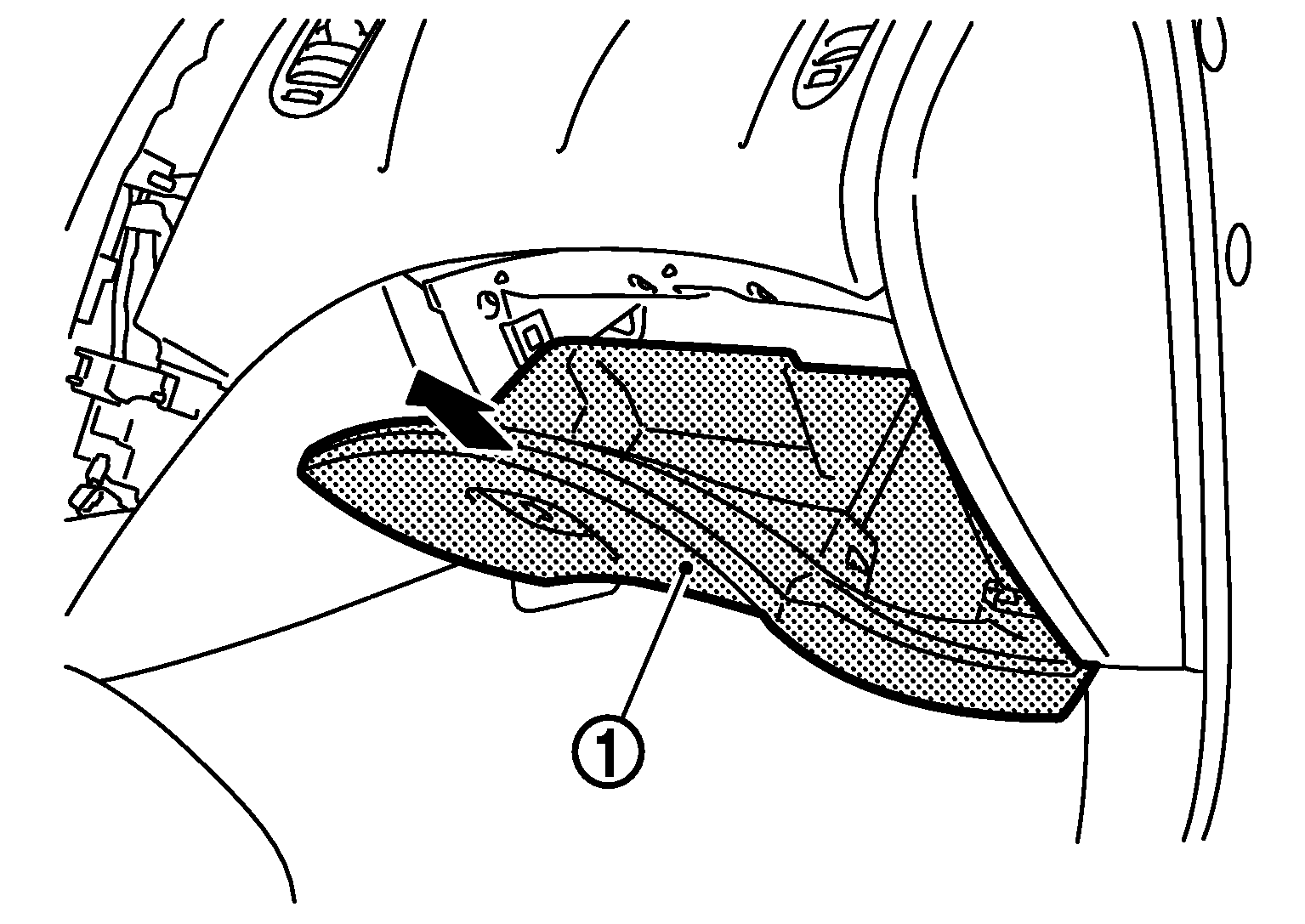

      Fig 22: Pulling Back Glove Box Assembly
      G05729910Courtesy of NISSAN MOTOR CO., U.S.A.
    • Remove damper pin (1) of left side.
      Fig 23: Removing Damper Pin
      G06301384Courtesy of NISSAN MOTOR CO., U.S.A.
  41. Remove instrument lower cover.
    • Pull downward, disengaged pawls.
    • Pull back instrument lower cover (1).
    • Disconnect illumination lamp harness connector.
      Fig 24: Pulling Back Instrument Lower Cover
      G06301385Courtesy of NISSAN MOTOR CO., U.S.A.
  42. Remove instrument lower panel RH.
    • Remove instrument lower panel RH (1) fixing screws (A).
    • Pull back instrument lower panel RH.
    • Disconnect glove box lamp harness connector.

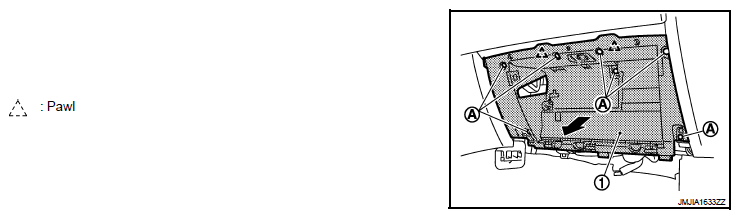

      Fig 25: Removing RH Instrument Lower Panel
      G06301386Courtesy of NISSAN MOTOR CO., U.S.A.
  43. Disconnect front passenger air bag module connector. Refer to "Exploded View ".
  44. Remove front passenger air bag module fixing bolt. Refer to "Removal And Installation ".
  45. Remove instrument side panel RH.
    • Remove instrument side panel RH (1) fixing screws (A).
    • Pull toward the arrow direction.

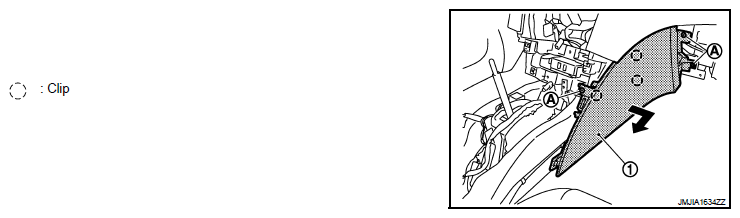

      Fig 26: Removing Instrument Side Panel RH
      G06301387Courtesy of NISSAN MOTOR CO., U.S.A.
  46. Remove front body side welt RH. Refer to "Removal And Installation ".
  47. Remove front pillar garnish RH. Refer to "Removal And Installation ".

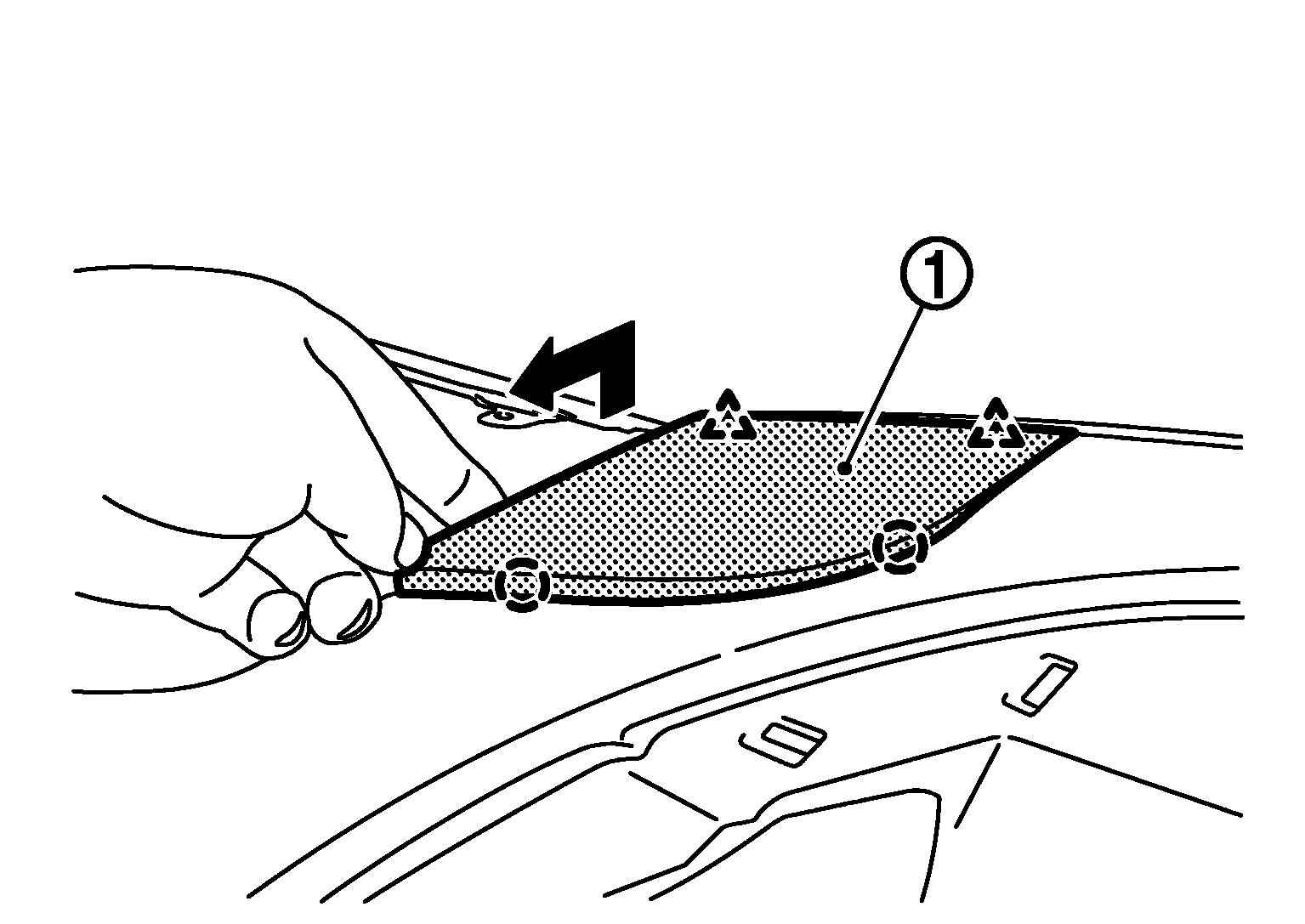

  48. Remove speaker grille RH.
    • Pull up and back tweeter grille RH (1).
    • Disconnect front squawker harness connector.
      Fig 27: Pulling UP And Back RH Tweeter Grille
      G06301388Courtesy of NISSAN MOTOR CO., U.S.A.
  49. Remove instrument panel assembly mounting bolts (A), screws (B) and clips (C).

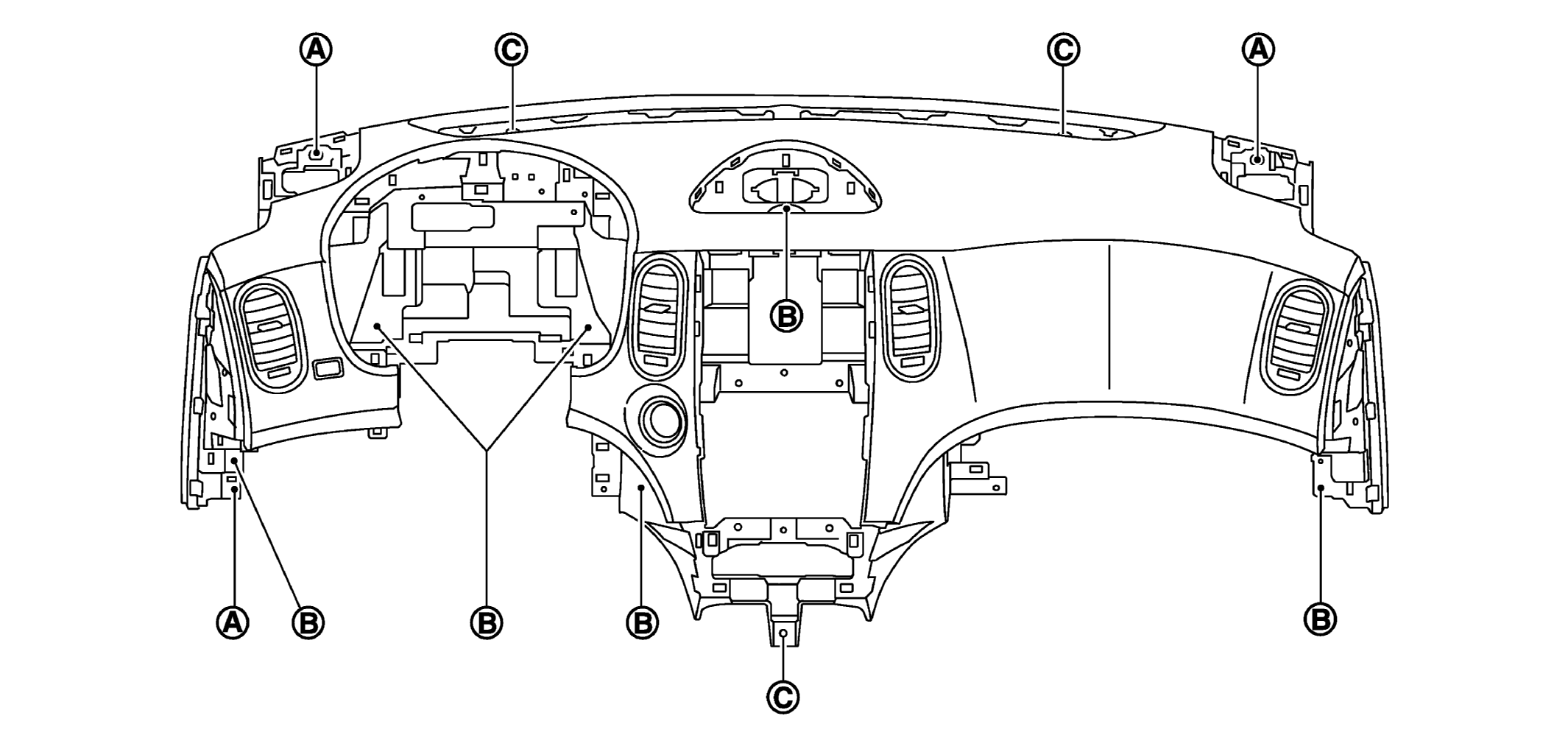

    Fig 28: Identifying Instrument Panel Assembly Mounting Bolts, Screws And Clips
    G05729916Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Cover tool with a shop cloth to prevent windshield glass being damaged.
  50. Remove instrument panel assembly.
    CAUTION:
    • Cover center console upper surface with a shop cloth to prevent it from being damaged.
    • When removing instrument panel assembly, 2 workers are required so as to prevent it from dropping.
  51. Remove the following parts after removing instrument panel assembly.
