INFORMATION DISPLAY : Component Parts Location

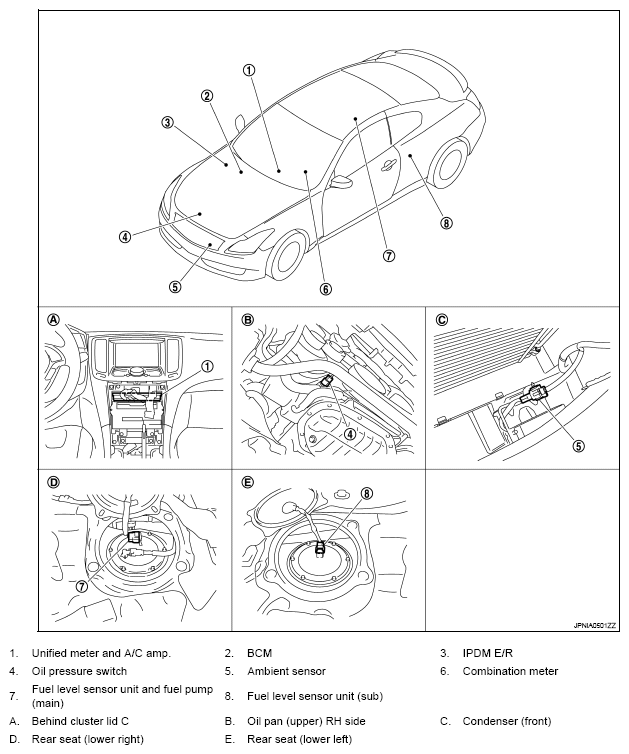

Fig 1: Identifying Information Display Component Parts Location

G05737772

Courtesy of NISSAN MOTOR CO., U.S.A.
