Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Meter, Warning Lamp & Indicator
>>
Ecu Diagnosis
>>
IPDM E/R (Intelligent Power Distribution Module Engine Room)
>>
Wiring Diagram - IPDM E/R -
Wiring Diagram - IPDM E/R -

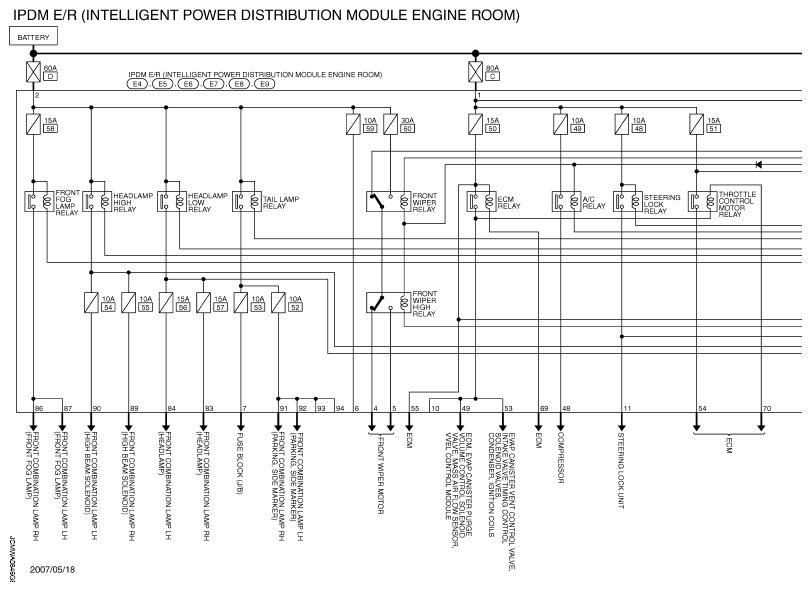

Fig 1: IPDM E/R - Wiring Diagram (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: IPDM E/R - Wiring Diagram (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

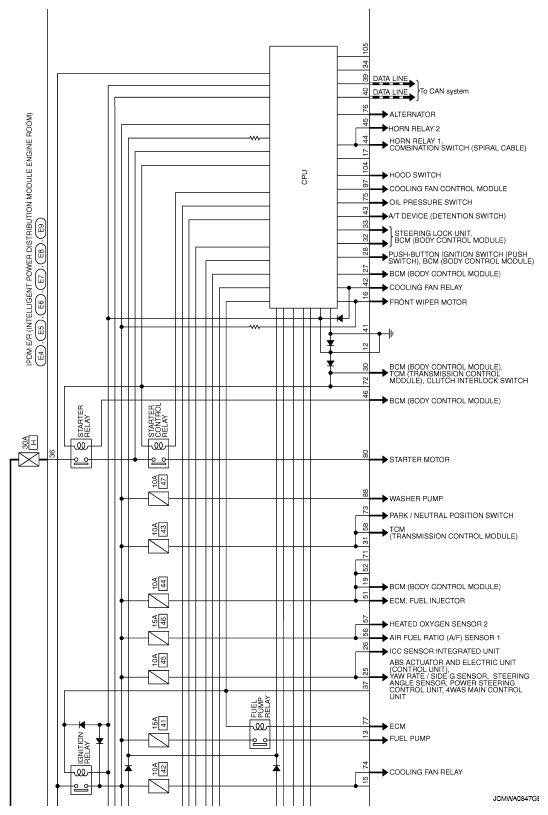

Fig 3: IPDM E/R - Wiring Diagram (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

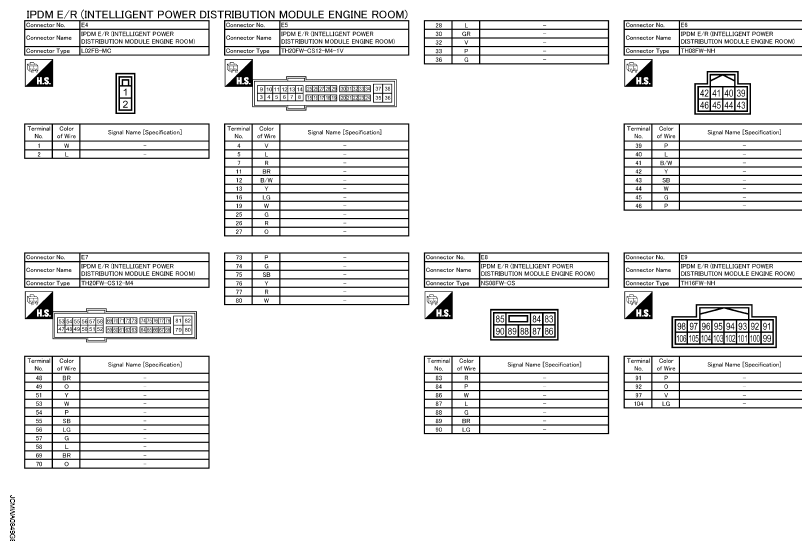

Fig 4: Identifying IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
