Wiring Diagram - METER -

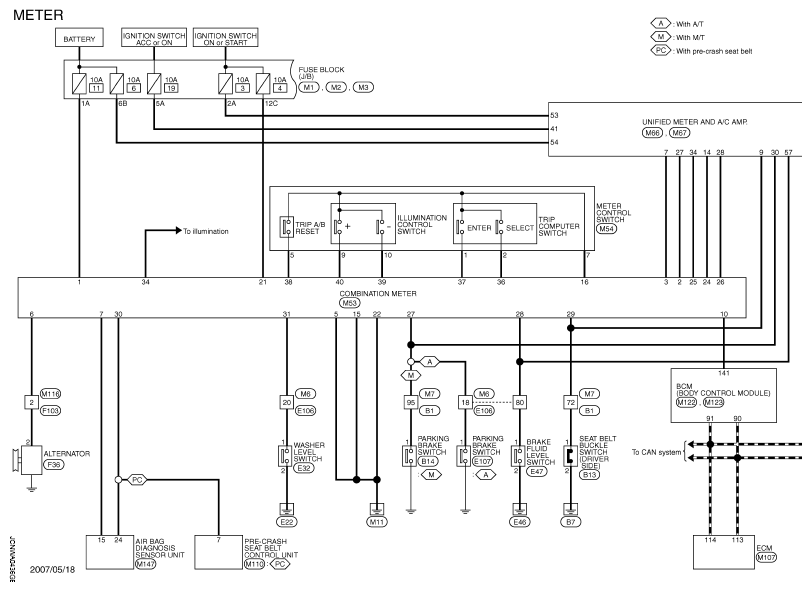

Fig 1: Meter - Wiring Diagram (1 Of 3)

G05737139

Courtesy of NISSAN MOTOR CO., U.S.A.

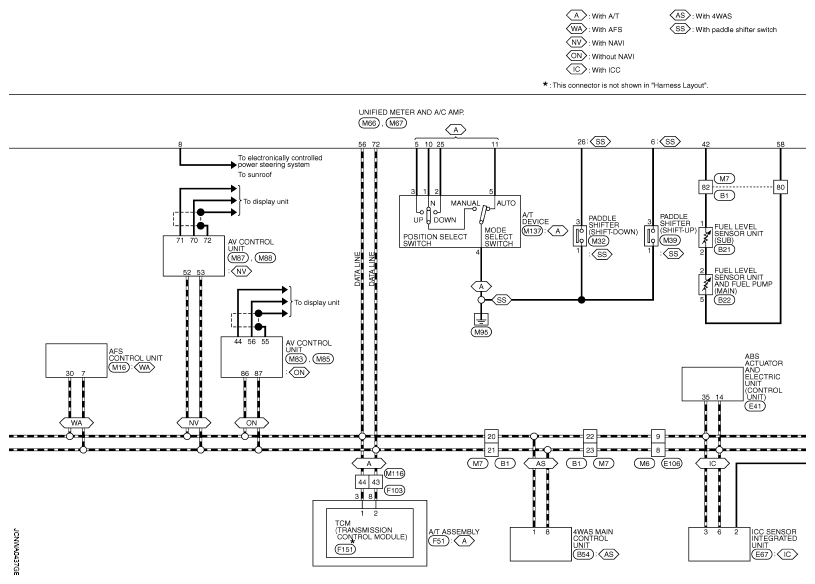

Fig 2: Meter - Wiring Diagram (2 Of 3)

G05737140

Courtesy of NISSAN MOTOR CO., U.S.A.

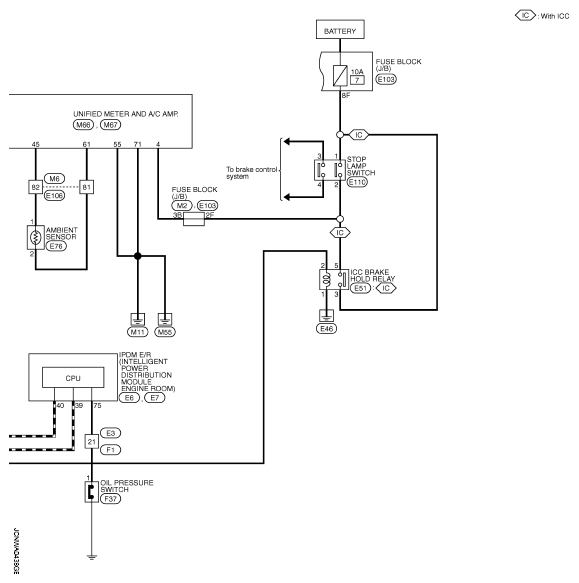

Fig 3: Meter - Wiring Diagram (3 Of 3)

G05737141

Courtesy of NISSAN MOTOR CO., U.S.A.

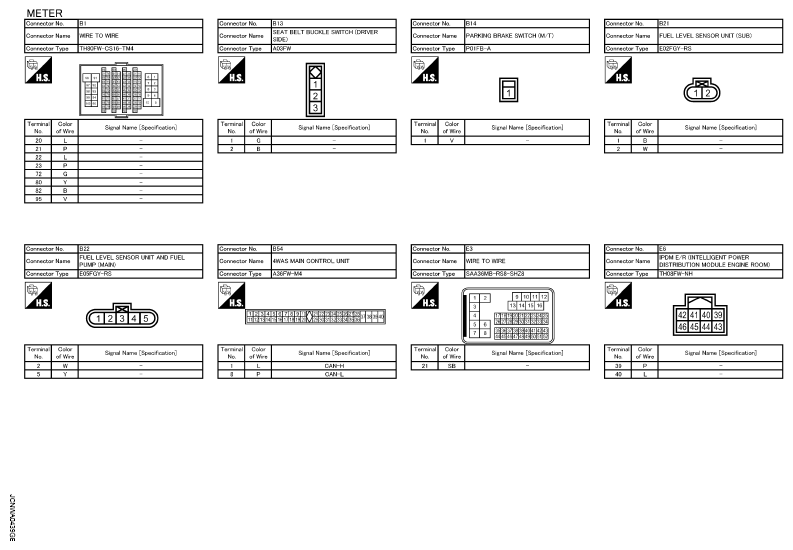

Fig 4: Identifying Meter Connectors (1 Of 7)

G05737142

Courtesy of NISSAN MOTOR CO., U.S.A.

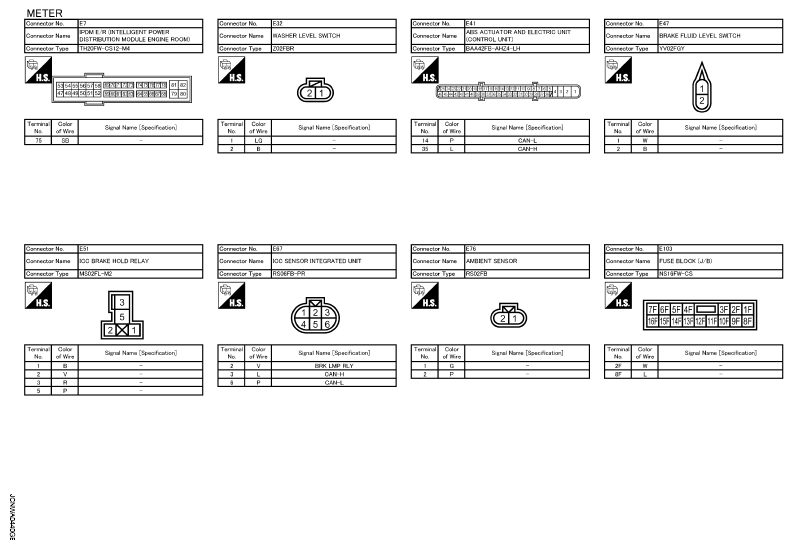

Fig 5: Identifying Meter Connectors (2 Of 7)

G05737143

Courtesy of NISSAN MOTOR CO., U.S.A.

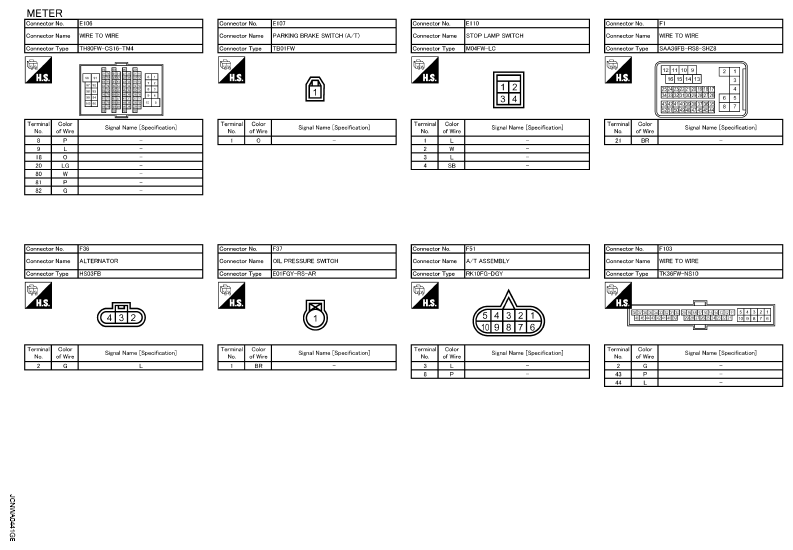

Fig 6: Identifying Meter Connectors (3 Of 7)

G05737144

Courtesy of NISSAN MOTOR CO., U.S.A.

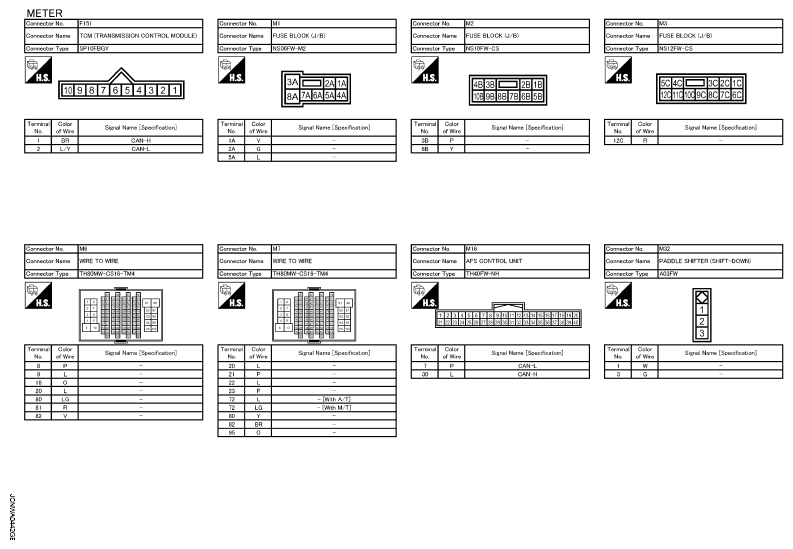

Fig 7: Identifying Meter Connectors (4 Of 7)

G05737145

Courtesy of NISSAN MOTOR CO., U.S.A.

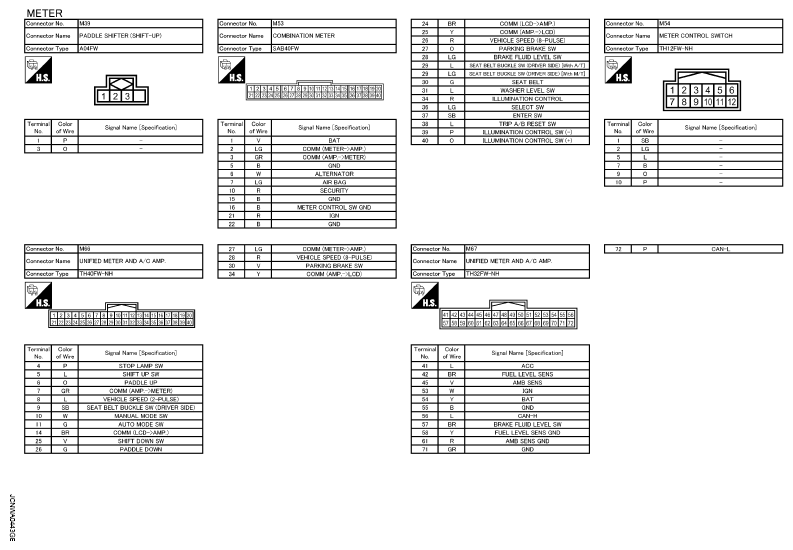

Fig 8: Identifying Meter Connectors (5 Of 7)

G05737146

Courtesy of NISSAN MOTOR CO., U.S.A.

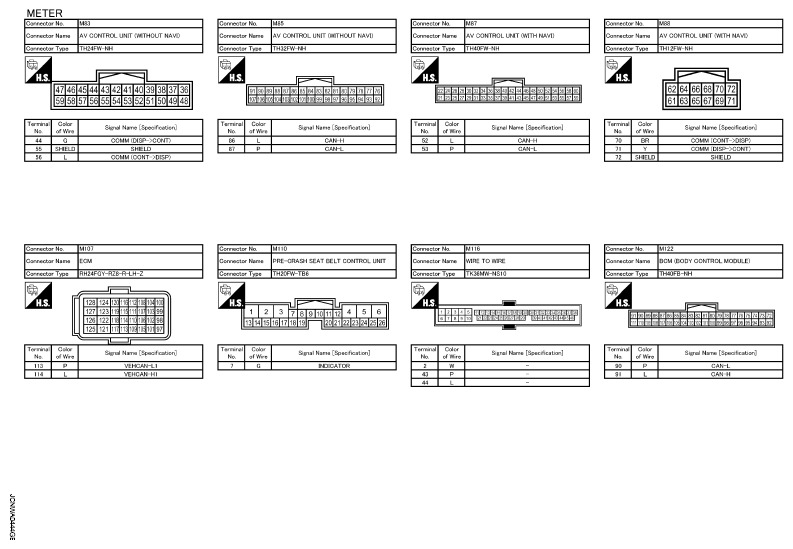

Fig 9: Identifying Meter Connectors (6 Of 7)

G05737147

Courtesy of NISSAN MOTOR CO., U.S.A.

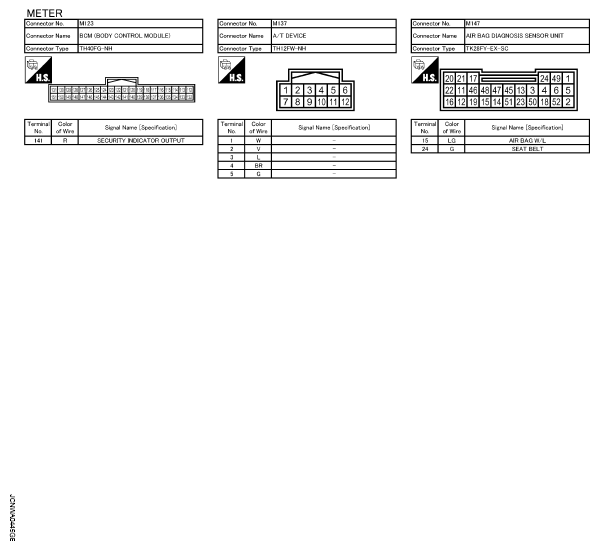

Fig 10: Identifying Meter Connectors (7 Of 7)

G05737148

Courtesy of NISSAN MOTOR CO., U.S.A.
