Wiring Diagram - BCM -

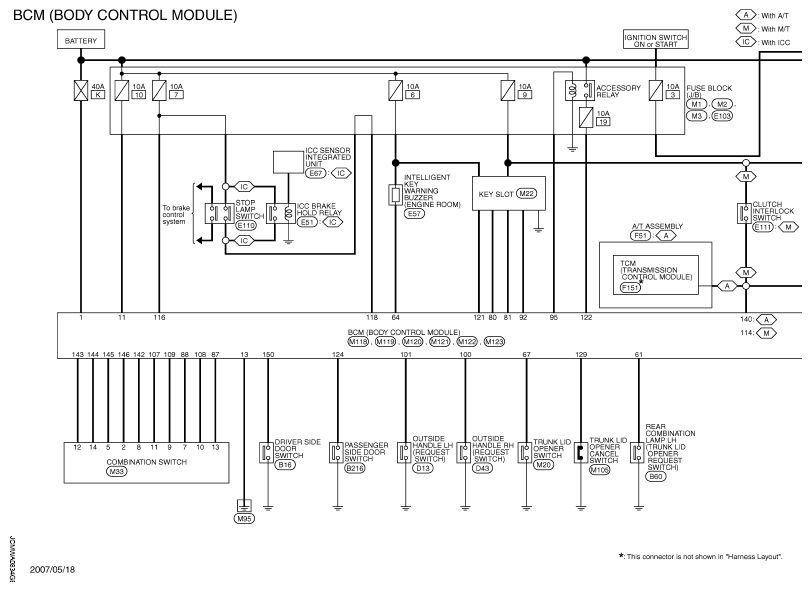

Fig 1: BCM - Wiring Diagram (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

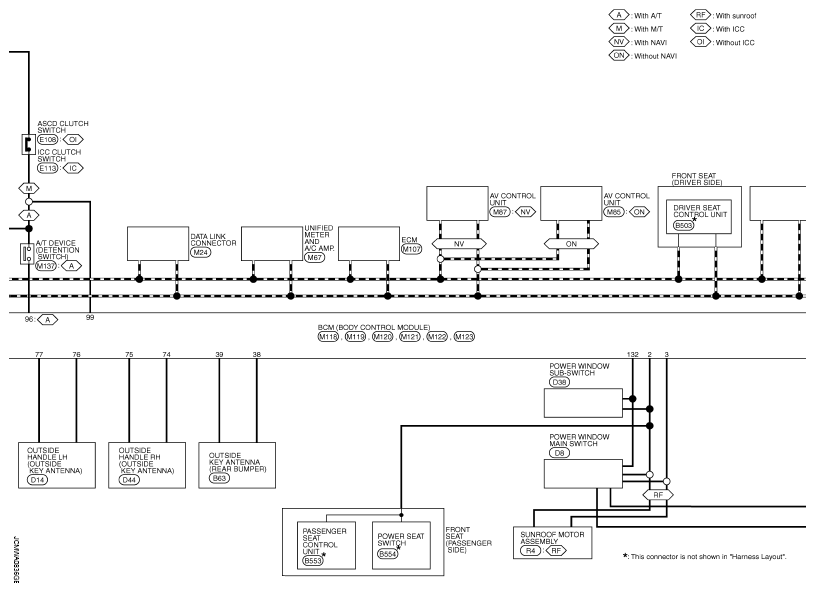

Fig 2: BCM - Wiring Diagram (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

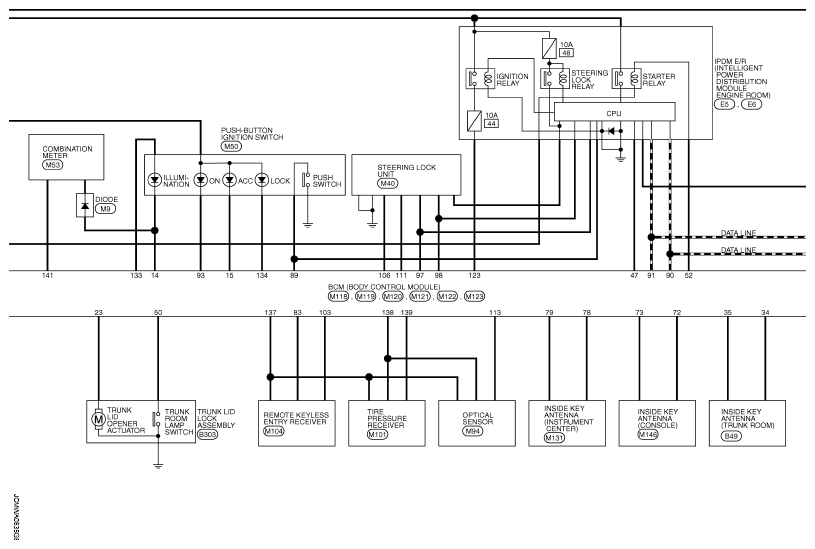

Fig 3: BCM - Wiring Diagram (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

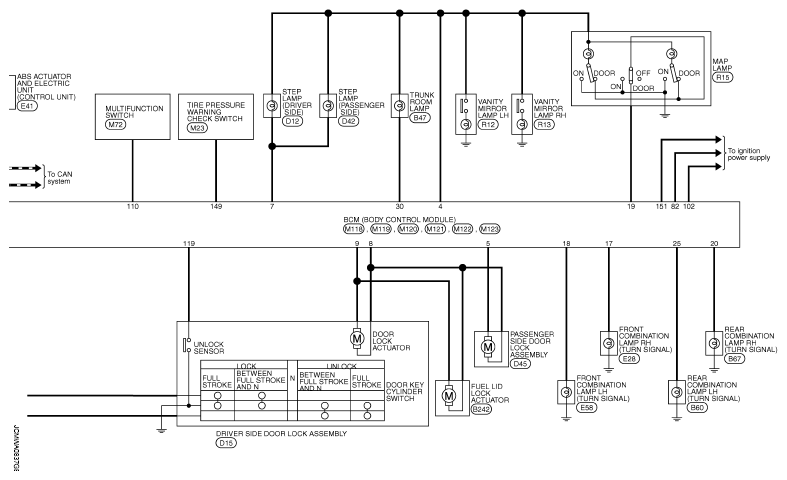

Fig 4: BCM - Wiring Diagram (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

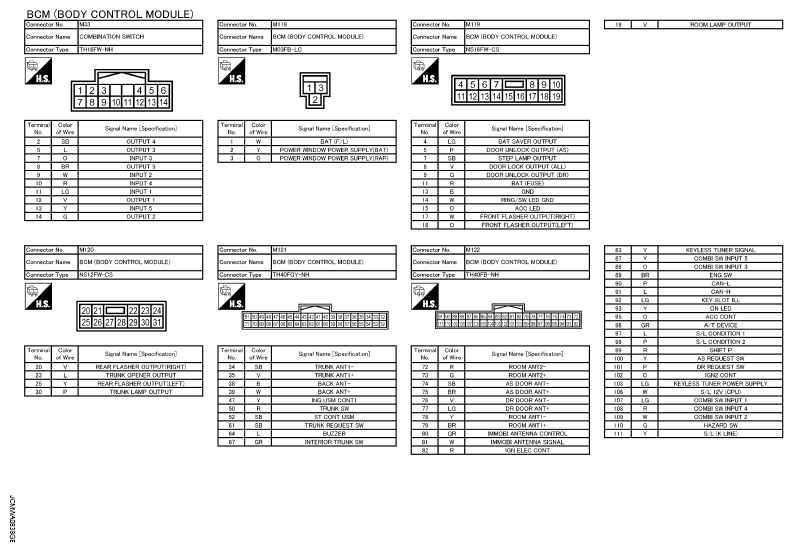

Fig 5: Identifying BCM (Body Control Module) Connectors (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

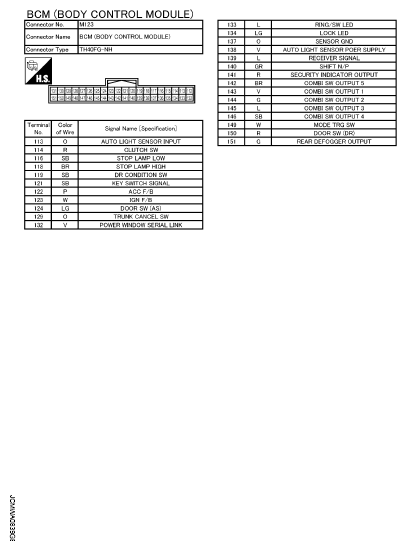

Fig 6: Identifying BCM (Body Control Module) Connectors (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
