Removal and Installation: Removal

  1. Put selector lever in drive position (A/T models only).
  2. Remove selector lever knob (A/T models only). Refer to "REMOVAL AND INSTALLATION ".
  3. Remove shift lever knob (M/T models only). Refer to "REMOVAL AND INSTALLATION ".
  4. Remove console finisher.

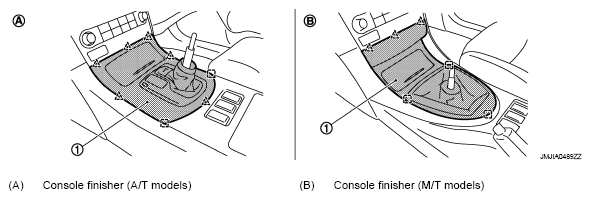

    Fig 1: Identifying Console Finisher
    G05735799Courtesy of NISSAN MOTOR CO., U.S.A.
    • Remove clips from rear of console finisher (1), and then remove pawl of front.
    • Pull console finisher (1) upward to disengage from center console.
    • Disconnect harness connectors.

    Δ : Pawl

    □ : Metal clip

  5. Remove screws (B) of center console front side with screw driver (A).

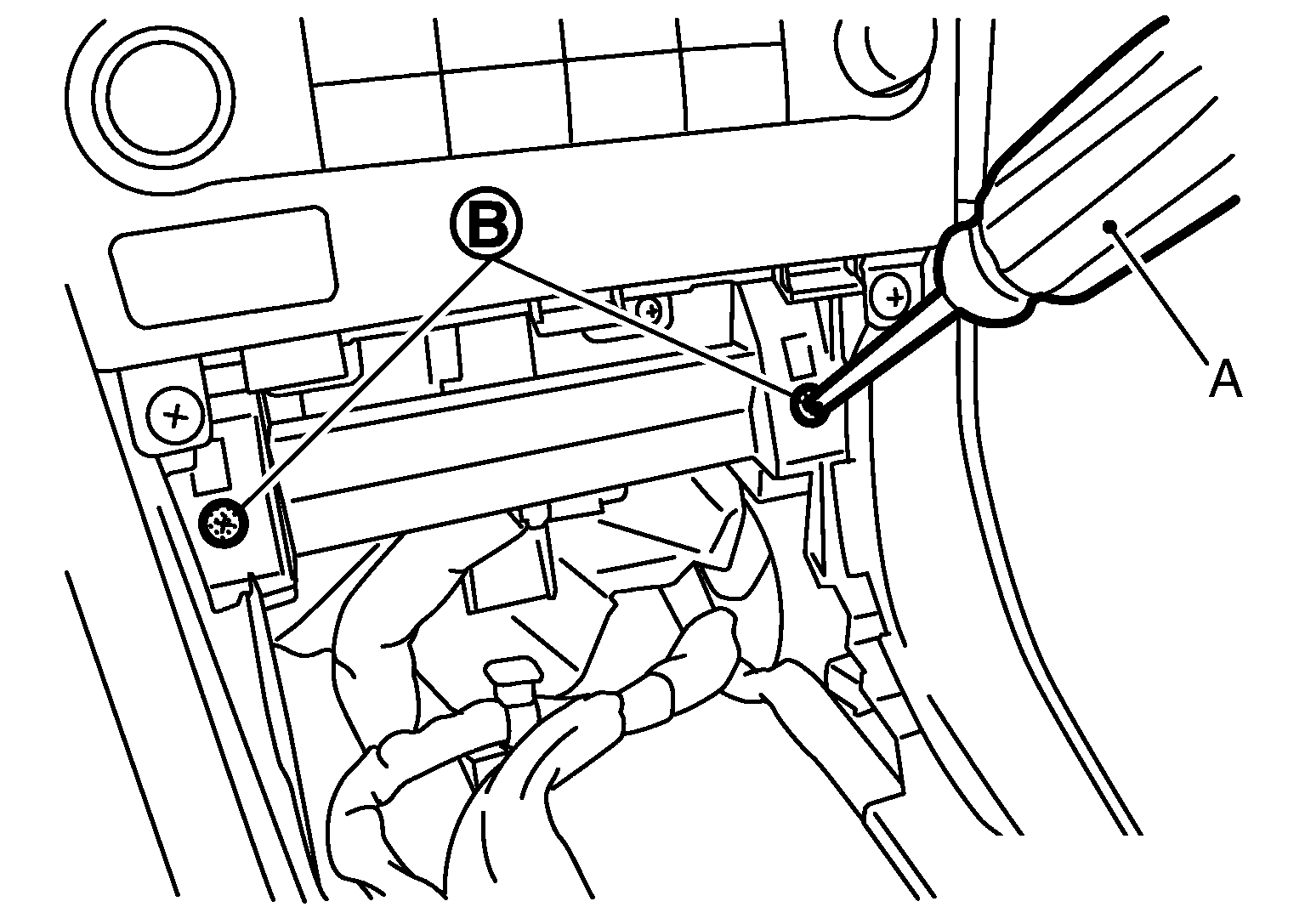

    Fig 2: Removing Screws Of Center Console Front Side
    G05224633Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Remove rear upper console assembly (A/T models only).
    • Slide to front, pull up rear upper console assembly (1), and disconnect metal clips.
    • Disconnect heated seat switch harness connectors. (with heated seat)

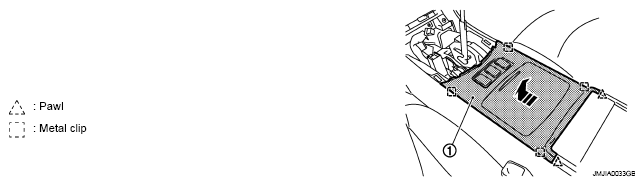

    Fig 3: Removing Rear Upper Console Assembly (A/T Models Only)
    G05735801Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Disconnect auxiliary input jacks connector (A) and power socket harness connector (B) (A/T models only).
    Fig 4: Identifying Auxiliary Input Jacks Connector And Power Socket Harness Connector
    G05224598Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Disconnect console sub harness connectors (A) (M/T models only).

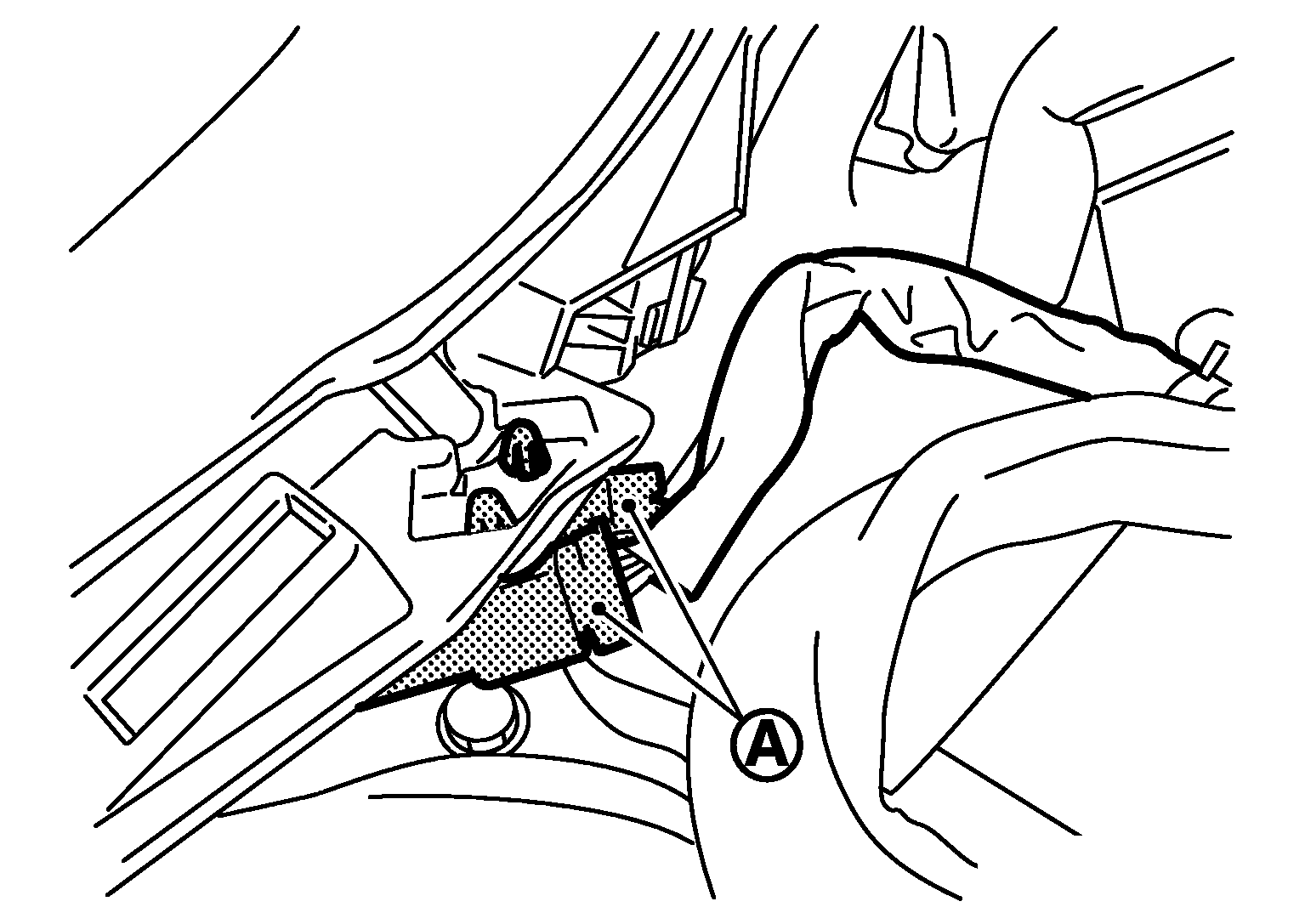

    Fig 5: Identifying Console Sub Harness Connectors
    G05224599Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Disconnect heated seat switch connector (A) (M/T models with heated seat only).

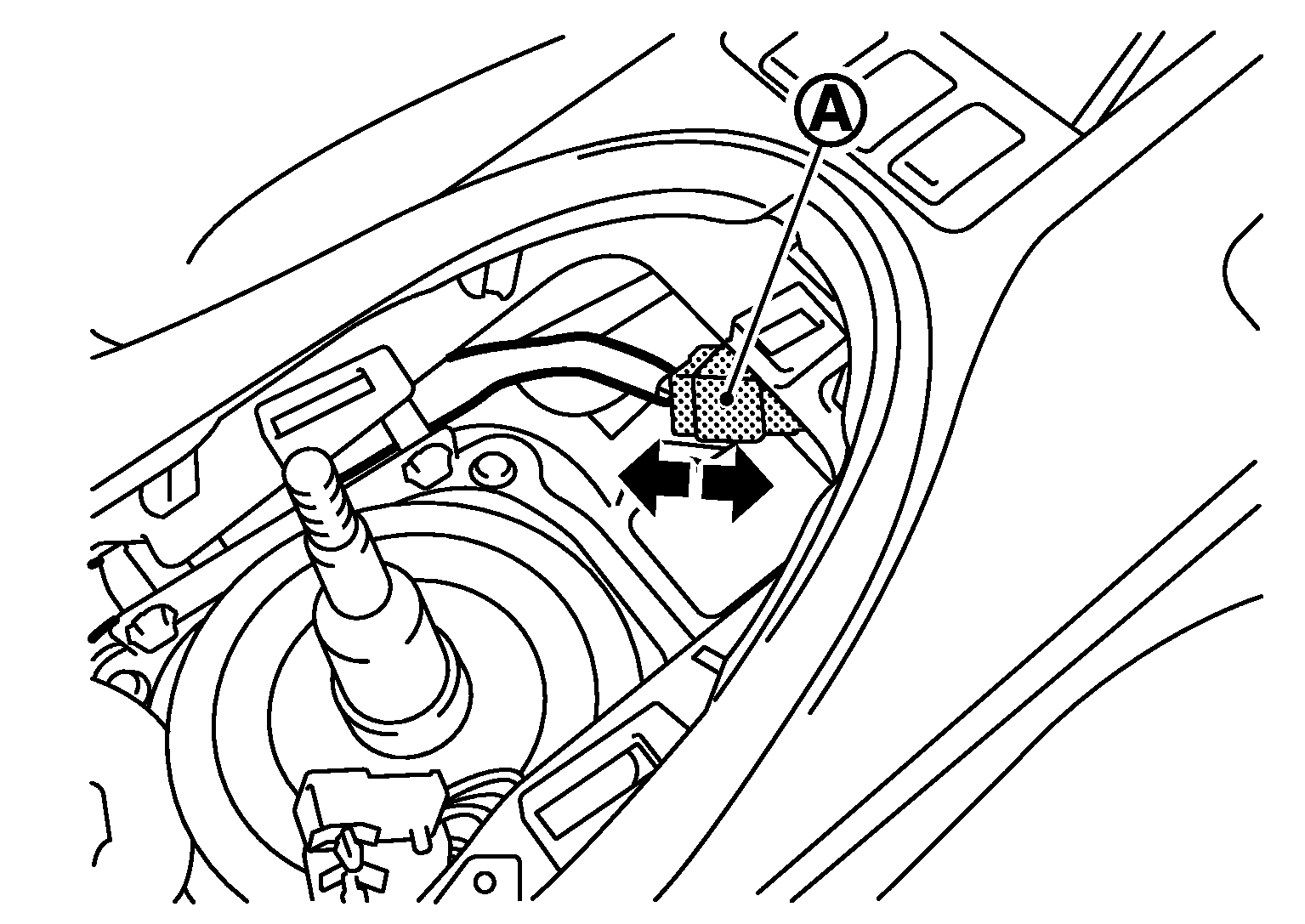

    Fig 6: Identifying Heated Seat Switch Connector
    G05224600Courtesy of NISSAN MOTOR CO., U.S.A.

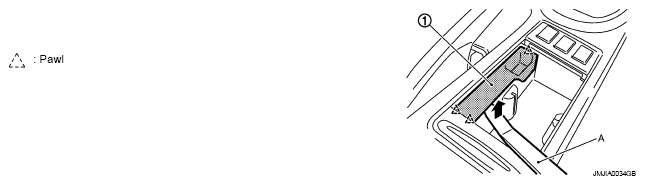

  10. Remove coin pocket fixing pawl using a remover tool (A), and then remove coin pocket (1) (M/T models only).
    Fig 7: Removing Coin Pocket Fixing Pawl
    G05735805Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Insert a deep-well socket wrench (A) to rotate adjusting nut to loosen cable sufficiently (M/T models only).

    Refer to "LEVER TYPE : ADJUSTMENT ".

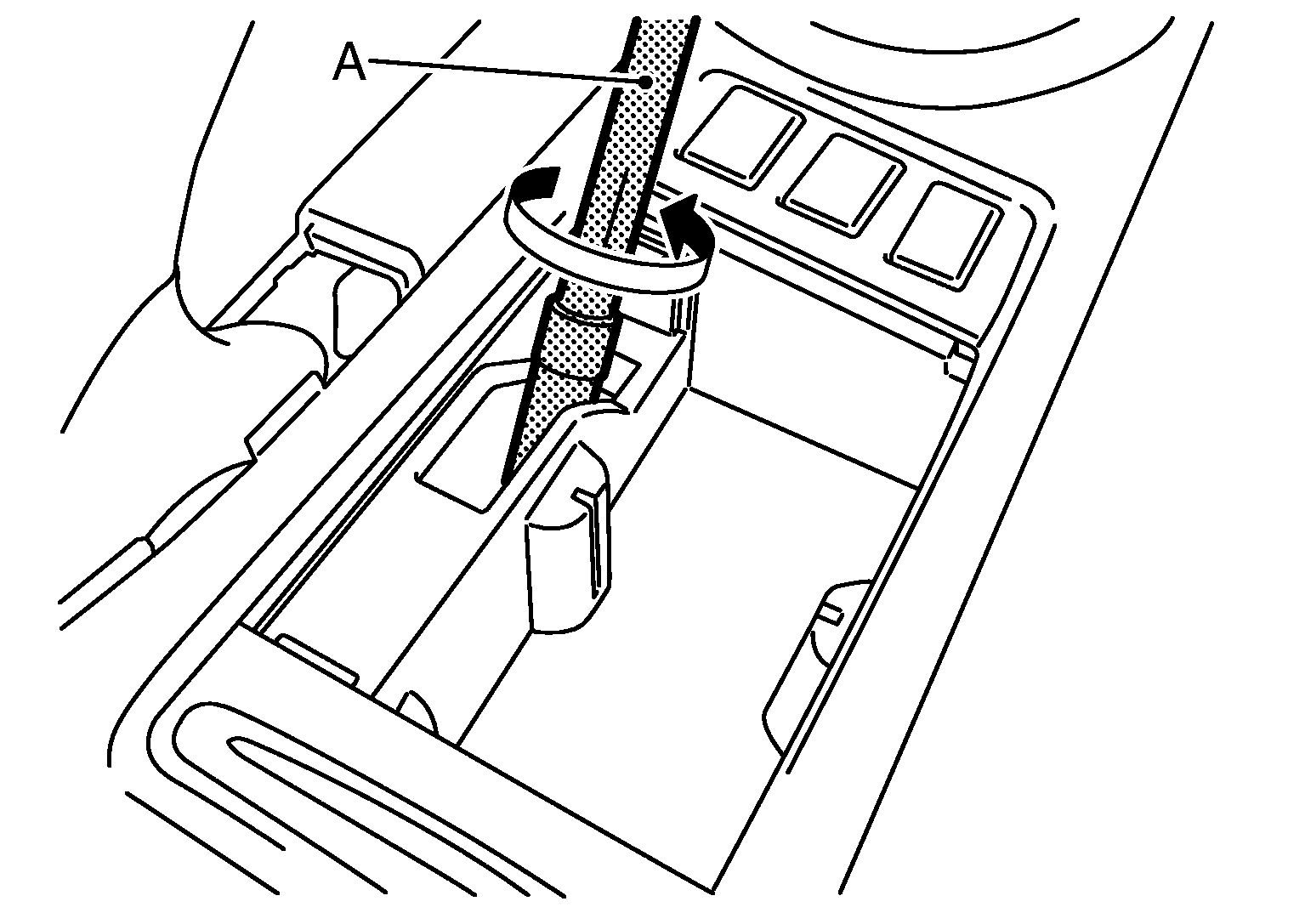

    Fig 8: Rotating Adjusting Nut
    G05224602Courtesy of NISSAN MOTOR CO., U.S.A.
  12. Remove console rear finisher.
    • Pull back the console rear finisher (1).
    • Disconnect inside key antenna connector (A).
    Fig 9: Pulling Console Rear Finisher
    G05735807Courtesy of NISSAN MOTOR CO., U.S.A.
  13. Remove console mask.

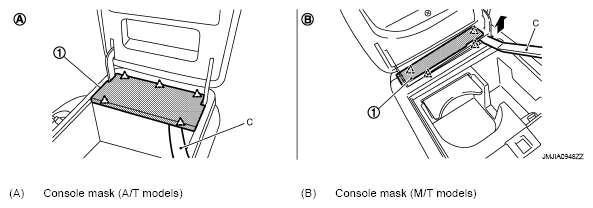

    Fig 10: Removing Console Mask
    G05735808Courtesy of NISSAN MOTOR CO., U.S.A.
    • Open the console lid.
    • Pull up console mask (1) by using a remover tool (C), and disengage pawls.

    Δ : Pawl

  14. Remove screws (C) of center console rear side, and then remove center console assembly (1).

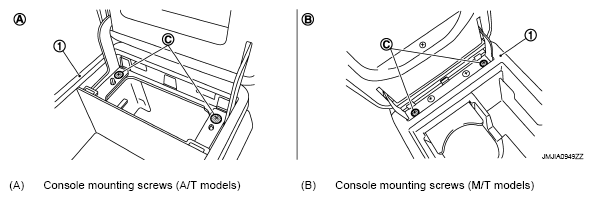

Fig 11: Identifying Console Mounting Screw
G05735809Courtesy of NISSAN MOTOR CO., U.S.A.
