INFORMATION DISPLAY : Component Parts Location

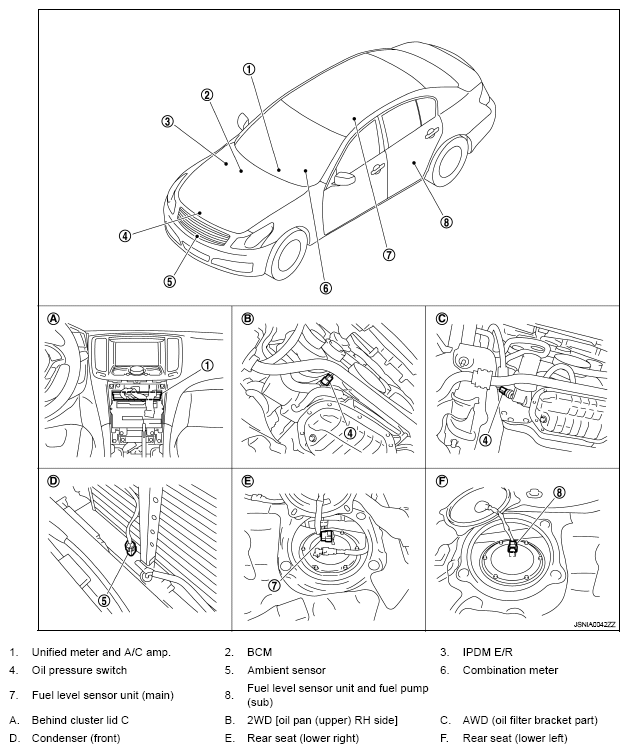

Fig 1: Identifying Information Display Components Location

G05223661

Courtesy of NISSAN MOTOR CO., U.S.A.
