Disassembly and Assembly of Front Wiper Drive Assembly: Notes

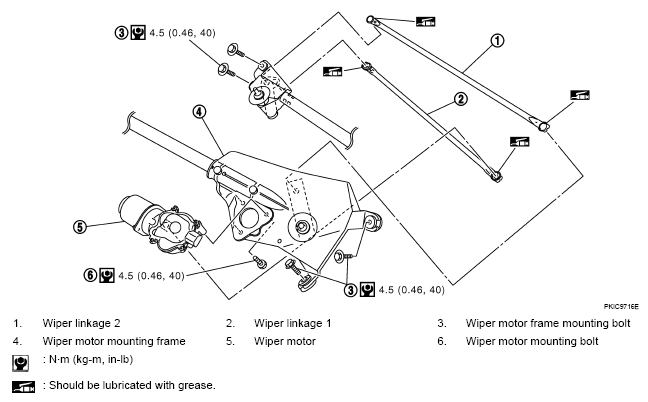

Fig 1: Front Wiper Drive Replacement Components With Torque Specifications

G05222546

Courtesy of NISSAN MOTOR CO., U.S.A.
