Component Parts Location

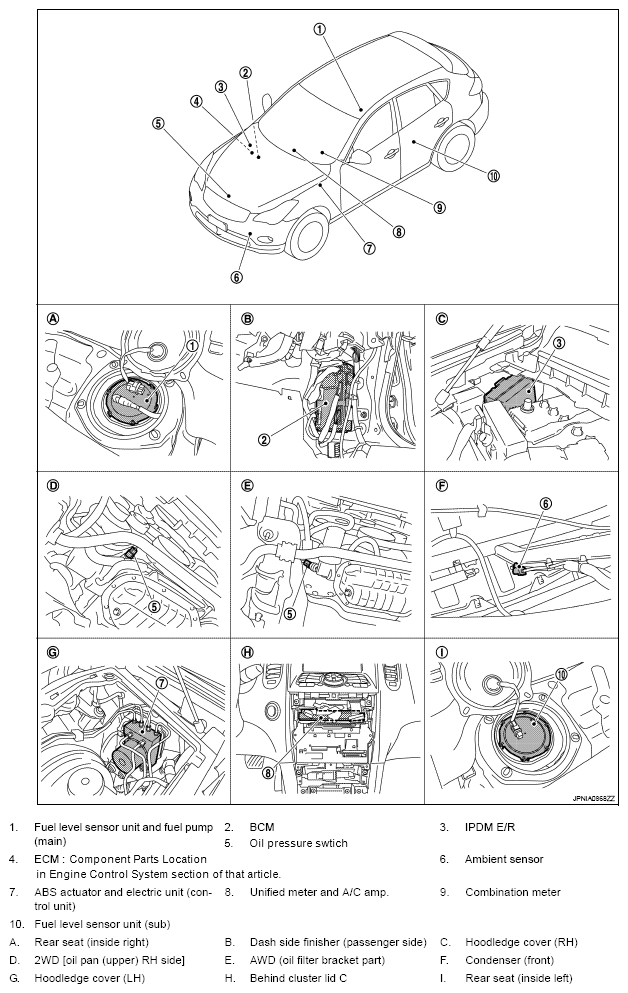

Fig 1: Identifying ODO/Trip Meter Component Location

G05731193

Courtesy of NISSAN MOTOR CO., U.S.A.
