Wiring Diagram - METER

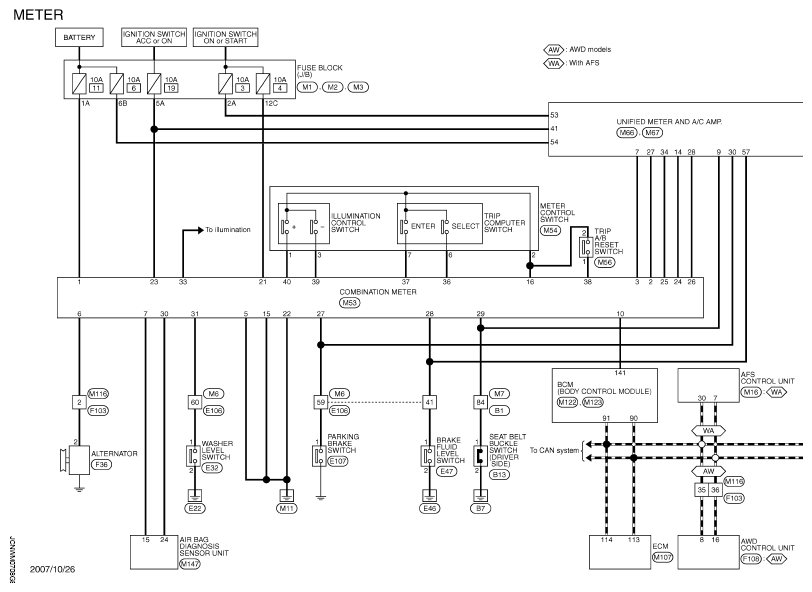

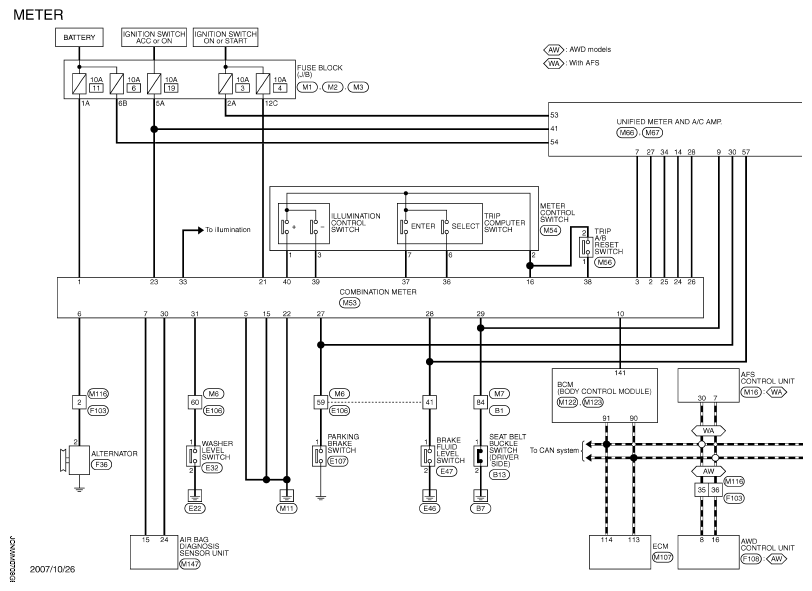

Fig 1: Identifying Meter - Wiring Diagram (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

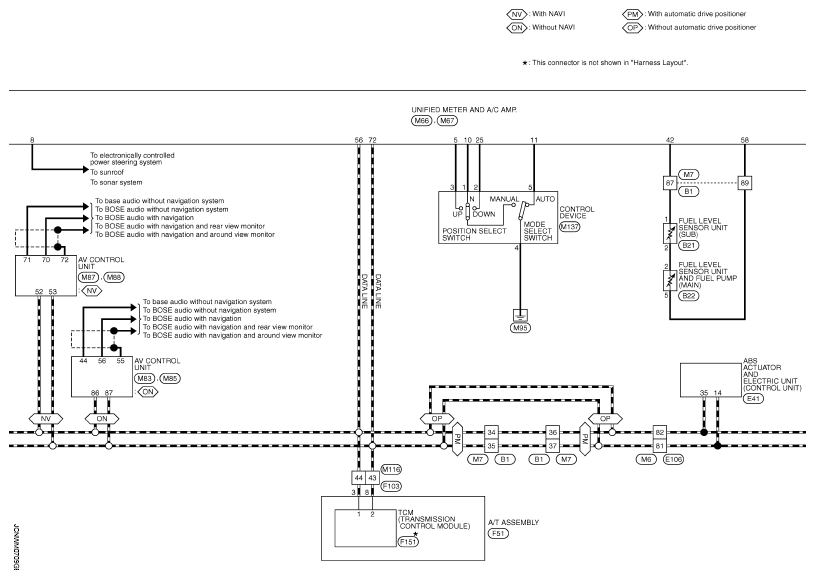

Fig 2: Identifying Meter - Wiring Diagram (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

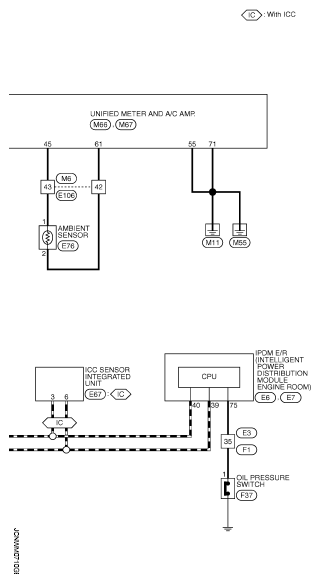

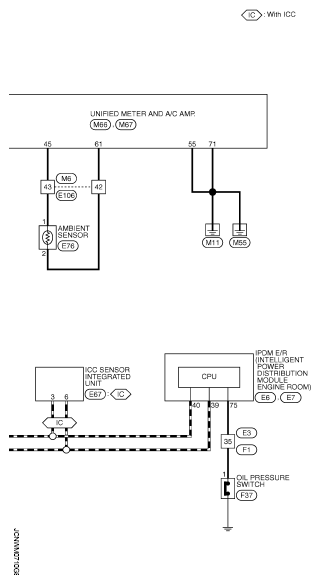

Fig 3: Identifying Meter - Wiring Diagram (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

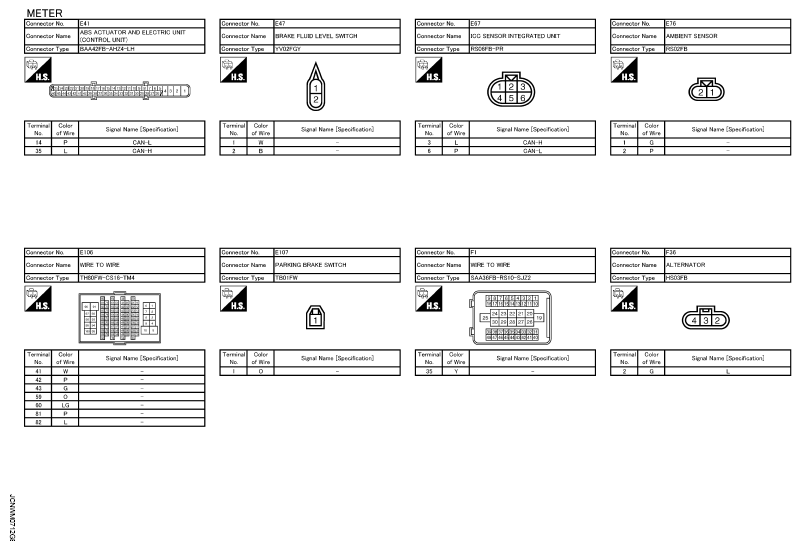

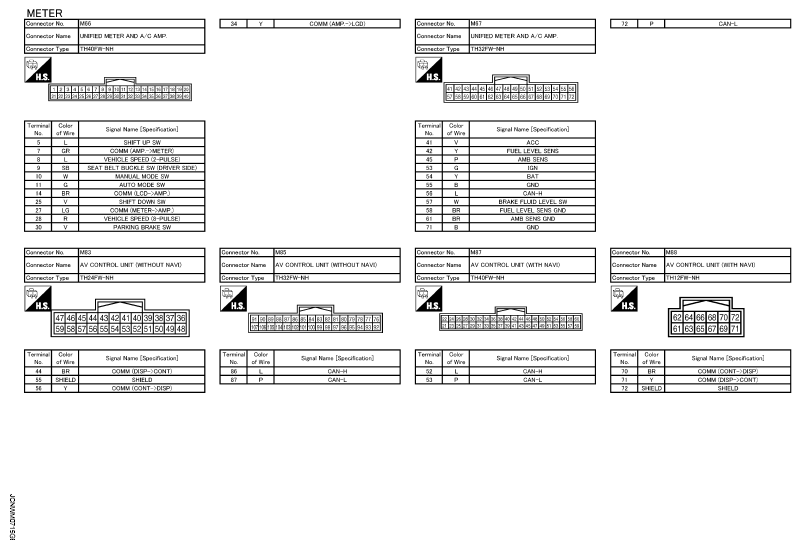

Fig 4: Identifying Meter Connector Terminals (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

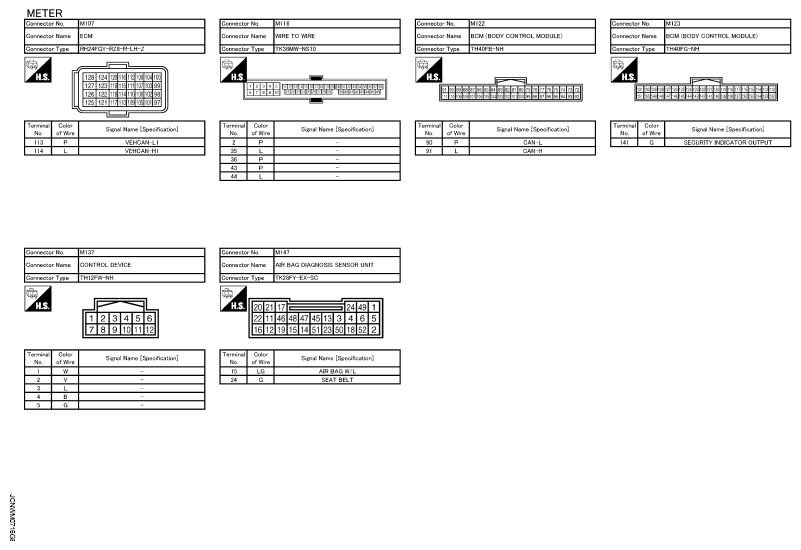

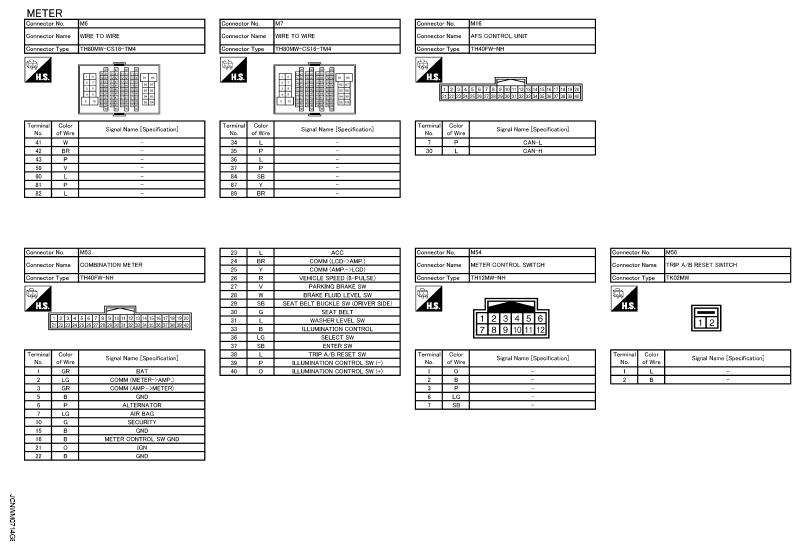

Fig 5: Identifying Meter Connector Terminals (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

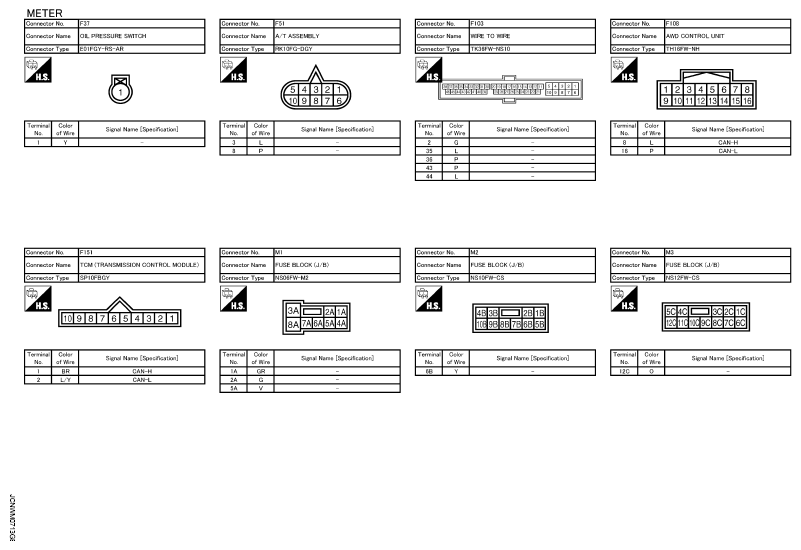

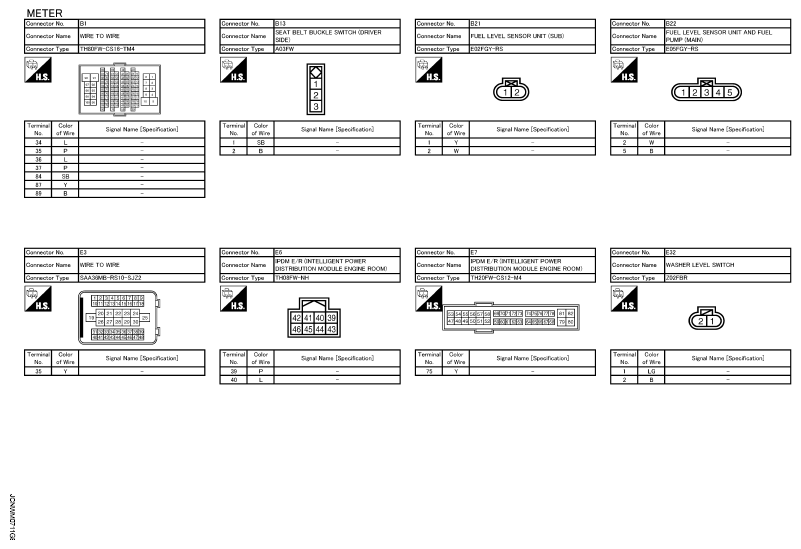

Fig 6: Identifying Meter Connector Terminals (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Identifying Meter Connector Terminals (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Identifying Meter Connector Terminals (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying Meter Connector Terminals (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.
