Wiring Diagram - IPDM E/R
Wiring Diagram - IPDM E/R

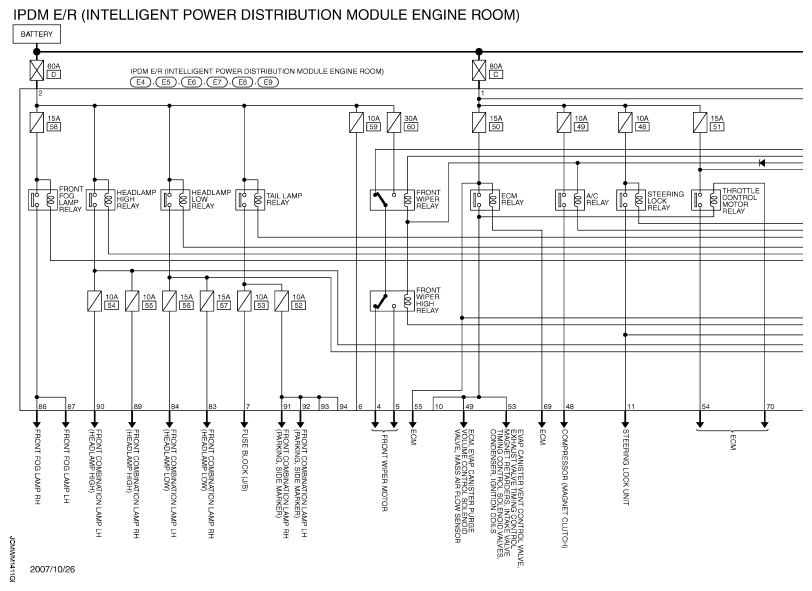

Fig 1: Identifying IPDM E/R - Wiring Diagram (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

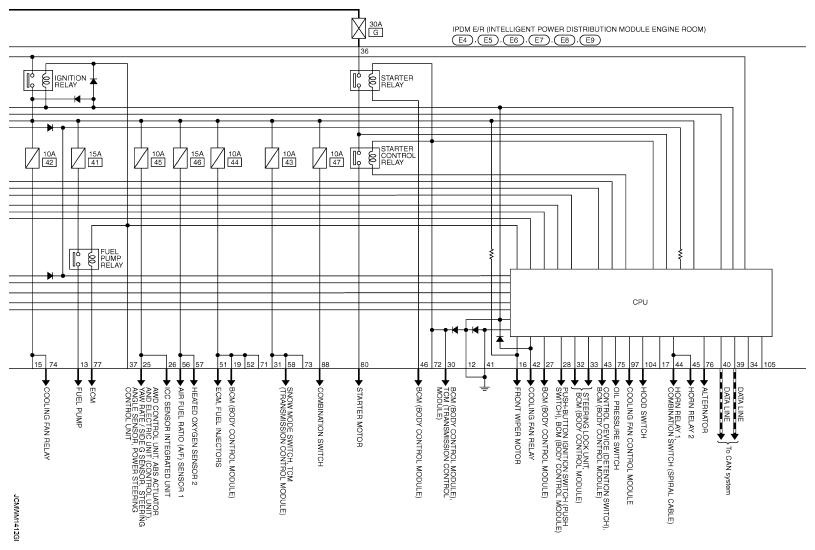

Fig 2: Identifying IPDM E/R - Wiring Diagram (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Identifying IPDM E/R - Wiring Diagram (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.

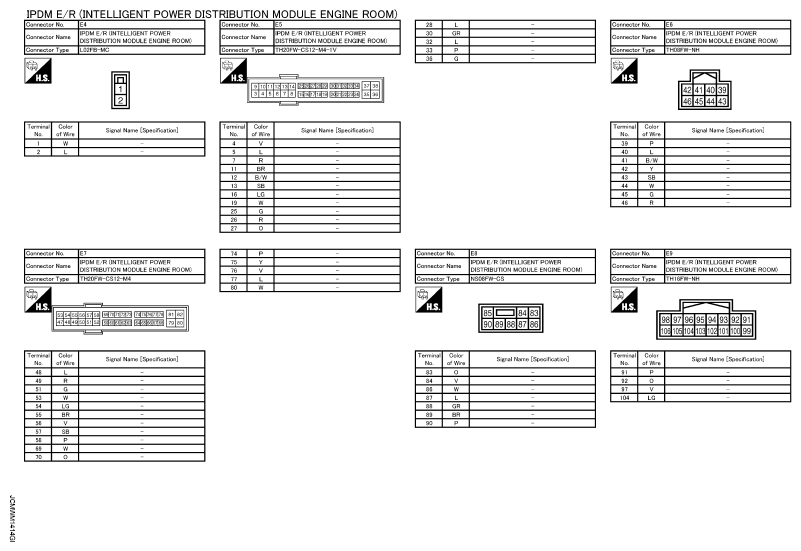

Fig 4: Identifying IPDM E/R Connector Terminals
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
