Wiring Diagram - BCM

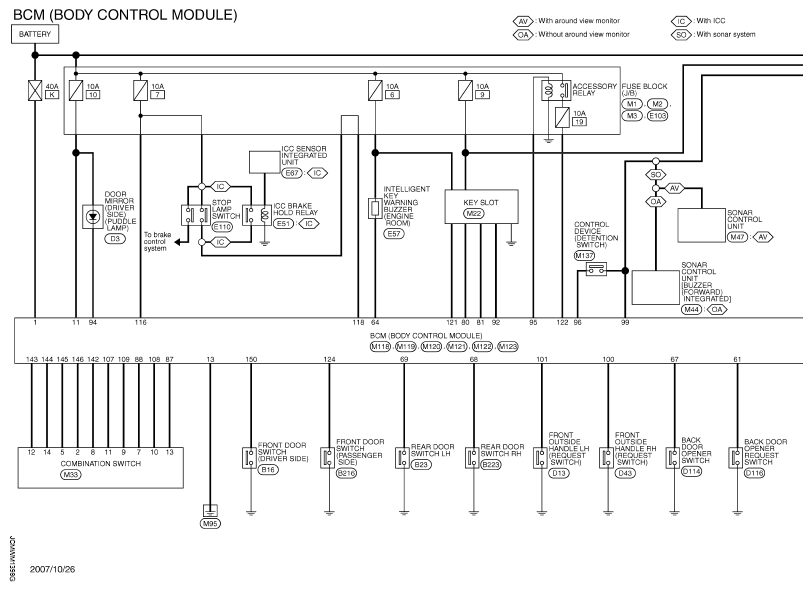

Fig 1: Identifying BCM - Wiring Diagram (1 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

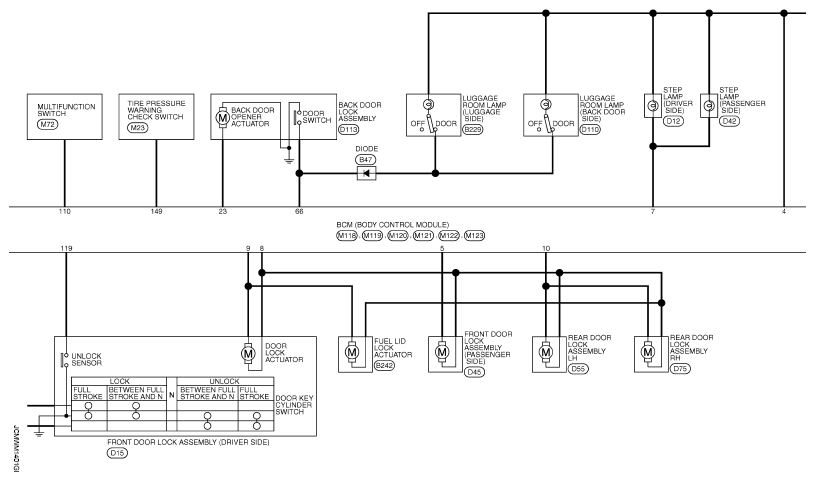

Fig 2: Identifying BCM - Wiring Diagram (2 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

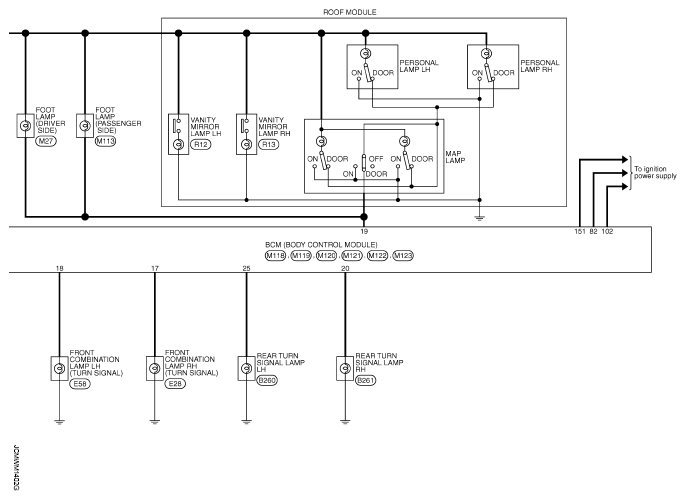

Fig 3: Identifying BCM - Wiring Diagram (3 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

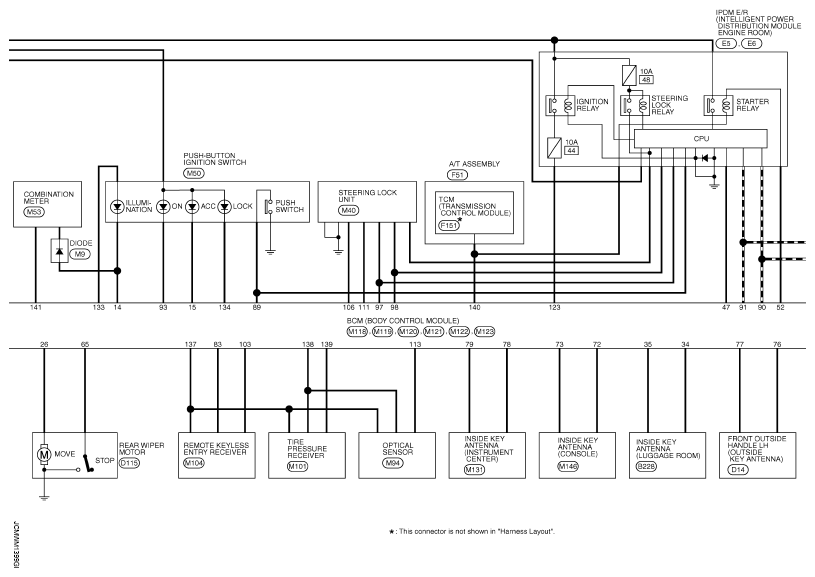

Fig 4: Identifying BCM - Wiring Diagram (4 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

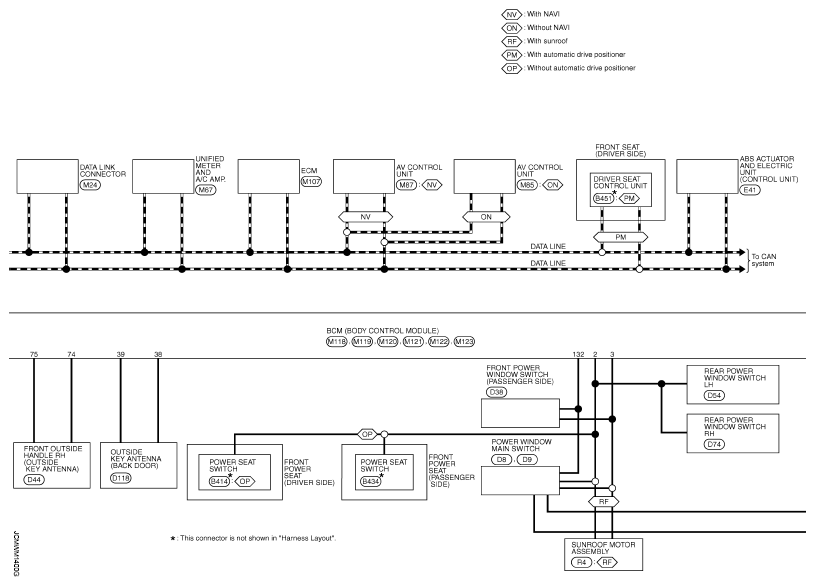

Fig 5: Identifying BCM - Wiring Diagram (5 Of 5)

Courtesy of NISSAN MOTOR CO., U.S.A.

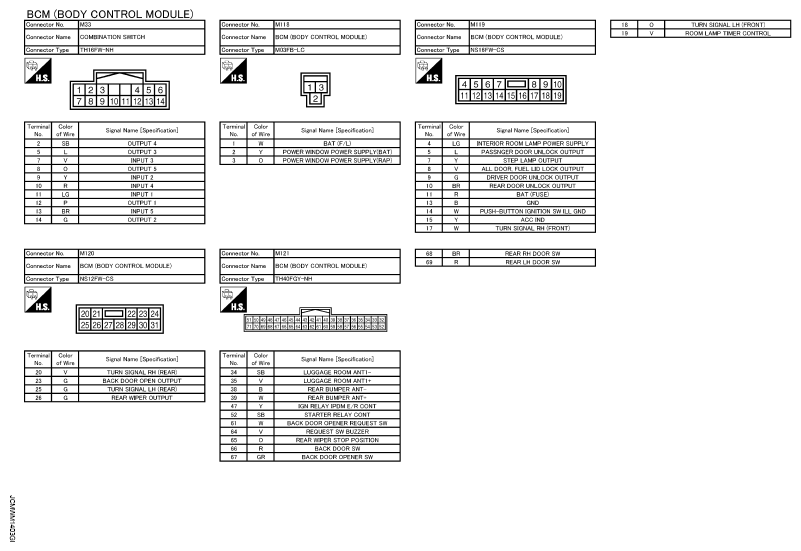

Fig 6: Identifying BCM Connector Terminals (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

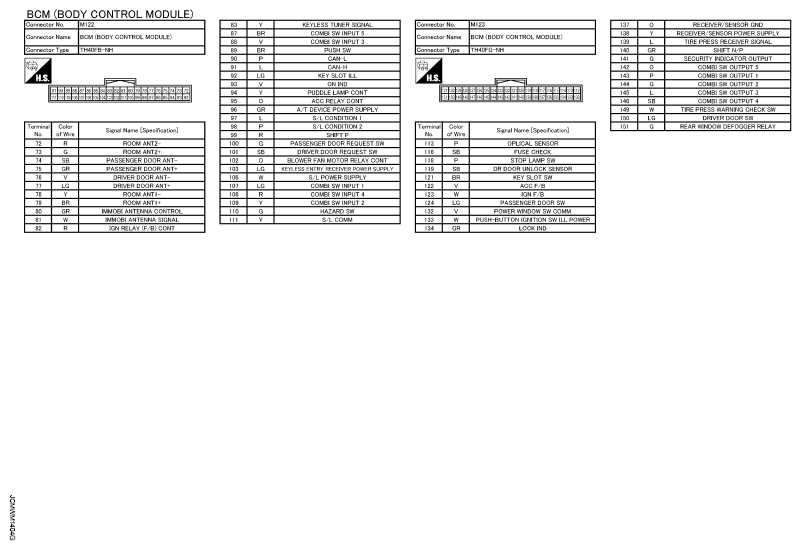

Fig 7: Identifying BCM Connector Terminals (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
