Home >> Infiniti >> 2007 >> G35 x >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Warning Chime System (Sedan) >> Function Diagnosis >> Warning Chime System >> Seat Belt Warning Chime >> SEAT BELT WARNING CHIME : Component Parts Location

SEAT BELT WARNING CHIME : Component Parts Location

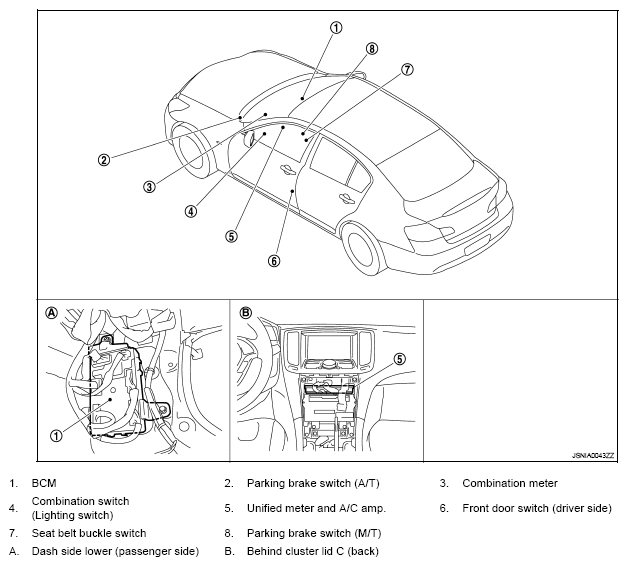

Fig 1: Identifying Seat Belt Warning Chime Components Location

G05223825
