PARKING BRAKE RELEASE WARNING CHIME : Component Parts Location

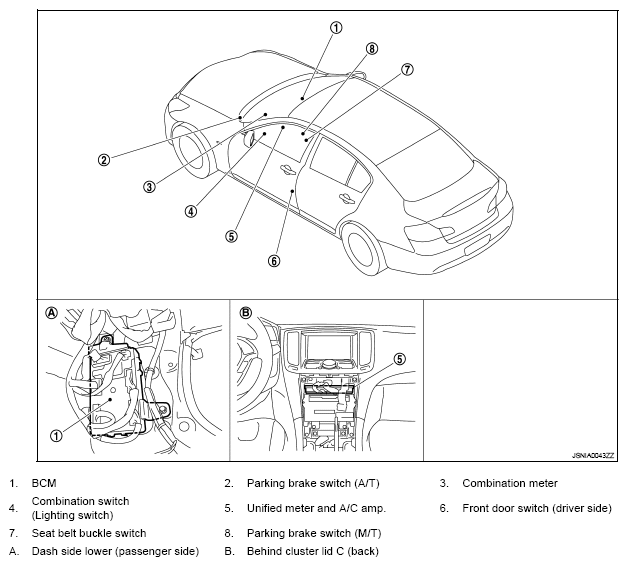

Fig 1: Identifying Parking Brake Release Warning Chime Components Location

G05223827
