Wiring Diagram - WARNING CHIME -

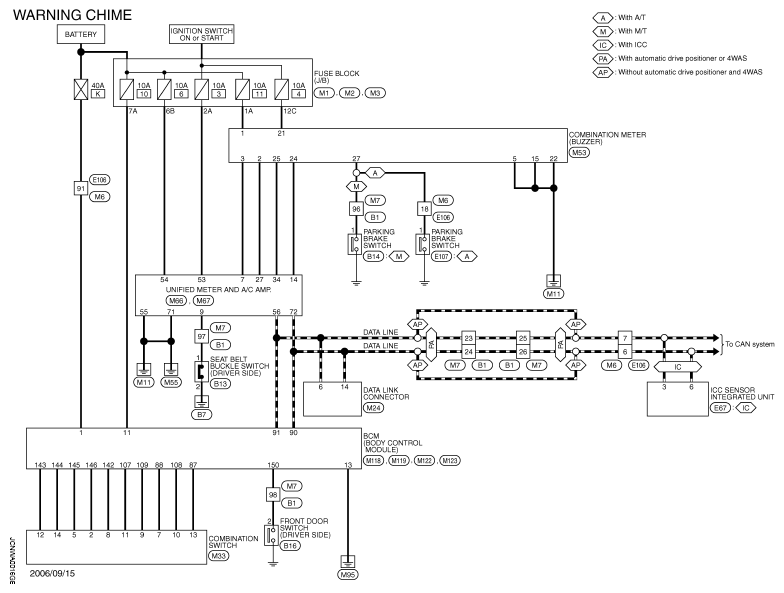

Fig 1: Warning Chime System - Wiring Diagram
G05223828

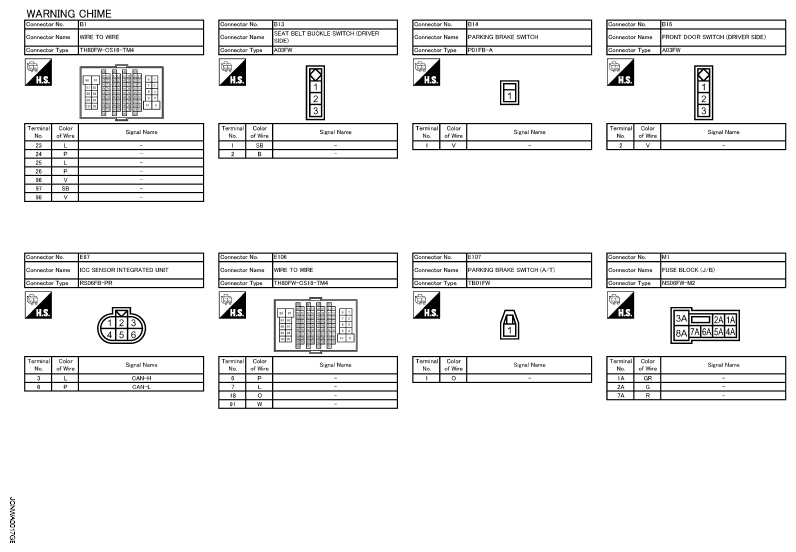

Fig 2: Identifying Warning Chime System Connector Terminals (1 Of 3)
G05223829

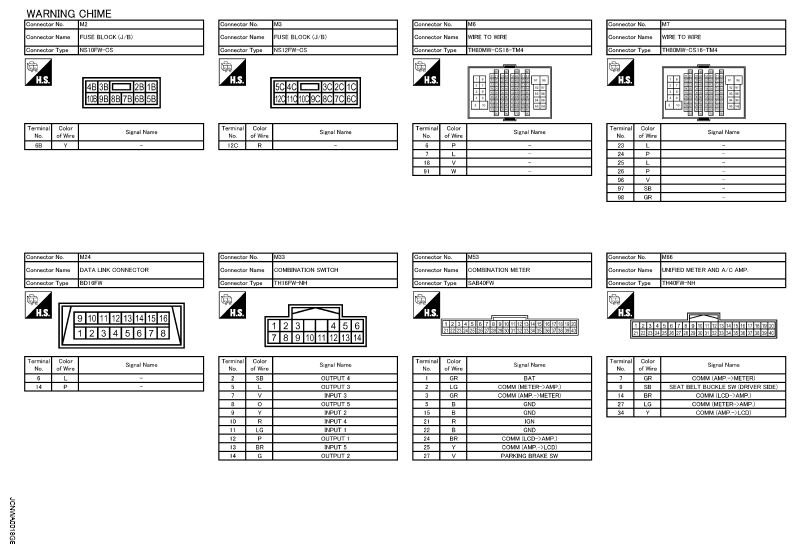

Fig 3: Identifying Warning Chime System Connector Terminals (2 Of 3)
G05223830

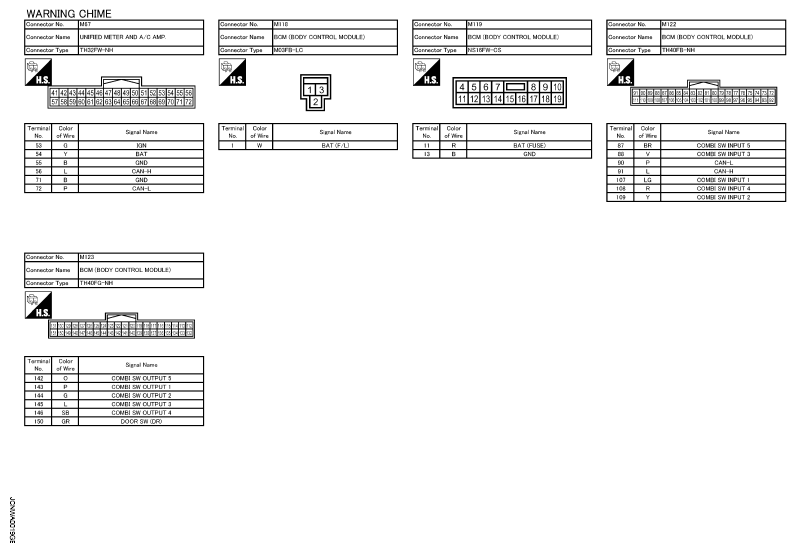

Fig 4: Identifying Warning Chime System Connector Terminals (3 Of 3)
G05223831
