Wiring Diagram - WIPER -

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

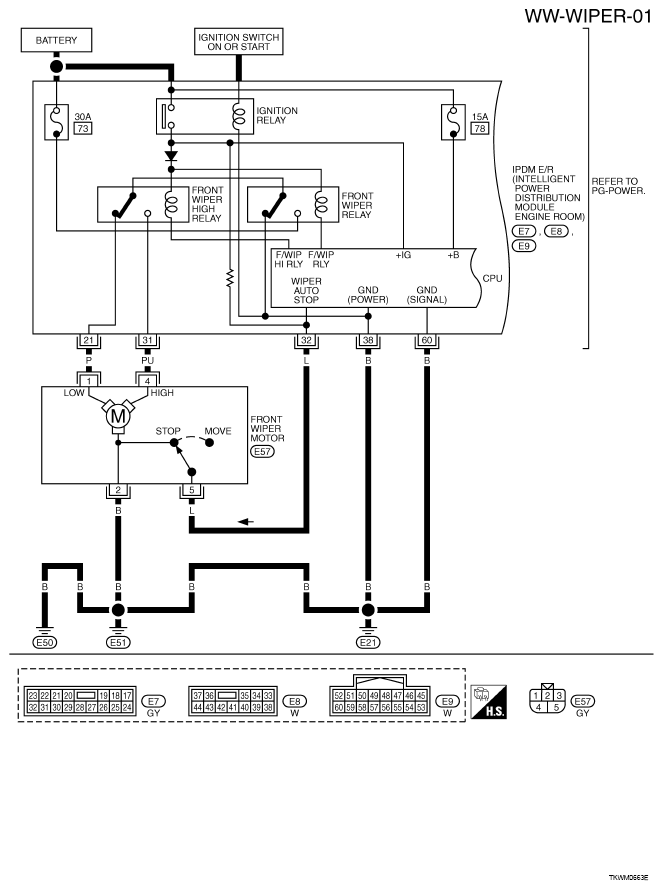

Fig 1: Identifying WW-WIPER-01 - Wiring Diagram
G05222499Courtesy of NISSAN MOTOR CO., U.S.A.

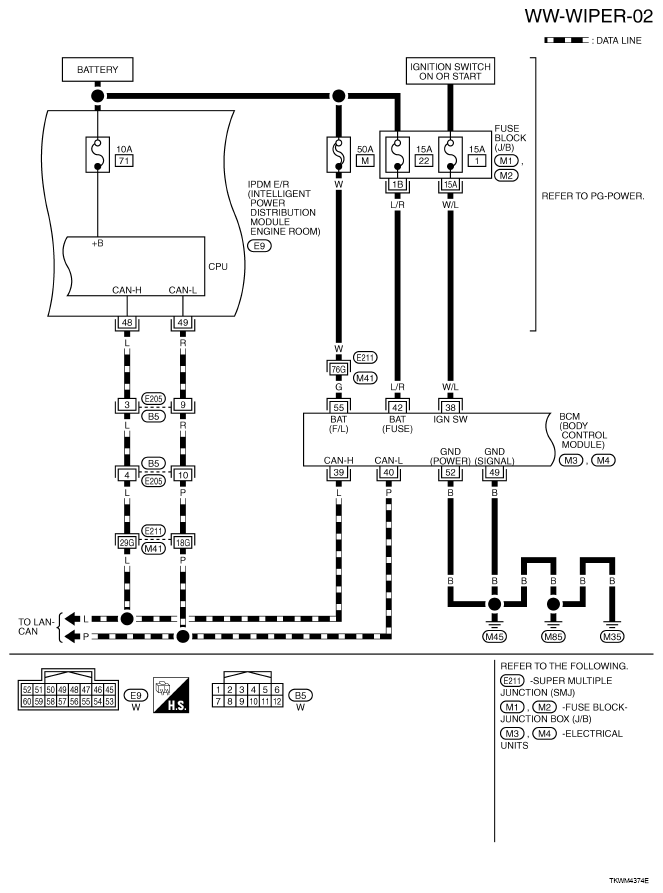

Fig 2: Identifying WW-WIPER-02 - Wiring Diagram
G05222500Courtesy of NISSAN MOTOR CO., U.S.A.

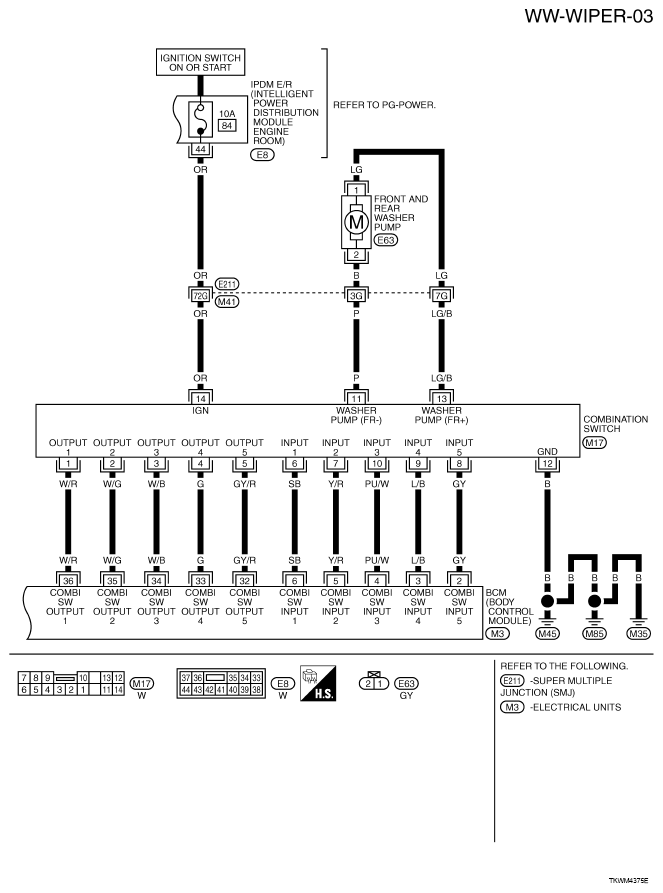

Fig 3: Identifying WW-WIPER-03 - Wiring Diagram
G05222501Courtesy of NISSAN MOTOR CO., U.S.A.
