Wiring Diagram - P/SCKT -

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

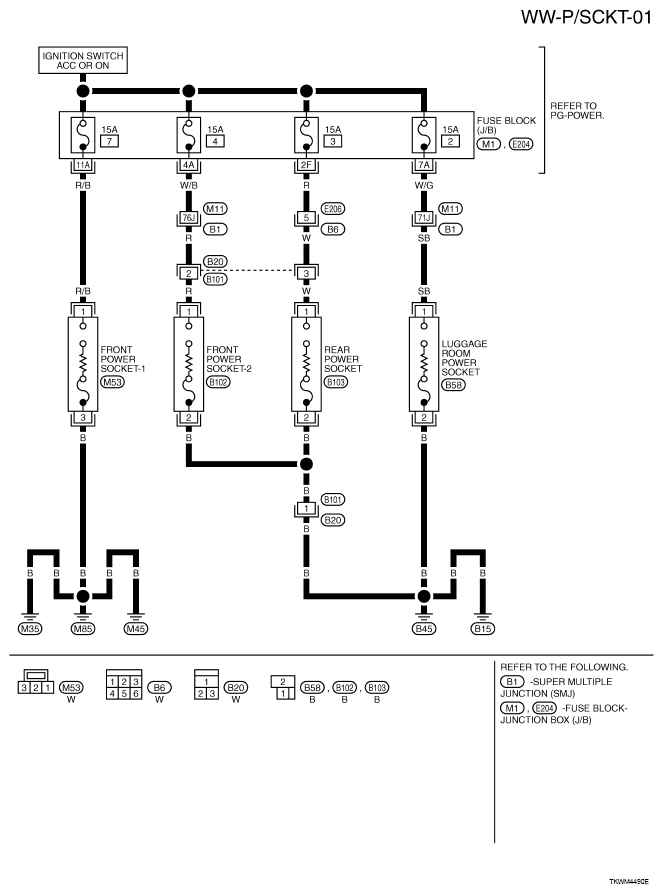

Fig 1: Identifying WW-P/SCKT-01 - Wiring Diagram

G05222591

Courtesy of NISSAN MOTOR CO., U.S.A.
