Wiring Diagram - HORN -

Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .

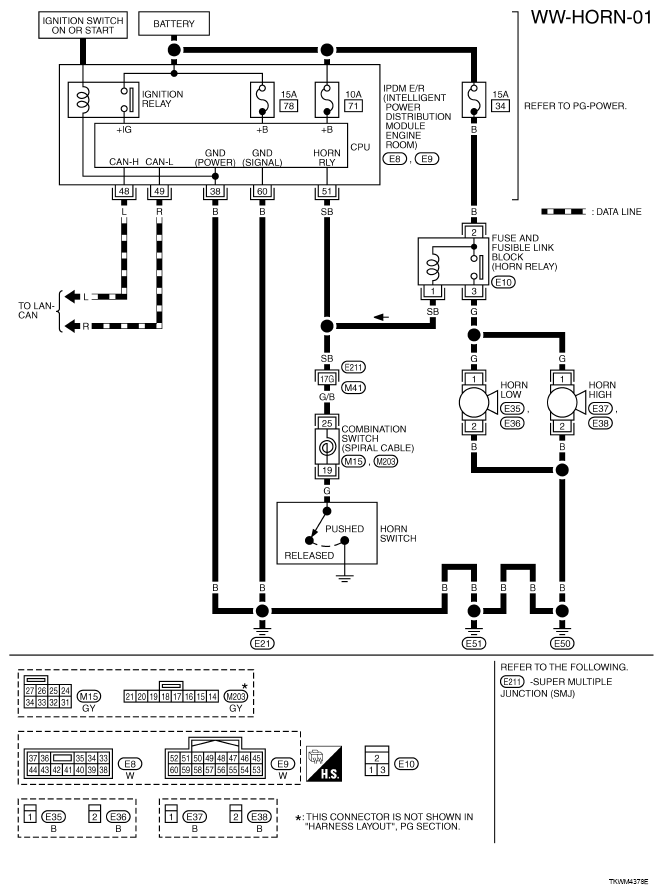

Fig 1: Identifying WW-HORN-01 - Wiring Diagram
G05222596Courtesy of NISSAN MOTOR CO., U.S.A.
