Removal of Center Ventilator Grilles

  1. Remove cluster lid C. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove mounting screw and clips, and then remove center ventilator grilles (left and right).

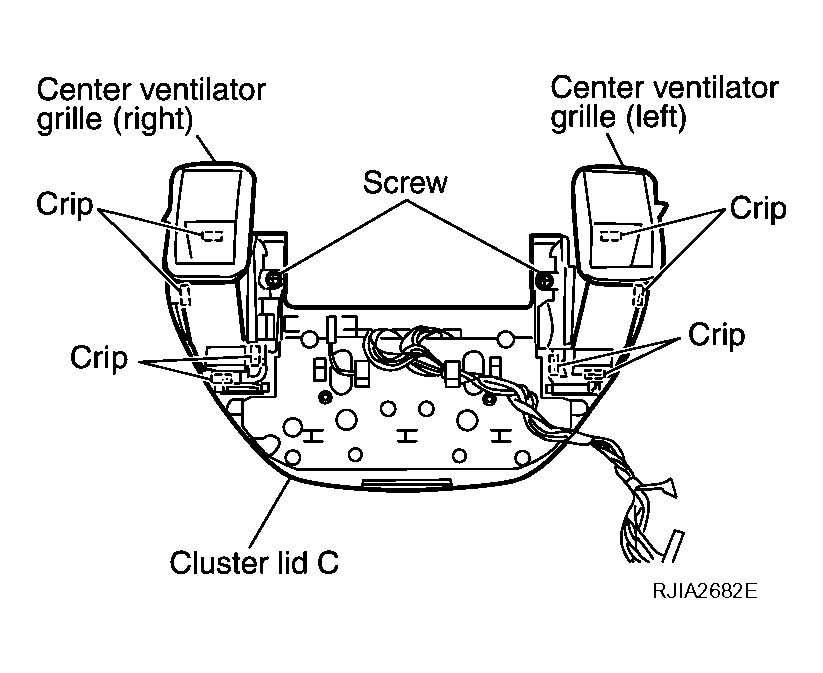

    Fig 1: Locating Center Ventilator Grilles
    G04130645Courtesy of NISSAN MOTOR CO., U.S.A.
