Removal and Installation: Removal

  1. Remove console box assembly. Refer to "WORK STEPS ".
  2. Disconnect power socket connector.
  3. Remove inner socket and socket from console finisher while pressing hook on inner socket.
  4. Remove socket from inner socket while pressing hook.

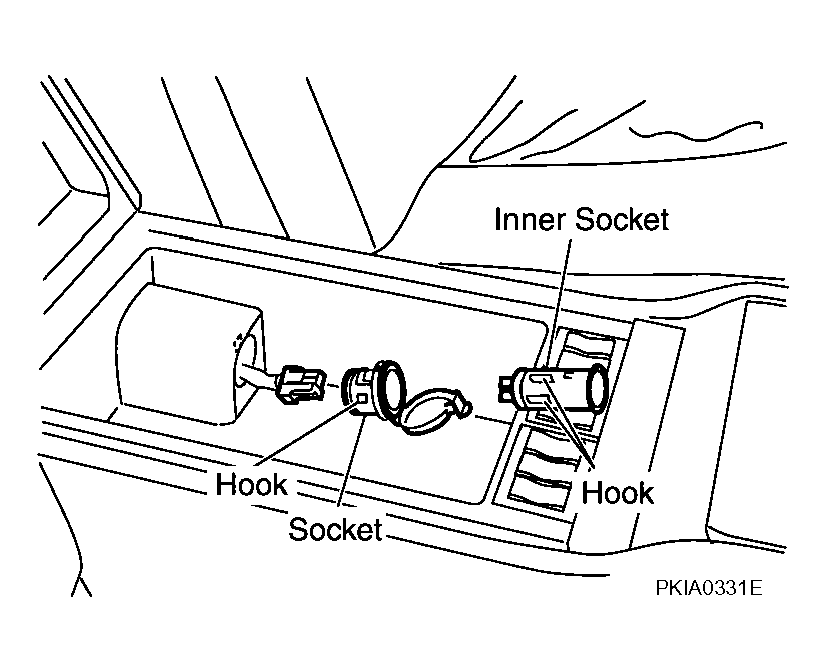

    Fig 1: Identifying Inner Socket
    G04131412Courtesy of NISSAN MOTOR CO., U.S.A.
