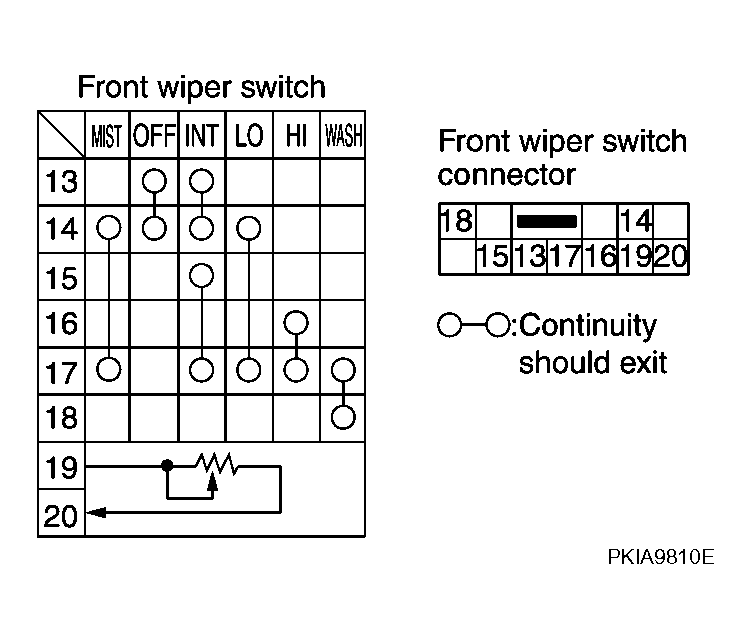

Front Wiper Switch Circuit
Check continuity between each terminal when front wiper switch is operating using a circuit tester.
FRONT WIPER SWITCH INSPECTION
| Operation interval (intermittent wiper with vehicle speed detection function) |
Resistance value (kΩ) |
|---|---|
| 1 [Interval (Long)] | Approx. 1 |
| 2 | Approx. 0.6 |
| 3 | Approx. 0.3 |
| 4 [Interval (Short)] | Approx. 0 |
