Component Parts and Harness Connector Location
Component Parts and Harness Connector Location

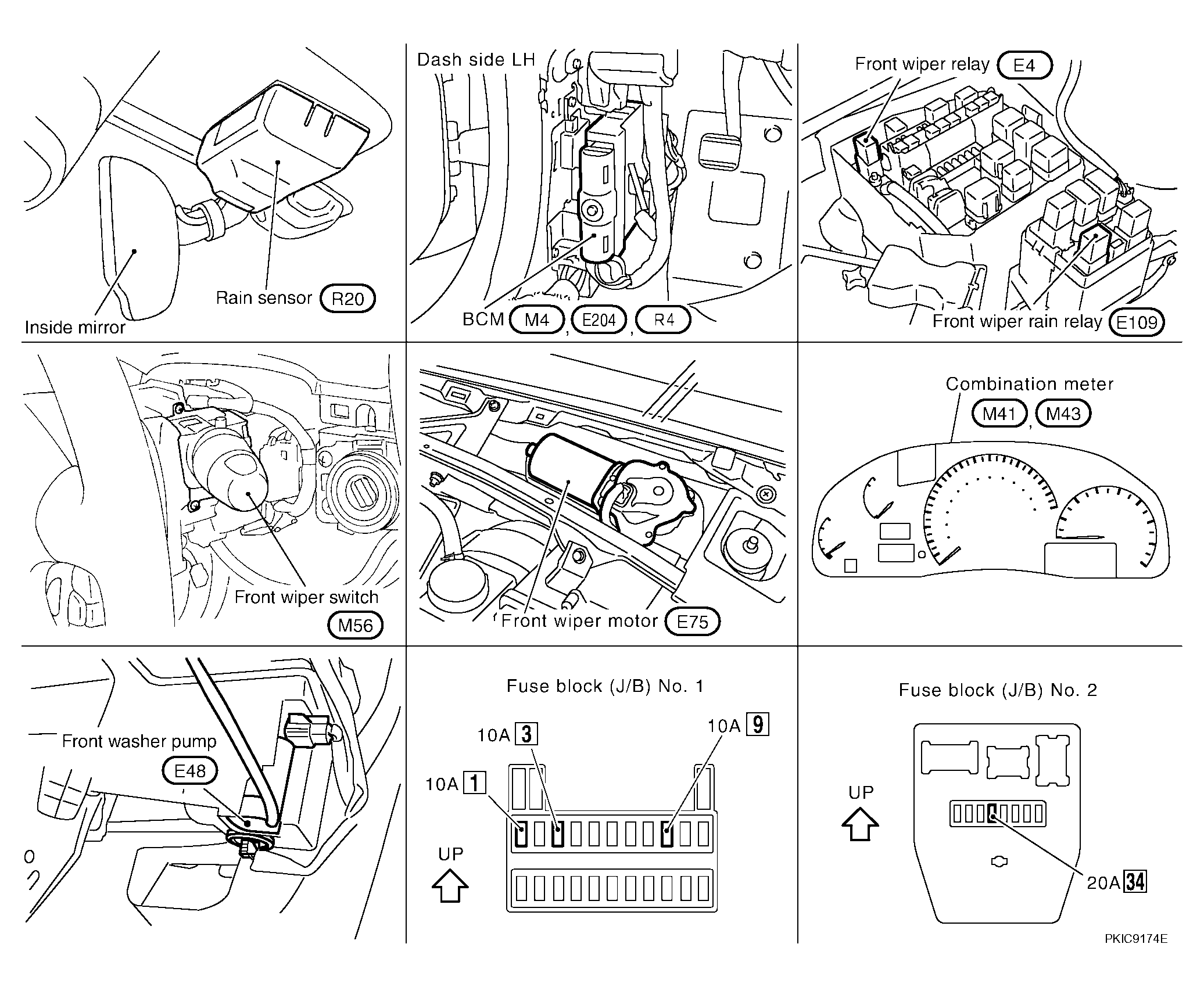

Fig 1: Identifying Front Wiper And Washer System (With Rain Sensor) Component Parts And Harness Connector Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
