Removal and Installation: Removal

  1. Remove A/T console finisher. Refer to "WORK STEPS ".
  2. Pull out cigarette lighter.
  3. Remove socket.
  4. Press out ring from the back of ashtray.

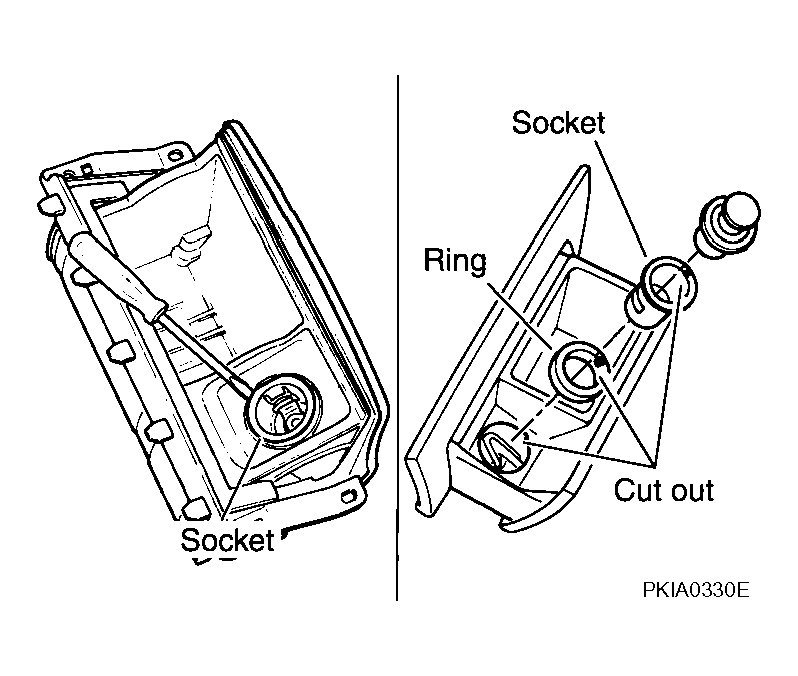

    Fig 1: Identifying Socket
    G04131410Courtesy of NISSAN MOTOR CO., U.S.A.
