(Z) Instrument Panel

  1. Remove ignition key lamp, remove screws, and remove instrument panel bracket.
  2. Remove bolts, and lower steering column.

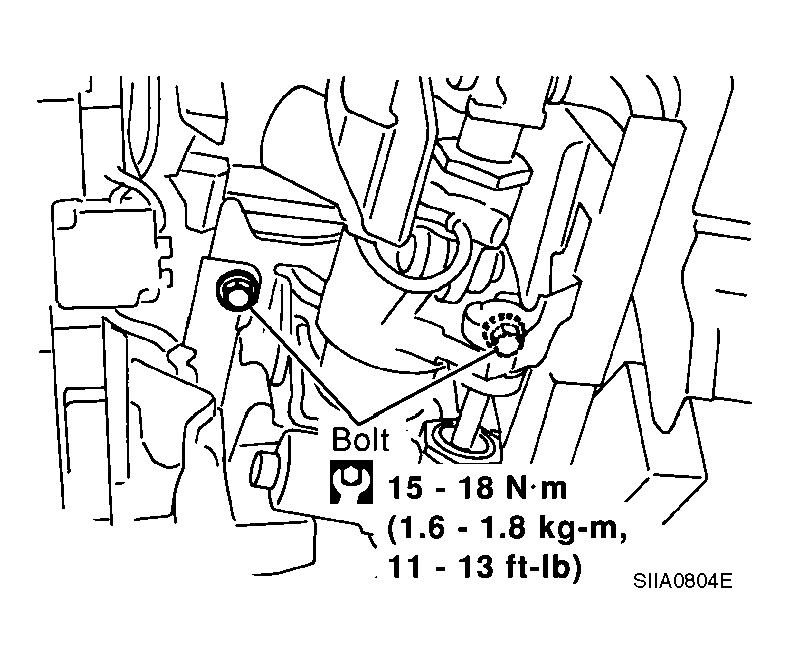

    Fig 1: Removing Bolts Of Lower Steering Column
    G04130075Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove bolts, nuts and screws securing instrument panel with power tool, and remove instrument panel.
    CAUTION:
    • To install, confirm locating pins on back of instrument panel are completely inserted into holes on vehicle.
    • Do not leave harness stuck when installing.
