Home >> Infiniti >> 2006 >> Q45 >> Repair and Diagnosis >> Electrical >> Gauges >> Instrument Panel >> Instrument Panel Assembly >> Removal and Installation >> Removal >> (K) Ashtray

(K) Ashtray

  1. Remove screws with power tool, pull ashtray back to your side, and disconnect metal clips.
  2. Disconnect connectors, and remove ashtray.

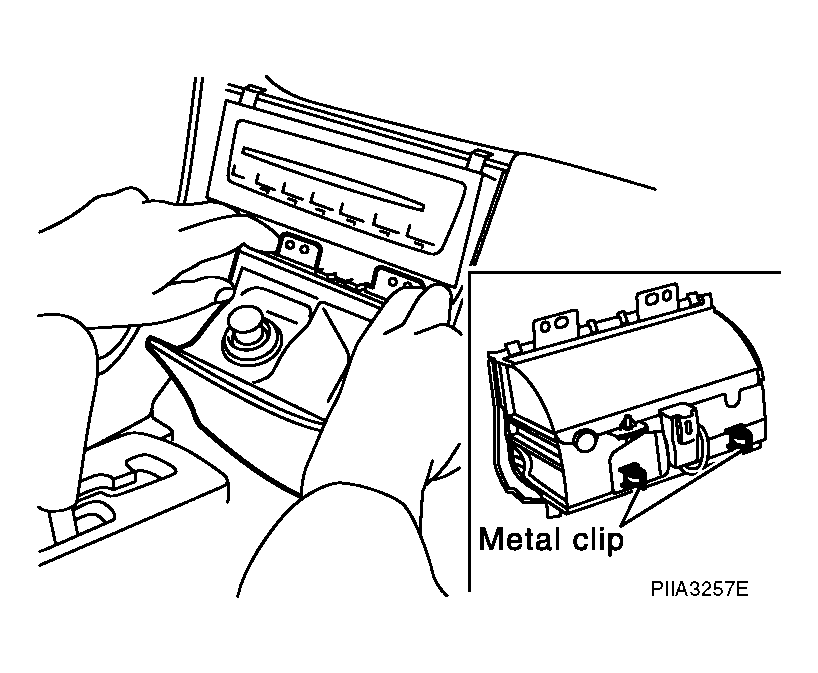

    Fig 1: Removing Ashtray
    G04130067Courtesy of NISSAN MOTOR CO., U.S.A.
