(F) Cluster Lid C

  1. Remove ventilation mask, and remove screws with power tool.
    Fig 1: Removing Screws With Power Tool
    G04130062Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Insert a cloth-covered screwdriver, or thin spatula into dip between instrument panel, pull cluster lid C back to your side, and disengage metal clips below.

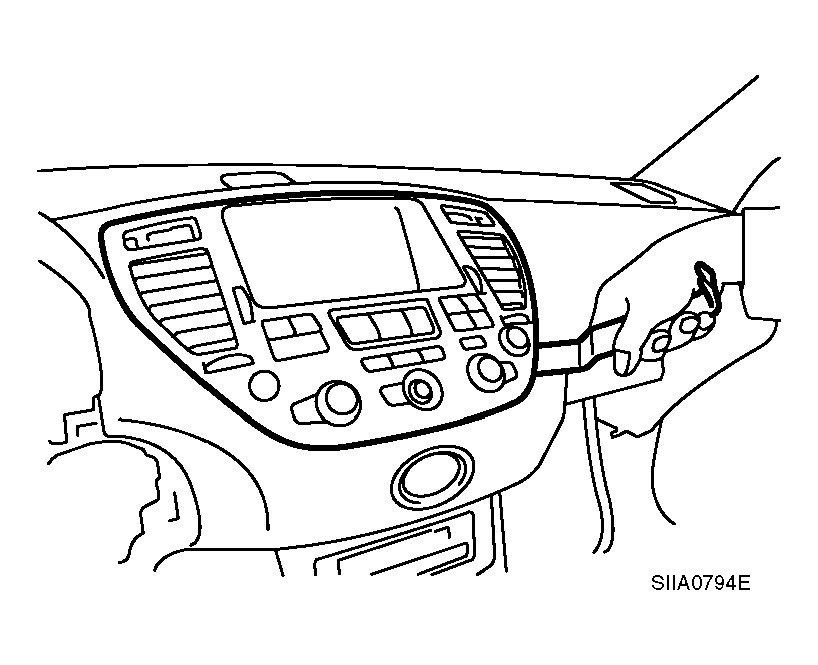

    Fig 2: Inserting A Cloth-Covered Screwdriver
    G04130063Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Disconnect connectors, and remove cluster lid C.
    CAUTION: Cover surroundings with cloth to avoid scratches or damages.
