(E) Combination Meter

  1. Remove screws with power tool, and disconnect connectors.
  2. Turn to right part of meter come to your side. Push down to front face of meter up.

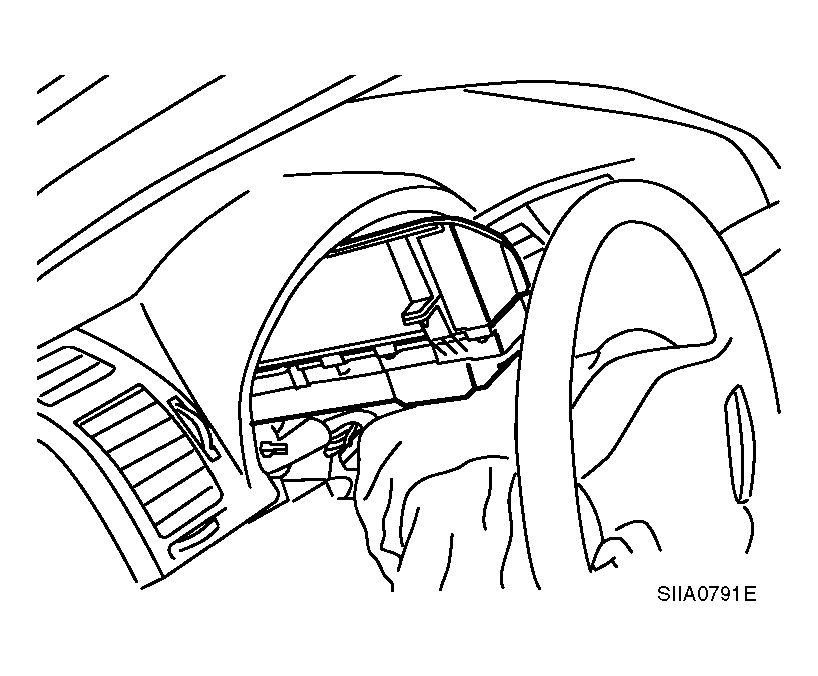

    Fig 1: Pushing Down To Front Face Of Meter Up
    G04130060Courtesy of NISSAN MOTOR CO., U.S.A.
    CAUTION: Cover meter with cloth avoid contact with meter bracket that may cause scratches or damages.
  3. Pull meter to your side, then left side (confirm the back of meter faces you).

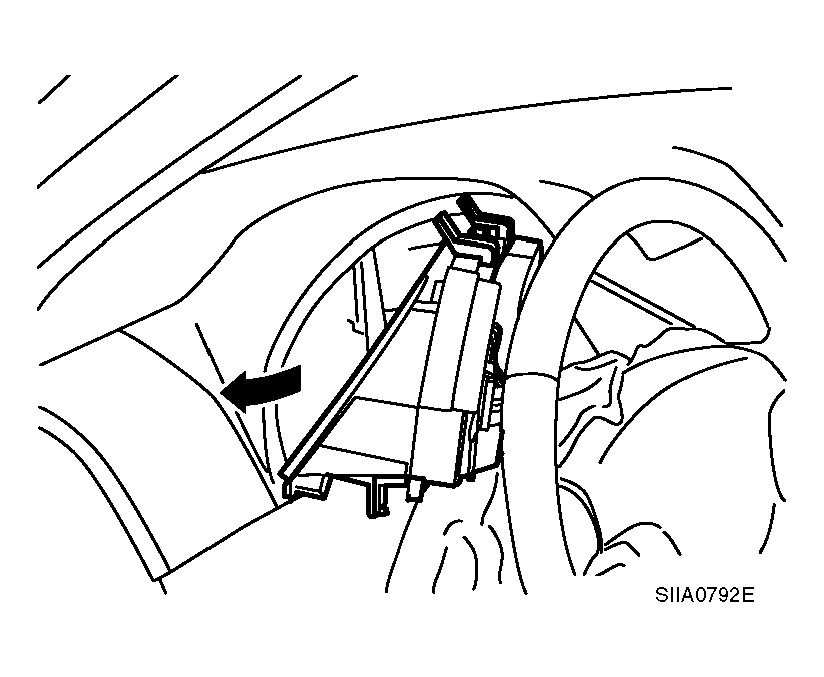

    Fig 2: Pulling Meter
    G04130061Courtesy of NISSAN MOTOR CO., U.S.A.
