(D) Cluster Lid A

  1. Remove screws with power tool.
  2. Pull cluster lid A back to your side, and disconnect metal clips.

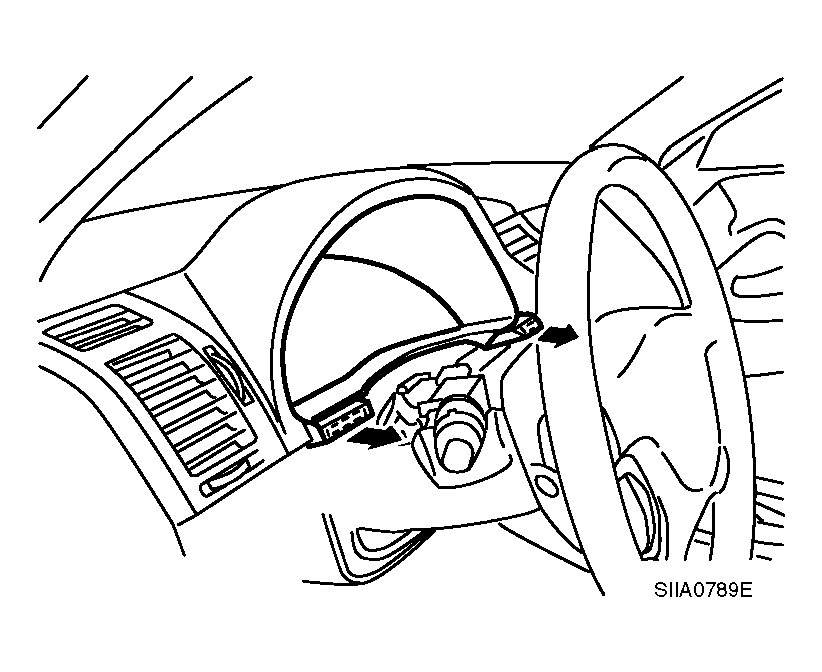

    Fig 1: Pulling Cluster Lid
    G04130058Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Make upper and lower side of cluster lid A narrower, and pull it back to your side.
  4. Remove it as covering steering wheel.
    Fig 2: Identifying Steering Wheel
    G04130059Courtesy of NISSAN MOTOR CO., U.S.A.
