(C) Cluster Lid D

Pull cluster lid D back to your side, disconnect metal clips and connectors, and remove it.

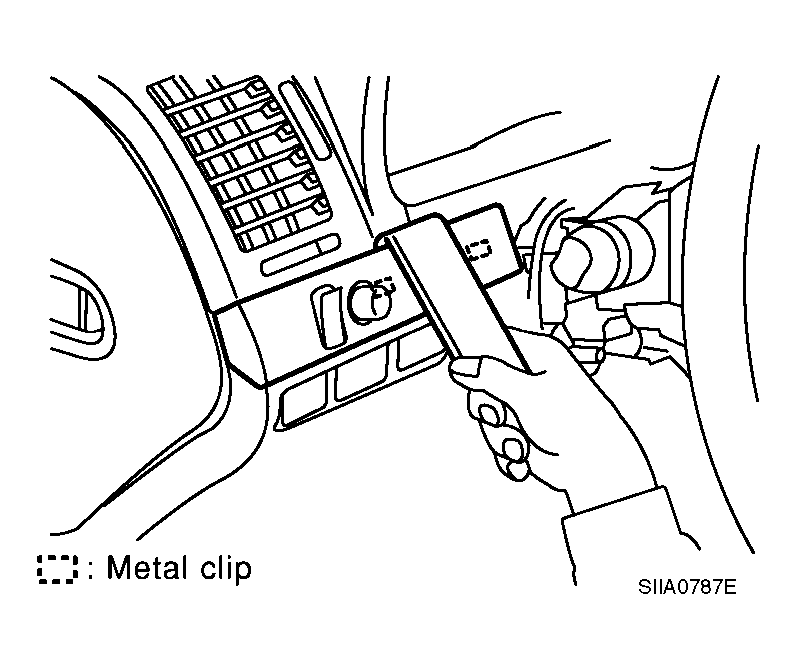

Fig 1: Disconnecting Metal Clips And Connectors

G04130057

Courtesy of NISSAN MOTOR CO., U.S.A.
