(X) Instrument Panel Mask (LH/RH)

Insert cloth-covered screw driver into gaps between instrument panel mask and instrument panel, lift instrument mask up, and remove instrument panel mask.

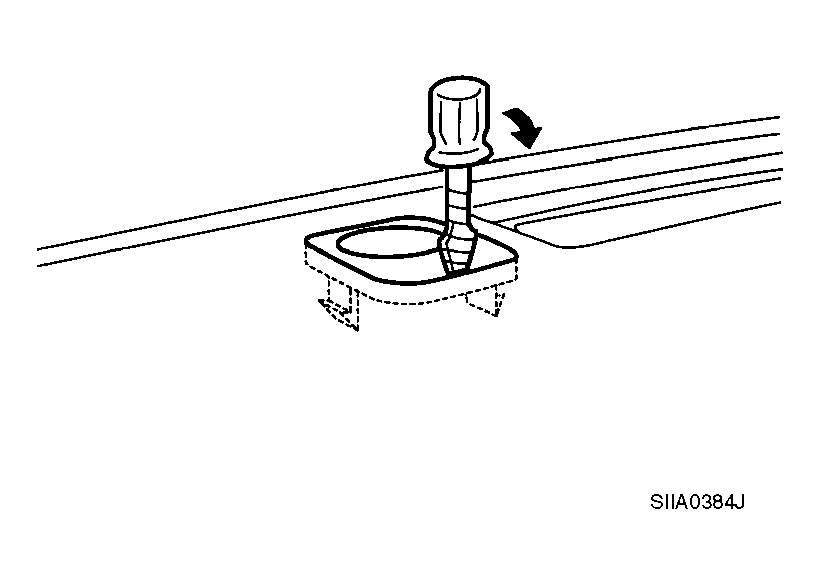

Fig 1: Inserting Cloth-Covered Screw Driver Into Gaps Between Instrument Panel Mask And Instrument Panel
G04130074Courtesy of NISSAN MOTOR CO., U.S.A.
